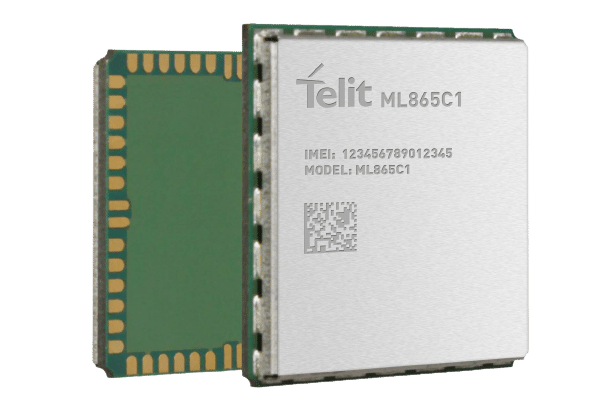

ML865C1

LTE Cat M1/NB1 | GSM/GPRS Fallback, GNSS (Optional) | Telit OneEdge™

The ML865C1 is the Category (Cat) M1/NB1 evolution in the widely deployed Telit xL865 product family. Specified in Release (Rel) 13 of the 3GPP standard, LTE Cat M1/NB1 is specifically tailored for IoT applications, offering optimized power consumption and enhanced coverage.

  • Design once and deploy globally, thanks to the xL865 form factor family
  • Compact VQFN package is ideally suited for low-profile integrated solutions, limited real estate application boards, reducing cost in high-volume applications, as well as saving space and weight in portable devices
  • Perfect platform for regional IoT applications such as smart metering, security and surveillance, point of sale, health monitoring, fleet management, asset tracking and wearable devices
  • LTE UE Cat M1/NB1 compliant to the latest 3GPP Rel 13 enhanced machine-type communication
Contact Us
The Telit ML-4541 is displayed on a white background featuring LTE Cat M1 connectivity.
Overview
Tech Specs
Downloads
Related Products
Product Comparison
Product Brief

Product Description

The ML865C1 is the Cat M1/NB1 evolution in the widely deployed Telit xL865 product family. Specified in Rel 13 of the 3GPP standard, LTE Cat M1/NB1 is specifically tailored for IoT applications, offering optimized power consumption and enhanced coverage. In addition, with its square 24.4 x 24.4 mm VQFN footprint, the ML865C1 is designed for size-sensitive applications.

Form Factor Family

The Telit Cinterion xL865 family addresses system integrators and IoT device developers needing a low-volume-friendly mounting solution (LCC castellation — not available across all members of the family) as well as those running high-volume automated pick-and-place (VQFN) assembly. The compact 24.4 mm x 24.4 mm package allows integration of single or combinations of cellular, short-range wireless, and positioning capabilities into small IoT devices.

Overview

Product Features

  • LTE UE Cat M1/NB1
  • Single Rx, single antenna
  • Half duplex FDD
  • Control via AT commands according to 3GPP TS27.005, 27.007 and customized AT commands
  • SMS

Certifications

  • ML865C1-EA
  • RED, GCF, Deutsche Telekom, Anatel
  • ML865C1-NA
  • FCC/IC, GCF, PTCRB, Verizon, AT&T
  • Compact dimensions 24.4 x 24.4 x 2.6 mm
  • Compact VQFN pack
  • Extended temperature range: -40° C to +85° C

Supply Voltage

  • Nominal: 3.8 V dc
  • Telit application development environment: AppZone C
  • 3GPP Rel 13 compliant
  • 3GPP Rel 12 Power Saving Mode (PSM)
  • 3GPP Rel 13 extended Discontinuous Reception (eDRX)
  • 3GPP Rel 13 extended coverage
  • Drivers: Windows 10, Linux, Android 10 and 11 RIL
User Guides, Documentation, Application Notes and Firmware
Register for Downloads Access Downloads

Related Products

Product Comparison

ModelMarketM1/NB1 SupportFrequenciesFrequenciesApprovals
4G bands (MHz)2G bands (MHz)
ML865C1-EAEurope LATAMDual mode M1&NB1 + 2GB3(1800), B5(850), B8(900), B20(800), B28(700)B2(1900), B3(1800), B5(850), B8(900)RED, GCF Deutsche Telekom, Anatel
