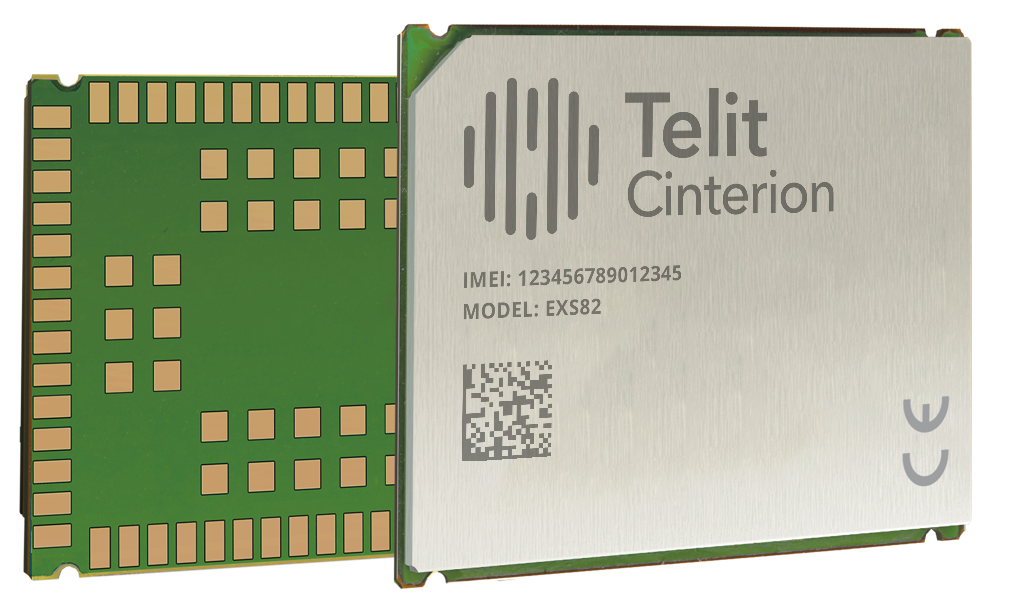

EXS82

Global MTC Module (LTE Cat.M/NB/2G)

Cinterion® EXS82-W Wireless IoT Module is driving LTE evolution to 5G, enabling Low Power Wide Area (LPWA) connectivity for billions of new industrial applications.

  • LTE-M NB-IoT 2G
  • Incremental FOTA Updates
  • Embedded Processing

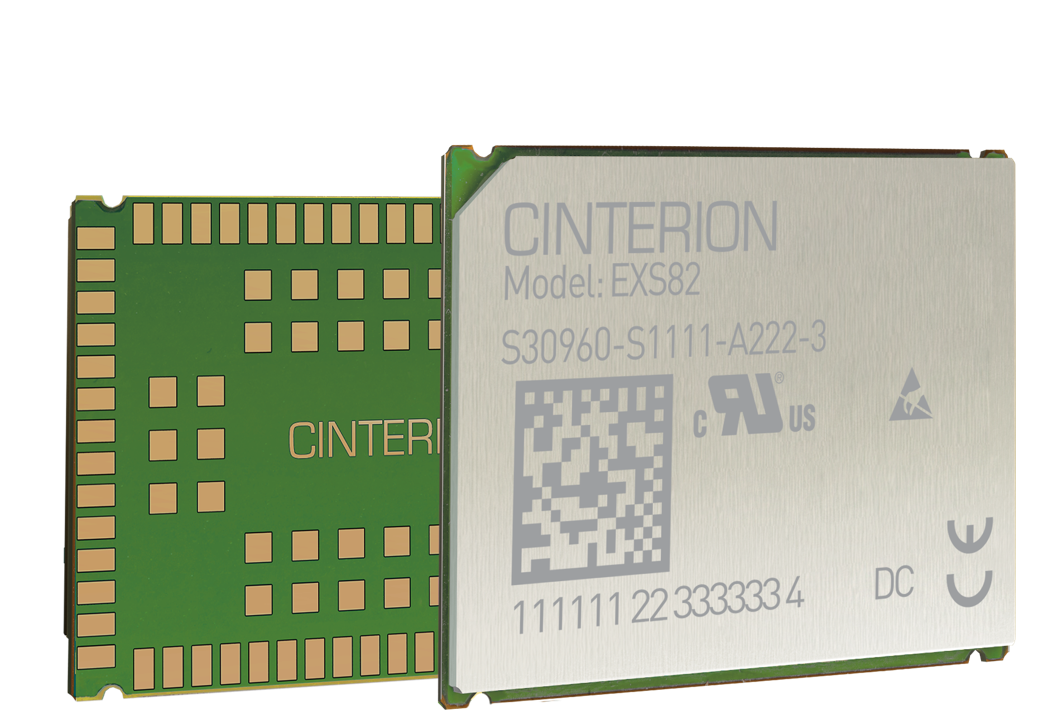

Telit-Cinterion_EXS82_dynamic

Product Description

The innovative Telit Cinterion platform leverages Qualcomm’s MDM9205 Modem and the mature LTE ecosystem to deliver global LTE-M and NB-IoT connectivity with 2G fallback to cover scenarios where LTE-M and/or NB-IoT are not yet available. Ready for 3GPP Rel 14 and 5G, the tiny IoT modules share the same footprint as all Telit Cinterion Industrial devices to ensure ease of migration.

  • Global Cat.M1/Cat.NB1/NB2/2G
  • UART / USB 2.0
  • GNSS
  • ThreadX Embedded Processing
  • eSIM – Remote Provisioning
  • Embedded IP Stack
  • Advanced Power Management System
  • Secure Cloud Enrollment
  • State of the Art Security

Form Factor Family

  • Multi Design Capability (LGA)
  • Industrial Footprint
  • 27.6 x 18.8 x 2.3mm

Overview

Product Features

  • FDD-LTE Bands 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 27, 28, 66, 71, 85.
  • Quad-Band GSM: 850, 900, 1800 and 1900 MHz (*)
  • Integrated GNSS support (GPS/BeiDou/Galileo/GLONASS)
  • Compatible with Cinterion® Industrial module footprint
  • SIM Application Toolkit with BIP
  • Control via standardized commands (Hayes, TS 27.007 and 27.005) and Cinterion® AT commands
  • Embedded IPv4 and IPv6 TCP/IP stack access via AT command, provides: TCP/UDP Client, UDP Endpoint, TCP Listener, HTTP client, FTP client, MQTT client, NTP service,
    CoAP Client
  • Secure Connection with TLS/DTLS

Specifications

  • 3GPP Rel.14 Compliant Protocol
  • LTE Power Class 5 (20 dBm)
  • LTE Cat.M1 DL: max. 300 kbps, UL: max. 1.1 Mbps
  • LTE Cat.NB1 DL: max. 27 kbps, UL: max. 63 kbps
  • LTE Cat.NB2 DL: max.124 kbps, UL: max. 158 kbps
  • E/GPRS Class 10 *)
  • SMS support (via NAS, via GSM)

*EXS 82 only

Certifications

  • RED, GCF, CE, FCC, PTCRB, IC, UL, CCC, IFETEL, UKCA,
  • Anatel, JATE, TELEC,AT&T (Firstnet), Verizon, Telstra, NTT Docomo, KDDI, T-Mobile (-X)

Dimension:

27.6 x 18.8 x 2.3 mm

Supply voltage range:

2.6-4.8 V

Weight:

approx. 2.5 g

Operating temperature-40°C to +90°C

Interfaces

  • Pads for primary LTE antenna and GNSS antenna
  • 2 high-speed serial interface
  • USB 2.0 interface
  • UICC and U/SIM card interface 1.8V
  • SPI, I2C, PWM signal line
  • ADC, GPIO
  • eSIM Remote Provisioning** (IoT Connectivity Activation)
  • Firmware updatable via interface and Over the Air (OTA) / incremental FOTA
  • LWM2M support with Cinterion IoT Suite
  • eDRx: 81.92s <0.77mA, and PSM 4.5µA
  • Advanced Security
  • Embedded Processing

** included in future firmware version

  • Driver for Windows® 7 / Windows® 8 / Windows 10
  • Driver for Linux
