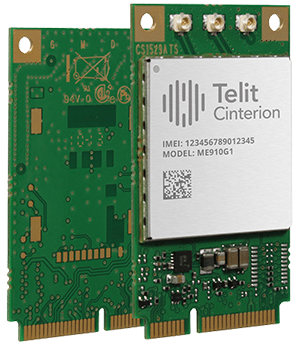

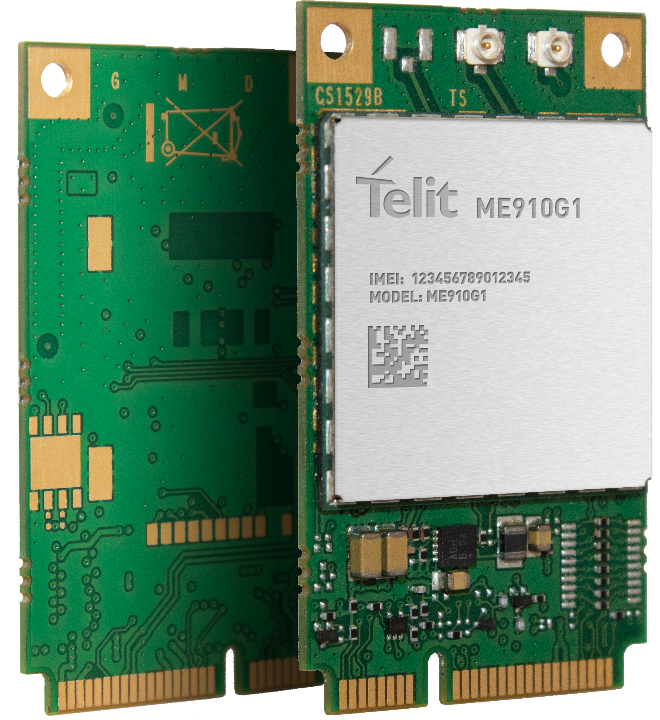

ME910G1 mPCIe Series

Cat M1/NB2 | Data Cards

The ME910G1 series modules are interchangeable with other modules in the xE910 mPCIe family. The ME910G1 series mini PCIe (mPCIe) modules are optimized for Release (Rel) 14 LTE-M and NB-IoT networks and are available with 2G fallback options.

  • Standard mini PCIe data card form factor
  • Best-in-class 3GPP Rel 14 platform
  • Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user-definable GPIOs
  • Battery-friendly 1.8 V GPIO
  • Internet friendly with integrated TCP/IP and UDP/IP stacks
ME910G1_mPCIe

Product Description

The ME910G1 series mini PCIe (mPCIe) modules are optimized for Rel 14 LTE-M and NB-IoT networks and available with 2G fallback options. The ME910G1 series modules are interchangeable with other modules in the xE910 mPCIe family.

Form Factor Family

Conforming to specifications from the Peripheral Component Interconnect Special Interest Group (PCI-SIG) electronics industry consortium, Telit mini PCIe are 52-pin, single-sided, full-size mini cards on a 50.95mm x 30 mm edge-connected board.

Overview

Product Features

  • LTE UE Cat M1/NB2
  • 3GPP Rel 14 compliant
  • Half-duplex FDD
  • Single Rx, single antenna
  • 3GPP Rel 12 PSM
  • 3GPP Rel 13 eDRX
  • 3GPP Rel 13 extended coverage
  • Control via AT commands according to 3GPP TS 27.005, 27.007 and customized AT commands
  • SIM application tool kit 3GPP TS 51.01 SMS
  • IPv4/IPv6 stack with TCP and UDP protocol

Certifications

  • REACH and RoHS compliant

Environmental

  • Dimensions 51 x 30 x 3.2 mm
  • mini PCIe (mPCIe) module
  • Temperature range: -40° C to +85° C

Supply Voltage

  • Nominal: 3.3 V dc
User Guides, Documentation, Application Notes and Firmware
Market Worldwide
4G Bands (MHz)
B1, B2, B3, B4, B5, B8, B8_US**, B12,B13, B18, B19, B20, B25, B26, B27, B28,B66, B71, B85, B86**
2G Bands (MHz)B2, B3, B5, B8
ApprovalsPTCRB, GCF, FCC/IC, RED, ANATEL, RCM, JATE/TELEC, KC, CCC, SRRC, NCC,IMDA, AT&T, FirstNet, Verizon, Sprint,
T-Mobile US, TELSTRA, SKT, NTT DOCOMO, KDDI, Deutsche Telecom
** Available only on dedicated ordering code
