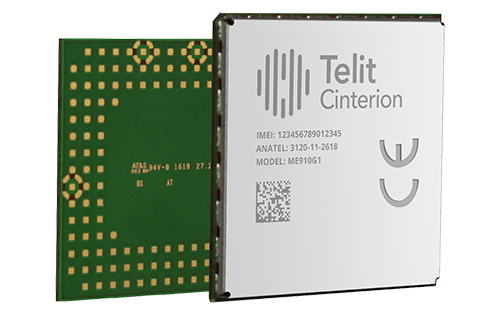

ME910G1 Series

LTE Cat M1/NB2 | GSM/GPRS Fallback, GNSS | Telit OneEdge™

The ME910G1 is the Category (Cat) M1/NB2 evolution of the flagship Telit Cinterion xE910 product family.

Cat M1/NB2 devices are specifically tailored for low-data throughput IoT applications, exceeding market demands for optimized power consumption and enhanced quality of coverage.

  • Design once and deploy globally with the xE910 form factor family
  • An ideal solution for global IoT applications such as smart metering, security and surveillance, point of sale, health monitoring, fleet management, asset tracking and wearables
  • Compliant to 3GPP Rel 14 Cat M1/NB2, tailored for IoT devices
  • Global SKU with optional 2G fallback and future support for non-terrestrial networks (NTN)
TC_ME910G1

Product Description

The ME910G1 is the Category M1/NB2 evolution of the flagship Telit Cinterion xE910 product family.

Cat M1/NB2 devices are specifically tailored for low-data throughput IoT applications, exceeding market demands for optimized power consumption and enhanced quality of coverage.

Compliant with 3GPP Rel 14, the ME910G1 LTE UE Cat M1/NB2 module enables increased power saving for IoT applications using Power Saving Mode (PSM) and extended Discontinuous Reception (eDRX). LTE Cat M1/NB2 devices are optimized in cost, size and power consumption compared to higher UE categories.

Form Factor Family

The xE910 28.2 x 28.2 x 2.2 mm LGA form factor is Telit Cinterion’s broadest. It is comprised of models in cellular technologies spanning 2G, 3G, 4G, 3GPP and 3GPP2, supporting optional positioning capabilities in certain models. All form factor family members share basic pinouts, electrical (supply power may vary, check mode specification) and programing interfaces allowing developers to implement a “design once, use anywhere” strategy.

Overview

  • LTE: bands: B1,B2, B4, B5, B8, B8_US, B12, B13, B18, B19, B25, B26, B27, B28, B66, B71, B85(ME910G1-W1/WW)
  • LTE Bands: B1, B2, B3, B4 ,B5, B8, B8_US, B12, B13, B14, B18, B19, B20, B25, B26, B27, B28, B66, B85 ( ME910G1-W3)
  • 2G Bands: B2, B3, B5, B8 ( ME910G1-WW)
  • PSM, eDRX, Extended Coverage
  • Control via AT commands according to 3GPP TS 27.005, 27.007 and customized Telit AT commands
  • SIM application tool kit 3GPP TS 51.01
  • SMS over NAS
  • IPv4/IPv6 stack with TCP and UDP protocol
  • Embedded GNSS (GPS, GLONASS, Beidou, Galileo)
  • OMA Lightweight M2M (LwM2M)
  • Firmware Over-the-Air update (FOTA) using delta upgrade techniques

ME910G1-W1

FCC/IC, RED, UKCA, Anatel, Ifetel, GCF, PTCRB, AT&T, FirstNet, Verizon, Sprint, T-Mobile US, Deutsche Telekom, Rogers

ME910G1-WW

FCC/IC, RED, UKCA, GCF, PTCRB, ANATEL, Ifetel, RCM, JATE/TELEC, KC, CCC, SRRC, NCC, IMDA, AT&T, FirstNet, Verizon, Sprint, T-Mobile US, TELSTRA, SKT, NTT DOCOMO, KDDI, Deutsche Telekom, Rogers, Spark



ME910G1-W3

FCC/IC, GCF, RED, UKCA, PTCRB, AT&T, FirstNet, Verizon



  • Dimensions: 28.2 x 28.2 x 2.2 mm
  • LGA form factor
  • Operating & Extended temperature range: -40 °C to +85 °C

Supply Voltage

  • Nominal: 3.8 V dc
  • Operating Voltage Range: 3.2–4.2 V
  • Extended Voltage Range: 2.6–4.5 V
  • Telit application development environment: AppZone C
  • 3GPP Rel 12 PSM
  • 3GPP Rel 13 eDRX
  • 3GPP Rel 13 extended coverage
  • Telit OneEdge
  • Firmware over-the-air (FOTA) update using delta upgrade techniques
  • Drivers: Windows 10, Linux, Android 10 and 11 RIL
User Guides, Documentation, Application Notes, and Firmware

Product Comparison

*In process ** Available only on dedicated ordering code

ME910G1-W1ME910G1-WWME910G1-W3
MarketWorldwideWorldwideWorldwide
LTE-M/NB-IoTDual Mode LTE-M/NB-IoTDual Mode LTE-M/NB-IoTLTE-M only
4G BandsB1, B2, B3, B4, B5, B8, B8_US**, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B71, B85B1, B2, B3, B4, B5, B8, B8_US**, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B71, B85B1, B2, B3, B4, B5, B8, B8_US, B12, B13, B14, B18, B19, B20, B25, B26, B27, B28, B66, B85
2G BandsB2, B3, B5, B8
Output PowerLTE: 21 dBm (Power Class 5)LTE: 23 dBm (Power Class 3) 33 dBm (Power Clas
GSM/GPRS: s 4)
LTE: 23 dBm (Power Class 3)
ApprovalsFCC/IC, RED, UKCA, Anatel, Ifetel, GCF, PTCRB, AT&T, FirstNet, Verizon, Sprint, T-Mobile US, Deutsche Telekom, RogersFCC/IC, RED, UKCA, GCF, PTCRB, ANATEL, Ifetel, RCM, JATE/TELEC, KC, CCC, SRRC, NCC, IMDA, AT&T, FirstNet, Verizon, Sprint, T-Mobile US, TELSTRA, SKT, NTT DOCOMO, KDDI, Deutsche Telekom, Rogers, SparkFCC/IC, GCF, RED, UKCA, PTCRB, AT&T, FirstNet, Verizon
VoiceNoNoNo
*In process
** Available only on dedicated ordering code
