TX62

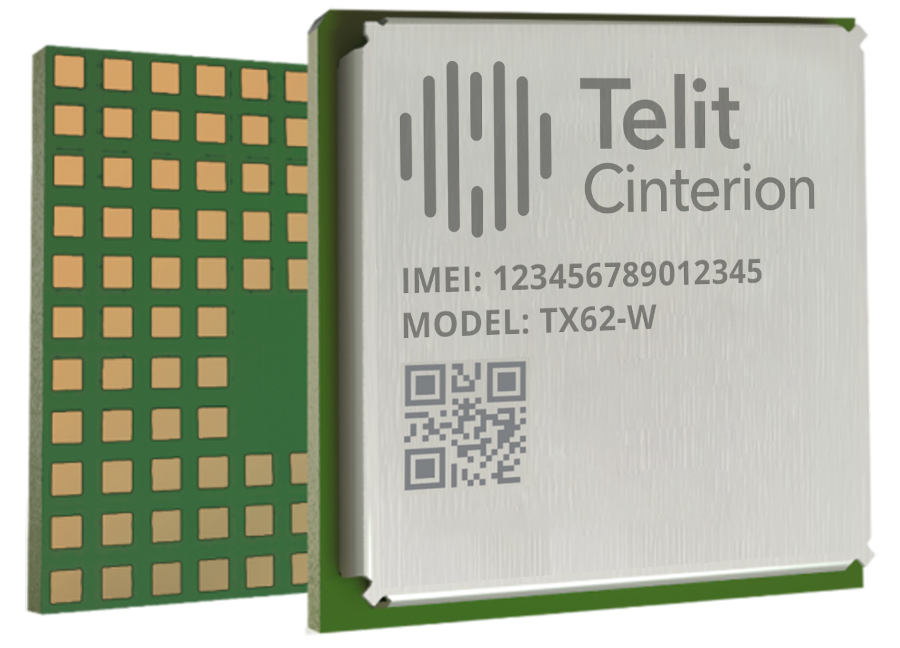

TX62 Global MTC Module (LTE Cat.M/NB)

The TX62 Wireless IoT Module accelerates the evolution of LTE to 5G by enabling LPWA connectivity for billions of new industrial applications via Cat. M and NB-IoT technologies. The TX62 IoT module introduces the new ‘Things’ footprint concept, especially developed for space-constrained applications which require a small size. With enhanced security and SIM, the platform is ideal for very small, battery-operated devices in remote locations, such as smart meters, asset trackers, healthcare apps, and wearables.

Multiple MTC Technologies for Global Connectivity:

  • 3GPP Rel.14 Cat.M1, Cat.NB1, Cat.NB2
  • Global LPWA from a single package
  • Supports 450 MHz bands
Contact Us
A microcontroller with a chip for enhanced performance and global connectivity capabilities.
Overview
Tech Specs
Downloads
Related Products
Product Brief

Product Description

Ultra Integrated for Lower Total Cost of Ownership
– Ultra integrated module featuring a processor to run your entire application – Embedded GNSS multi constellation (GPS, Galileo, Glonass, Beidou)

State of the Art Secure Services
– Pre-provisioned digital identities in the roof of device
– Embedded eSIM option
– Secure key store

Easy Connectivity and Lifecycle Management
– Secure enrollment into main cloud platforms including AWS IoT Core or Azure IoT Hub
– Remote update and device management

Form Factor Family

Breakthrough Things Footprint
– Compact form factor developed for the needs of small, battery-operated devices.
– Large surface pads for improved soldering and reduced SMT warpage
– Easy routing and optimized antenna position

Size:
– 15.3 x 15.3 x 2.9mm (TX62-W)
– 20.9 x 15.3 x 2.3mm (TX62-W-B)

Overview

Product Features

  • 3GPP Rel.14 Compliant Protocol
  • LTE Cat. M1/NB1/NB2
  • TX62-W: Power Class 20 dBm
    TX62-W-B: Power Class 23 dBm
    TX62-W-C: Power Class 23 dBm and 26 dBm1
  • Compatible with Cinterion® Things footprint
  • FDD-LTE Bands:
    TX62-W, TX62-W-B: Band 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 27, 28, 66, 71, 85
    TX62-W-C: Band 1, 3, 8, 20, 28 and 450 MHz band 31 and 72*
  • Data only
  • LTE Cat.M1
    DL: max. 300 kbps, UL: max. 1.1 Mbps
  • LTE Cat.NB1
    DL: max. 27 kbps, UL: max. 63 kbps
  • LTE Cat.NB2
    DL: max. 124 kbps, UL: max. 158 kbps
  • eDRX (0.8mA 81.92s eDRx and PSM 4.5µA)
  • Embedded IPv4 and IPv6 TCP/IP stack access via ATcommand and transparent TCP/UDP services
  • Internet Services: TCP server/client, UDP client, DNS, Ping, HTTP client, FTP client, MQTT client
  • Secure Connection with TLS/DTLS
  • Secure boot
  • Integrated GNSS support (GPS/BeiDou/Galileo/GLONASS
  • 2 High-speed 8 line serial interface
  • UICC and U/SIM card interface 1.8V (embedded MIM option)
  • SPI, I2C, PWM signal line, GPIO´s
  • ADC interface

*TX62-W-C has Bd 1,3, 8, 20, 28 (on 23dBm), and 450 MHz band 31 and 72 (on cat M at 26 dBm, and on cat NB at 23 dBm)

Certifications:

  • RED, GCF, FCC, PTCRB, IC, UL, CCC, IFETEL, UKCA, Anatel, JATE, TELEC
  • AT&T (Firstnet), Verizon, Telstra, NTT Docomo, KDDI
  • Dimension:
    TX62-W: 15.3 x 15.3 x 2.9mm
    TX62-W-B: 20.9 x 15.3 x 2.3mm
    TX62-W-C: 20.9 x 15.3 x 2.9mm
