ME910C1 Series

LTE Cat M1/NB1 | GSM/GPRS Fallback, GNSS (Optional) | Telit OneEdge™

The ME910C1 is the LTE UE Category (Cat) M1/NB1 specified in the 3GPP Release (Rel) 13. Cat M1/NB1 devices are specifically tailored for IoT applications, offering optimized power consumption and enhanced coverage.

  • Design once and deploy globally, thanks to the xE910 form factor family
  • The perfect platform for regional IoT applications, such as smart metering, security and surveillance, point of sale, health monitoring, fleet management, asset tracking and wearable devices
  • LTE UE Cat M1/NB1 compliant to the latest 3GPP Rel 13 enhanced machine-type communication (eMTC) and narrowband IoT (NB-IoT), specially designed for IoT use cases requiring minimum power consumption and extended coverage
ME910C1

Product Description

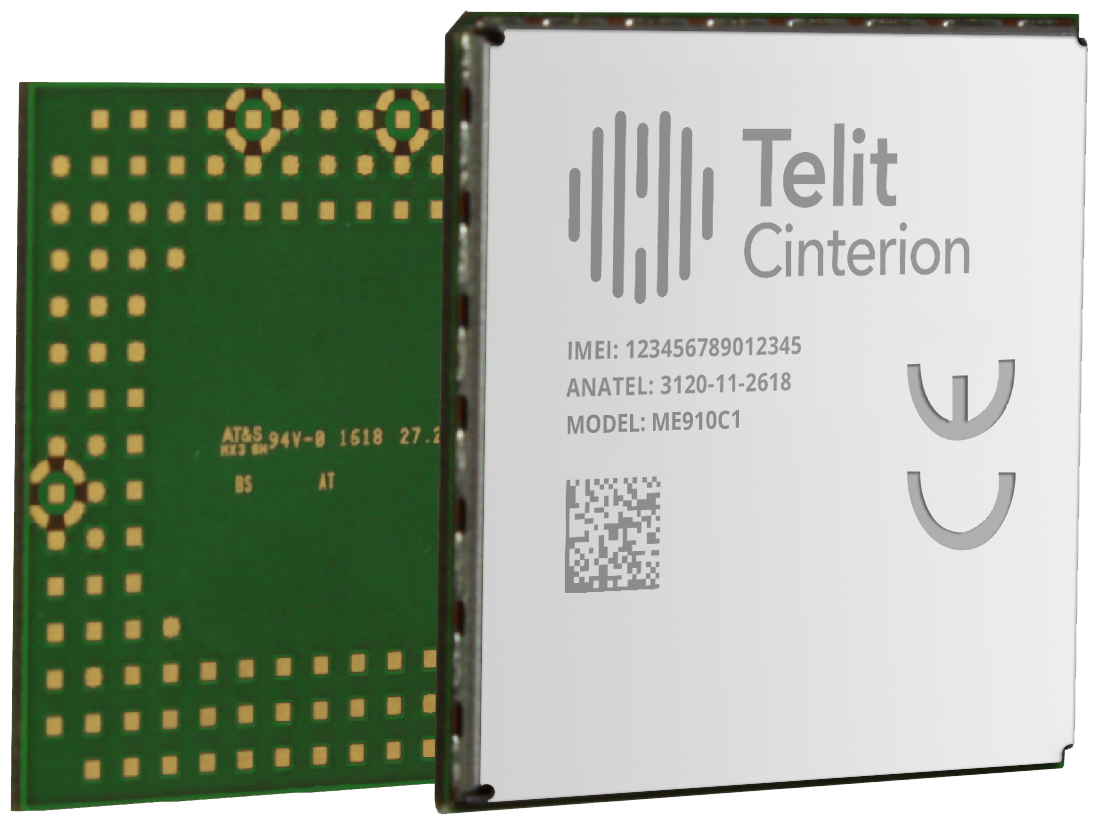

The ME910C1 is the LTE UE Cat M1/NB1 evolution of the Telit LE910 series of LTE modules. Specified in the 3GPP Rel 13, Cat M1/NB1 devices are specifically tailored for IoT applications, offering optimized power consumption and enhanced coverage. This model further enriches the widely deployed Telit xE910 family of 28 x 28 mm LGA modules.

Form Factor Family

The xE910 28.2 x 28.2 x 2.2 mm LGA form factor is Telit’s broadest. It is comprised of models in cellular technologies spanning 2G, 3G, 4G, 3GPP and 3GPP2, supporting optional positioning capabilities in certain models. All form factor family members share basic pinouts, electrical (supply power may vary, check mode specification) and programing interfaces allowing developers to implement a “design once, use anywhere” strategy.

Overview

  • LTE UE Cat M1/NB1
  • 3GPP Rel. 13 compliantHalf-duplex FDD
  • Single Rx, single antenna
  • Control via AT commands according to 3GPP TS 27.005, 27.007 and customized AT commands
  • SIM application tool kit 3GPP TS 51.01
  • SMS
  • IPv4/IPv6 stack with TCP and UDP protocol
  • OMA Lightweight M2M (LwM2M)
  • SSL
  • ME910C1-NA

    FCC, GCF, PTCRB, AT&T, Verizon, Ifetel, US Cellular

    ME910C1-E1

    RED, GCF, IMDA, TIM, Deutsche Telekom

    ME910C1-E2

    RED, GCF, IMDA, Telefonica, Vodafone, Deutsche Telekom

    ME910C1-AU

    RCM, Telstra, GCF

    ME910C1-J1

    Jate, Telec, NTT DoCoMo

    ME910C1-WW

    PTCRB, GCF, RED, FCC/IC, RCM, Jate, Telec, CCC, AT&T, Verizon, NTT DoCoMo, Deutsche Telekom, Anatel, Telstra, Ifetel, Rogers, Telus, US Cellular

    ME910C1-P1

    PTCRB, GCF, RED, FCC/IC

    *In process

    • Dimensions: 28.2 x 28.2 x 2.2 mm
    • LGA form factor
    • Extended temperature range -40 °C to +85 °C

    Supply Voltage

    • Nominal: 3.8 V dc
    • Operating Voltage Range: 3.2–4.2 V
    • Extended Voltage Range: 2.6–4.5 V
    • Telit application development environment: AppZone C
    • 3GPP Rel 12 PSM
    • 3GPP Rel 13 eDRX
    • 3GPP Rel 13 extended coverage
    • Telit OneEdge
    • Telit simWISE™
    • Firmware over-the-air (FOTA) update using delta upgrade techniques
    • Drivers: Windows 10, Linux, Android 10 and 11 RIL
    User Guides, Documentation, Application Notes and Firmware

    Product Comparison

     ME910C1-NAME910C1-E1ME910C1-E2ME910C1-AUME910C1-J1ME910C1-WWME910C1-P1
    MarketNorth
    America
    Single SKU
    EuropeEurope
    simWISE Ready
    AustraliaJapanWorldwide
    Single SKU
    simWISE Ready
    Worldwide
    simWISE Ready
    M1/NB1 SupportM1Dual mode M1 & NB1Dual mode M1 & NB1 + 2GDual mode M1 & NB1Dual mode M1 & NB1Dual mode M1 & NB1 + 2GDual mode M1 & NB1
    4G Bands (MHz)B2 (1900) B4 ( AWS 1700) B12 (700)
    B13 (700)
    B3 (1800) B8 (900) B20 (800)B3 (1800) B8 (900) B20 (800)B3 (1800) B5 (850) B8 (900) B28 (700)B1 (2100) B3 (1800) B8 (900) B18 (800) B19 (800) B 26 (850)B1 (2100), B2 (1900), B3 (1800), B4 (AWS 1700), B5 (850), B8 (900), B12 (700), B13 (700), B18 (800), B19 (800), B20 (800), B26 (850), B28 (700)B1 (2100), B2 (1900), B3 (1800), B4 (AWS 1700), B5 (850), B8 (900), B12 (700), B13 (700), B18 (800), B19 (800), B20 (800), B26 (850), B28 (700)
    2G Bands (MHz)B2 (1900) B3 (1800) B5 (850) B8 (900)B2 (1900) B3 (1800) B5 (850) B8 (900)
    ApprovalsFCC, GCF, PTCRB, AT&T, Verizon, Ifetel,
    US Cellular
    RED, GCF,
    IMDA, TIM, Deutsche Telekom
    RED, GCF, IMDA, Telefonica, Vodafone, Deutsche TelekomRCM, Telstra, GCFJate, Telec, NTT DoCoMoPTCRB, GCF, RED, FCC/IC, RCM, Jate, Telec, CCC, AT&T, Verizon, NTT DoCoMo,
    Deutsche Telekom,
    Anatel, Telstra, Ifetel, Rogers, Telus, US Cellular
    PTCRB, GCF, RED, FCC/IC
