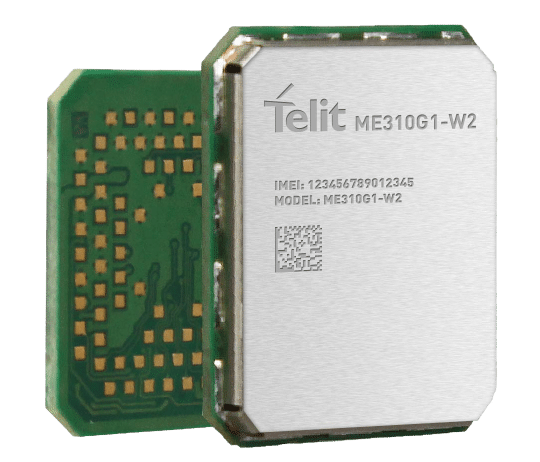

ME310G1-W2

LTE Cat M1/NB2

The ME310G1-W2 is an LTE Category M1/NB2 (Cat M1/NB2) module supporting 410 and 450 MHz bands. It is conceived for IoT applications requiring secure and robust connectivity through LTE 450 MHz private networks, such as smart metering, smart grid, smart city, smart agriculture, mPERS, mission-critical services and public safety.

  • Deep indoor and wide-area propagation due to 410 and 450 MHz frequency
  • Small size and low power consumption
  • Optimized for ease-of-design and high-yield and low-cost manufacturing
  • Compliant to 3GPP Rel. 14 Cat M1/NB2, tailored for IoT devices
  • Ideal solution for smart metering, smart grid, smart city, smart agriculture, mPERS, mission critical services and public safety
ME310G1-W2

Product Description

The ME310G1-W2 is an LTE Category M1/NB2 (Cat M1/NB2) module supporting 410 and 450 MHz bands. It is conceived for IoT applications requiring secure and robust connectivity through LTE 410/450 MHz private networks, such as smart metering, smart grid, smart city, smart agriculture, mPERS, mission-critical services and public safety.
LTE Cat M1/NB2 devices are optimized in cost, size and power consumption compared to higher UE categories.

Form Factor Family

The 94-pad LGA footprint supports connections for a comprehensive set of interfaces and controls,
with a surplus of reserve pads to futureproof the end device for coming cellular and short range wireless standards, specialized antennas, faster data interfaces, and others. The flexible perimeter concept allows modules in the family to go in sizes from around 300 mm2 to below 200 mm2 while maintaining full pin-to-pin compatibility across different size groups.

Overview

Product Features

  • LTE UE Cat M1 (1.4 MHz)/NB2 (200 kHz)
  • 3GPP Rel. 14 compliant
  • Half-duplex FDD
  • Single Rx, single antenna
  • SIM application tool kit 3GPP TS 51.01
  • SMS over NAS

Certifications

  • RED, UKCA
  • GCF
  • Dimensions: 15 mm x 18 mm x 2.6 mm
  • 94-pad LGA footprint
  • Extended temperature range: -40°C to +85°C

Supply voltage:

  • Nominal: 3.8 V dc
  • Operating voltage range: 3.2–4.2 V
  • Extended voltage range: 2.6–4.5 V
  • Control via AT commands according to 3GPP TS27.005, 27.007 and customized Telit AT commands
  • 3GPP Rel. 12 PSM
  • 3GPP Rel. 13 eDRX 3GPP Rel. 13 extended coverage
  • OneEdge
  • simWISE
  • Firmware over-the-air (FOTA) update using delta upgrade techniques
  • AppZone
  • Drivers: Windows 10, Linux, Android 10 and 11 RIL
