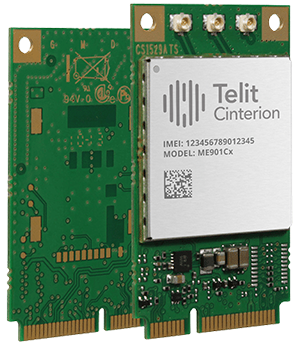

ME910C1 mPCIe Series

Cat M1/NB1 | Data Cards

The ME910C1 series mini PCIe (mPCIe) modules are optimized for LTE-M and NB-IoT networks and are available with 2G fallback options.

  • Best-in-class 3GPP Release (Rel) 13 platform
  • Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user-definable GPIOs
  • Battery-friendly 1.8 V GPIO
  • Internet-friendly with integrated TCP/IP and UDP/IP stacks
  • Simple drop-in migration and technology design reuse path to 2G and 3G with any xE910 module
  • Firmware over-the-air (FOTA) update
  • Benefit from Rel 13 features for LTE-M and NB-IoT, such as Power Saving Mode (PSM), extended Discontinuous Reception (eDRX), enhanced coverage

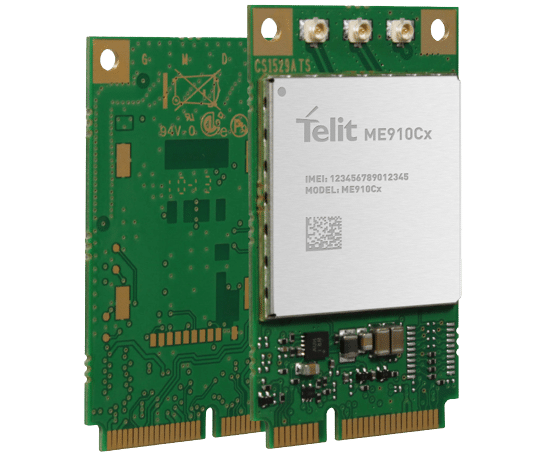

ME910Cx_mPCIe

Product Description

The ME910C1 series mPCIe modules are optimized for LTE-M and NB-IoT networks and available with 2G fallback options. The ME910C1 series modules are interchangeable with other modules in the xE910 mPCIe family.

Form Factor Family

Conforming to specifications from the Peripheral Component Interconnect Special Interest Group (PCI-SIG) electronics industry consortium, Telit mini PCIe are 52-pin, single-sided, full-size mini cards on a 50.95 mm x 30 mm edge-connected board.

Overview

Product Features

  • LTE UE Cat M1/NB1
  • 3GPP Rel 13 compliant
  • Half-duplex FDD
  • Single Rx, single antenna
  • 3GPP Rel 12 PSM
  • 3GPP Rel 13 eDRX
  • 3GPP Rel 13 extended coverage
  • SIM application tool kit 3GPP TS 51.01
  • SMS

Certifications

  • RED (Europe)
  • Dimensions: 51 x 30 x 3.2 mm
  • mPCIe module
  • Temperature range: -40 °C to +85 °C

Supply Voltage

  • Nominal: 3.3 V dc
  • FOTA update
  • Telit application development environment: AppZone C
