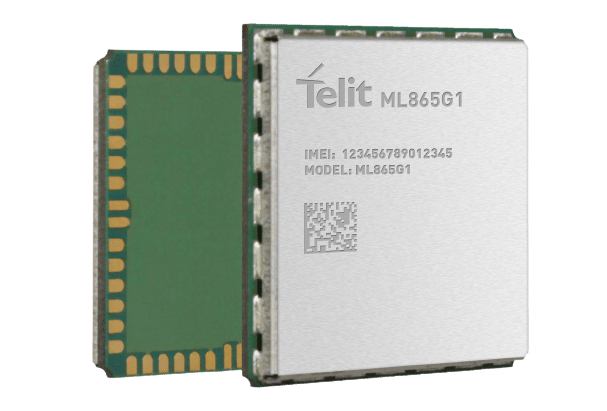

ML865G1

LTE Cat M1/NB2 | GSM/GPRS Fallback, GNSS (Optional) | Telit OneEdge™

The ML865G1 is the Category (Cat) M1/NB2 evolution in the widely deployed Telit xL865 product family. Specified in the Release (Rel) 14 of the 3GPP standard, LTE Cat M1/NB2 is specially tailored for IoT applications, offering optimized power consumption and enhanced coverage.

  • Design once and deploy globally with the xL865 form factor family
  • Optimized for low power consumption
  • Compact VQFN pack is ideally suited for low-profile integrated solutions, limited real estate application boards, reducing costs in high-volume applications and saving space and weight in portable devices
  • The perfect platform for IoT applications, such as smart metering, security and surveillance, point of sale, health monitoring, fleet management and asset tracking
  • LTE UE Cat M1/NB2 compliant to the latest 3GPP Rel 14 enhanced machine-type communication (MTC)
Contact Us
The Telit ML-4451 is showcased against a white background with GSM/GPRS.
Overview
Tech Specs
Downloads
Related Products
Product Comparison
Product Brief

Product Description

The ML865G1 is the Cat M1/NB2 evolution in the widely deployed Telit xL865 product family. Specified in the Rel 14 of the 3GPP standard, LTE Cat M1/NB2 is specially tailored for IoT applications, offering optimized power consumption and enhanced coverage.

Form Factor Family

The Telit Cinterion xL865 family addresses system integrators and IoT device developers needing a low-volume-friendly mounting solution (LCC castellation — not available across all members of the family) as well as those running high-volume automated pick-and-place (VQFN) assembly. The compact 24.4 mm x 24.4 mm package allows integration of single or combinations of cellular, short-range wireless, and positioning capabilities into small IoT devices.

Overview

Product Features

  • LTE UE Cat M1 (1.4 MHz)/NB2 (200 KHz)
  • 3GPP Rel 14 compliant
  • Half duplex FDD
  • Single Rx, single antenna
  • Control via AT commands according to 3GPP TS27.005, 27.007 and customized Telit AT commands

Certifications

  • RED, GCF, ANATEL, IMDA, FCC
  • Compact dimensions 24.4 x 24.4 x 2.6 mm
  • Compact VQFN pack
  • Operating & Extended temperature range: -40 to +85°C

Supply Voltage

  • Nominal: 3.8 V dc
  • Operating voltage range: 3.2-4.2 V
  • Extended voltage range: 2.6-4.5 V
  • Telit application development environment: AppZone C
  • Telit OneEdge
  • 3GPP Rel 12 PSM
  • 3GPP Rel 13 eDRX
  • 3GPP Rel 13 extended coverage
  • Drivers: Windows 10, Linux, Android 10 and 11 RIL
User Guides, Documentation, Application Notes and Firmware
Register for Downloads Access Downloads

Related Products

Product Comparison

ModelMarketM1/NB1 SupportFrequenciesFrequenciesOutput PowerApprovals
4G bands (MHz)2G bands (MHz)
ML865G1-WWWorldwideDual mode M1/NB2 + 2GB1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B71, B85B2, B3, B5, B8LTE: 23 dBm (Power Class 3) GSM/GPRS: 33 dBm (Power Class 4)RED, GCF, ANATEL, IMDA, FCC, Deutsche Telekom
