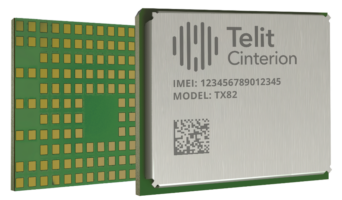

TX82

Global MTC Module (Cat.M1/Cat.NB1/NB2/2G)

The TX82 Wireless IoT Module is driving LTE evolution to 5G by providing global LTE-M, NB-IoT, and 2G connectivity today while supporting 3GPP Rel. 14 and 5G for next-generation capabilities tomorrow.

Multiple MTC Technologies for Global Connectivity:

  • 3GPP Rel.14 Cat.NB1, Cat.NB2, and 2G
  • Global LPWA from a single package

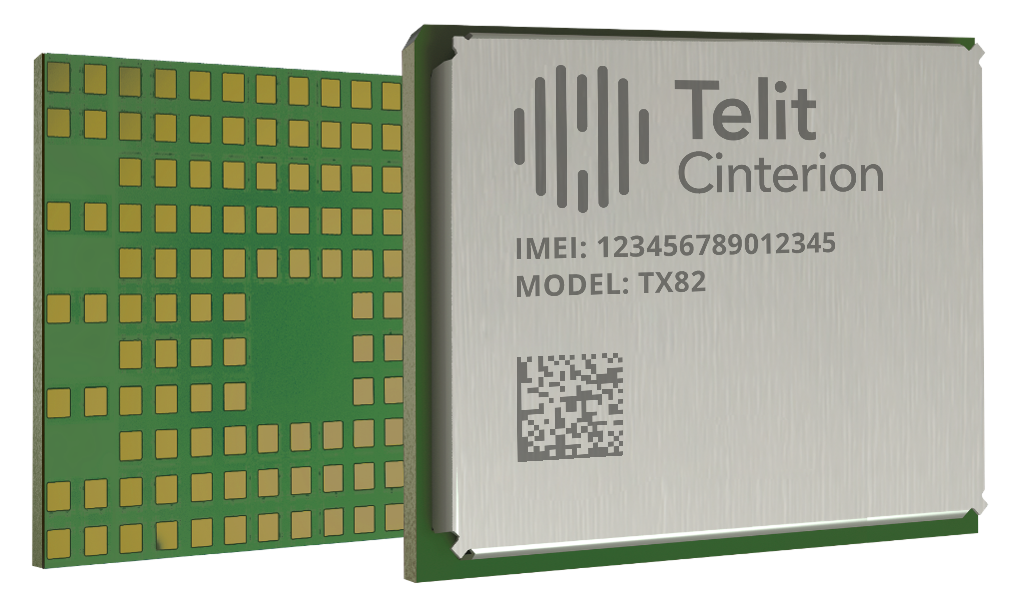

A chip with a QR code for global connectivity.

Product Description

The TX82 is packed with powerful features, including embedded processing, eSIM, GNSS, and state-of-the-art security to lower TCO and protect your IoT investment. It comes in the compact and scalable Things footprint engineered for multi design flexibility and it’s ideal for small, battery operated devices including smart meters, asset trackers, healthcare apps and wearables.

Compact Things Footprint:
– Compact form factor developed for the needs of small, battery-operated devices
– Large surface pads for improved soldering and reduced SMT warpage
– Easy routing and optimized antenna position

Ultra-Integrated for Lower Total Cost of Ownership:
– Cinterion IoT Embedded Processing enables you to build a secure & robust embedded application that runs on Cinterion IoT Module leveraging module’s onboard resources
– Embedded eSIM option

Secured by design:
– Pre-provisioned digital identities in the root of device
– Embedded eSim option
– Secure key store and certificates for cloud enrollment
– Secure boot

Easy Connectivity and Lifecycle Management:
– Secure enrollment into main cloud platforms including AWS IoT Core or Azure IoT Hub
– Remote updates and device management

Form Factor Family

Module

Overview

Product Features

  • 3GPP Rel.14 Compliant Protocol
  • LTE Cat. M1/NB1/NB2/2G
  • Compatible with Cinterion® Things footprint
  • FDD-LTE Bands:
    1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 27, 28, 66, 71, 85
  • Data only
  • LTE Cat.M1
    DL: max. 300 kbps, UL: max. 1.1 Mbps
  • LTE Cat.NB1
    DL: max. 27 kbps, UL: max. 63 kbps
  • LTE Cat.NB2
    DL: max. 124 kbps, UL: max. 158 kbps
  • LTE Power Class 5 (20 dBm)
  • eDRX (0.8mA 81.92s eDRx and PSM 4.5µA)
  • Embedded IPv4 and IPv6 TCP/IP stack access via AT command, provides: TCP/UDP Client, UDP Endpoint, TCP Listener, HTTP client, FTP client, MQTT client, NTP service, CoAP Client
  • Secure Connection with TLS 1.3 / DTLS 1.2
  • Secure boot
  • Integrated GNSS support (GPS/BeiDou/Galileo/GLONASS)
  • 2 high-speed serial interface
  • UICC and U/SIM card interface 1.8V (embedded SIM option)
  • SPI, I2C, PWM signal line, GPIO´s
  • ADC interface
  • Dimension:
    20.9 x 15.3 x 2.3mm
