NE310L2 Series

LTE Cat NB2

The NE310L2 is a category NB2 product in the Telit xE310 product family. Cat NB2 devices are specifically tailored for low-data throughput IoT applications, exceeding market demands for optimized power consumption and enhanced coverage quality.

  • Small form factor ideal for size-constrained applications
  • Ultralow power consumption
  • 3GPP Rel 14 Cat NB2 evolution in the new Telit form factor xE310
  • Perfect platform for global IoT applications such as smart metering, smart agriculture, health monitoring and asset tracking

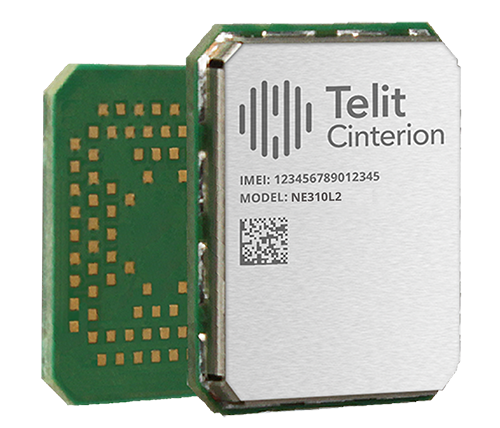

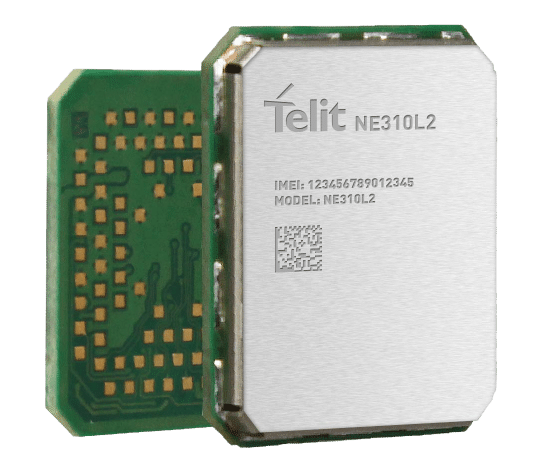

NE310L2

Product Description

With its small size and ultralow power consumption, the NE310L2 is a category NB2 product in the Telit xE310 product family. Cat NB2 devices are specifically tailored for low-data throughput IoT applications, exceeding market demands for optimized power consumption and enhanced coverage quality. The NE310L2 creates new IoT-enabled business models by addressing connectivity and battery life concerns for original equipment manufacturers (OEMs), integrators and device designers looking to increase data points they can collect from their operation and customers via IoT devices. IoT is now possible at a scale and cost point that makes many previously unviable deployments ROI positive.

Form Factor Family

The 94-pad LGA footprint supports connections for a comprehensive set of interfaces and controls, with a surplus of reserve pads to futureproof the end device for coming cellular and short range wireless standards, specialized antennas, faster data interfaces, and others. The flexible perimeter concept allows modules in the family to go in sizes from around 300 mm2 to below 200 mm2 while maintaining full pin-to-pin compatibility across different size groups.

Overview

Product Features

  • LTE UE Cat NB2
  • 3GPP Rel 14 compliant
  • Half-duplex FDD
  • Single Rx, single antenna
  • SIM application tool kit 3GPP TS51.01
  • SMS
  • DTLS

Certifications

  • NE310L2-W1
  • FCC/IC, RED, RCM,Anatel*, GCF, PTCRB, AT&T, Verizon*
  • NE310L2-WW
  • FCC/IC, RED, Anatel*, GCF*, PTCRB, AT&T, Verizon*

*In process

  • Dimensions:
    • 13.1 x 14.3 (NE310L2-W1)
    • 15 x 18 (NE310L2-WW)
  • 94-pad LGA footprint
  • Extended temperature range -40° C to +85° C

Supply voltage:

  • Nominal: 3.8 V dc
  • Operating voltage range: 3.2-4.2 V
  • Extended voltage range: 3.0-4.5 V
  • PSM
  • eDRX
  • Extended Coverage
  • Control via AT commands according to 3GPP TS27.005, 27.007 and customized Telit AT commands
  • Firmware over-the-air (FOTA) update using delta upgrade techniques
User Guides, Documentation, Application Notes, and Firmware

Product Comparison

 NE310L2-W1NE310L2-WW
MarketWorldwideWorldwide
4G BandsB1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B85B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B85
2G BandsB2, B3, B5, B8
Output PowerLTE: 23 dBm (Power Class 3)LTE: 23 dBm (Power Class 3) GSM/GPRS 33 dBm (Power Class 4)
ApprovalsFCC/IC, RED, GCF, PTCRB, RCM, Anatel*, AT&T, Verizon*, Deutsche Telekom*, Telefonica*FCC/IC, RED, GCF, PTCRB, Anatel*, AT&T, Verizon*
*In process
