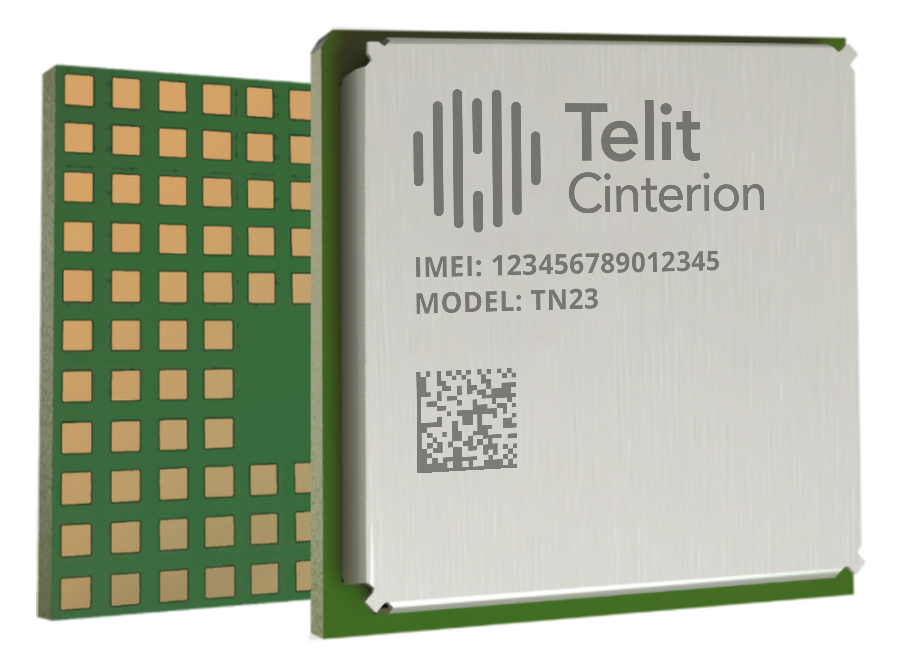

TN23

Efficient MTC Module (LTE Cat.NB2) Global

Cinterion® TN23-W NB-IoT module provides highly efficient future 5G connectivity for the IoT with its high power efficiency, advanced security features, and reliability for data-only solutions.

Multiple MTC Technologies for Global Connectivity:
– 3GPP Rel.14 Cat.NB1, Cat.NB2
– Global LPWA from a single package

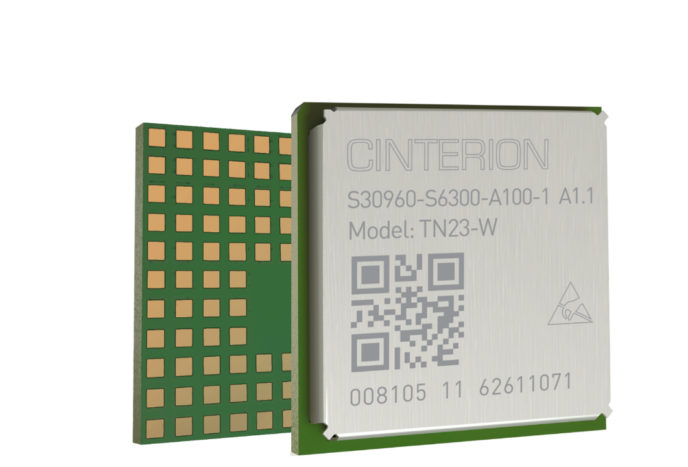

Telit-Cinterion_TN23-W_dynamic

Product Description

Ultra-Integrated for Lower Total Cost of Ownership:
– Cinterion IoT Embedded Processing enables you to build a secure & robust embedded application that runs on Cinterion IoT Module leveraging module’s onboard resources
– Embedded eSIM option

Secured by design:
– Pre-provisioned digital identities in the root of device
– Secure key store and certificates for cloud enrollment
– Secure boot

Easy Connectivity and Lifecycle Management:
– Secure enrollment into main cloud platforms including AWS IoT Core or Azure IoT Hub
– Remote updates and device management



Form Factor Family

Compact Things Footprint:
– Compact form factor developed for the needs of small, battery-operated devices
– Large surface pads for improved soldering and reduced SMT warpage
– Easy routing and optimized antenna position

Size:
– 15.3 x 15.3 x 2.9 mm

Overview

Product Features

  • 3GPP Rel.14 Compliant Protocol
  • LTE Cat.NB1/NB2
  • Power Class 23 dBm
  • Compatible with Cinterion® Things footprint
  • FDD-LTE Bands:
    1, 2, 3, 4, 5, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 66, 85
  • Data only
  • LTE Cat.NB1
    DL: max. 27 kbps, UL: max. 63 kbps
  • LTE Cat.NB2
    DL: max. 124 kbps, UL: max. 158 kbps
  • Embedded Processing*
    Cortex-M4 @60MHz
    256kB flash (XIP)
    128kB SRAM
    Thales SDK based on Free RTOS
  • eDRX 80uA in 81.92s and PSM 1.6uA
  • Embedded IPv4 and IPv6 TCP/IP stack for: UDP Client Non-Transp & Transp, NTP client, TCP Client Non-Transp & Transp *), TCP Listener Transp *), Std TCP Listner Non Transp & Transp *), Non-Transp UDP End-Point *), FTP(s)/FTPES Client *), HTTP(s) Client *), MQTT Client *), CoAP Client *)
  • Secure Connection with TLS 1.3 / DTLS 1.2*
  • Secure boot
  • 2 high-speed serial interface
  • UICC and U/SIM card interface 1.8V (embedded SIM option)
  • SPI*, I2C*, GPIO´s
  • Cinterion IoT Suite Solution*:
    Firmware Update Over the Air (OTA) with incremental packagesDL: max. 10.2 Mbps, UL: max. 5.2 Mbps
