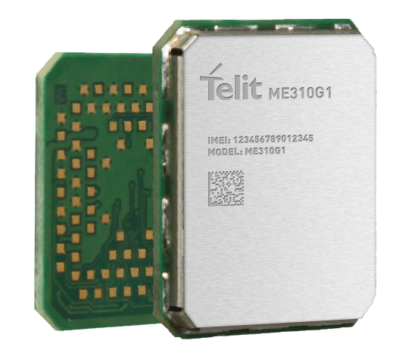

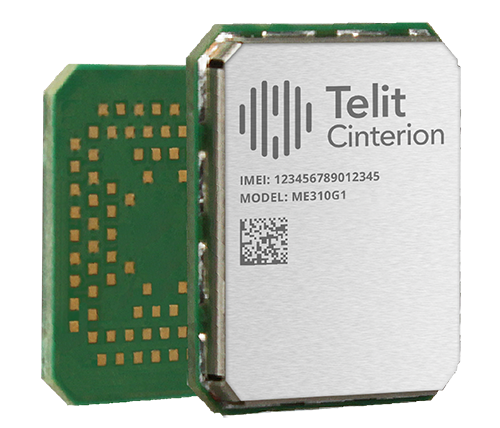

ME310G1 Series

LTE Cat M1/NB2 | GSM/GPRS fallback, GNSS | Telit OneEdge™

The ME310G1 creates new IoT-enabled business models by addressing connectivity and battery life concerns for original equipment manufacturers (OEMs), integrators and device designers looking to increase data points they can collect from their operation and customers via IoT devices.

  • Optimized for ease-of-design, high yield and low-cost manufacturing
  • Compliant to 3GPP Rel. 14 Cat M1/NB2, tailored for IoT devices
  • An ideal solution for medical devices, fitness trackers, industrial sensors, smart meters and other mass-production, mass-deployment applications.
  • Global SKU with optional 2G fallback and future support for non-terrestrial networks (NTN)
  • Module sizes ranging from 300 mm2 to below 200 mm2 on a fixed 94-pad LGA footprint enable a “design once, use anywhere” IoT device
Contact Us
TC_ME310G1
Overview
Tech Specs
Downloads
Related Products
Product Comparison
Product Brief

Product Description

Enabling a new generation of massive low-cost IoT device deployment numbering in the hundreds of thousands or millions, the ME310G1 is the Category M1/NB2 (Cat M1/NB2) evolution of the brand-new Telit xE310 product family. Cat M1/NB2 devices are specifically tailored for low-data throughput IoT applications, exceeding market demands for optimized power consumption and enhanced quality of coverage. The ME310G1 creates new IoT-enabled business models by addressing connectivity and battery life concerns for original equipment manufacturers (OEMs), integrators and device designers looking to increase data points they can collect from their operation and customers via IoT devices.

Form Factor Family

The 94-pad LGA footprint supports connections for a comprehensive set of interfaces and controls, with a surplus of reserve pads to futureproof the end device for coming cellular and short range wireless standards, specialized antennas, faster data interfaces, and others. The flexible perimeter concept allows modules in the family to go in sizes from around 300 mm2 to below 200 mm2 while maintaining full pin-to-pin compatibility across different size groups.

Overview

Product Features

  • LTE: bands: B1,B2, B4, B5, B8, B8_US, B12, B13, B18, B19, B25, B26, B27, B28, B66, B71, B85 (ME310G1-W1/WW)
  • LTE Bands: B1, B2, B3, B4 ,B5, B8, B8_US, B12, B13, B14, B18, B19, B20, B25, B26, B27, B28, B66, B85 ( ME310G1-W3)
  • LTE Bands: B1, B3, B8, B20, B28, B31, B72, B87, B88(ME310G1-W2)
  • 2G Bands: B2, B3, B5, B8 ( ME310G1-WW)
  • PSM, eDRX, Extended Coverage
  • Control via AT commands according to 3GPP TS 27.005, 27.007 and customized Telit Cinterion AT commands
  • SIM application tool kit 3GPP TS 51.01
  • SMS over NAS
  • IPv4/IPv6 stack with TCP and UDP protocol
  • Embedded GNSS (GPS, GLONASS, Beidou, Galileo)
  • OMA Lightweight M2M (LwM2M)
  • Firmware Over-the-Air update (FOTA) using delta upgrade techniques

ME310G1-W1

FCC/IC, RED, GCF, PTCRB, IMDA, UKCA, Anatel, Ifetel, AT&T, FirstNet, Verizon, Sprint, T-Mobile US, Deutsche Telekom

ME310G1-WW

FCC/IC, RED, GCF, PTCRB, ANATEL, RCM, JATE/TELEC, CCC, SRRC, NCC, KC, Ifetel, IMDA, UKCA, AT&T, FirstNet, Verizon, Sprint, T-Mobile US, SKT, TELSTRA, NTT DOCOMO, KDDI, Deutsche Telekom, Telus, Spark

ME310G1-W3

KC, FCC/IC, GCF, RED, UKCA, PTCRB, RCM, SKT, AT&T, FirstNet, Verizon, Spark, Telstra



*In process
**Available only on dedicated ordering code

  • Dimensions: – 13.1 x 14.3 x 2.6 mm (ME310G1-W1) – 15 x 18 x 2.6 mm (ME310G1-WW/WWV/W3)
  • 94-pad LGA footprint
  • Operating & Extended temperature range: -40 °C to +85 °C

Supply voltage:

  • Nominal: 3.8 V dc
  • Operating voltage range: 3.2–4.2 V
  • Extended voltage range: 2.6–4.5 V
  • 3GPP Rel. 12 PSM
  • 3GPP Rel. 13 eDRX
  • 3GPP Rel. 13 extended coverage
  • Telit OneEdge
  • Firmware over-the-air (FOTA) update using delta upgrade techniques
  • Telit AppZOne
  • Drivers: Windows 10, Linux, Android 10 and 11 RIL
User Guides, Documentation, Application Notes, and Firmware
Register for Downloads Access Downloads

Related Products

Product Comparison

ME310G1-W1ME310G1-WWME310G1-W3
MarketWorldwideWorldwideWorldwide
LTE-M/NB-IoTDual Mode LTE-M/NB-IoTDual Mode LTE-M/NB-IoTLTE-M only
4G BandsB1, B2, B3, B4, B5, B8, B8_US**, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B71, B85B1, B2, B3, B4, B5,B8, B8_US**, B12, B13, B18, B19, B20, B25, B26, B27, B28, B66, B71, B85B1, B2, B3, B4, B5, B8, B8_US, B12, B13, B14, B18,B19, B20, B25, B26, B27, B28, B66, B85
2G BandsB2, B3, B5, B8
Output PowerLTE: 21 dBm (Power Class 5)LTE: 23 dBm (Power Class 3) GSM/GPRS 33 dBm (Power Class 4)LTE: 23 dBm (Power Class 3)
ApprovalsFCC/IC, RED, GCF, PTCRB, IMDA, UKCA, Anatel, Ifetel, AT&T, FirstNet, Verizon, Sprint, T-Mobile US, Deutsche TelekomFCC/IC, RED, GCF, PTCRB, ANATEL, RCM, JATE/TELEC, CCC, SRRC, NCC, KC, Ifetel, IMDA, UKCA, AT&T, FirstNet, Verizon, Sprint, T-Mobile US, SKT, TELSTRA, NTT DOCOMO, KDDI, Deutsche Telekom, Telus, SparkKC, FCC/IC, GCF, RED, UKCA, PTCRB, RCM, SKT, AT&T, FirstNet, Verizon, Spark, Telstra
VoiceNoNoNo
*In process
**Available only on dedicated ordering code
