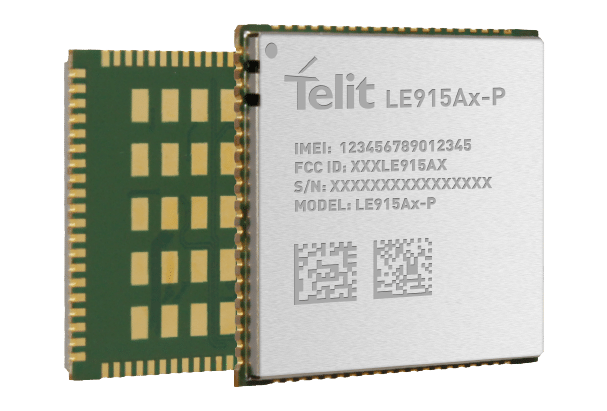

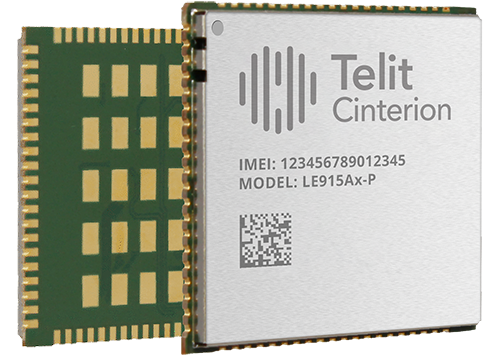

LE915Ax-P Series

LTE Cat 4/6 | Embedded

The LE915Ax-P series of 4G LTE modules comply with the 3GPP Release (Rel) 9 and support Citizens Broadband Radio Service (CBRS) Band 48 for private LTE applications.

  • Support for LTE Band 48 (CBRS)
  • Variety of hardware interfaces: USB 2.0 HS, UART and user-definable GPIOs
  • Internet-friendly with integrated TC/IP and UDP/IP stacks
  • Firmware over-the-air (FOTA) update
LE915Ax-P

Product Description

The LE915Ax-P series of 4G LTE modules comply with the 3GPP Rel 9 and support CBRS Band 48 for private LTE applications. This compact and cost-effective LGA form factor family is available both as Class 4 and Class 6 and ideal for different industrial applications (e.g., oil and gas, surveillance, telemetry, etc.).

Form Factor Family

The xE915, 32 x 29 x 1.6 mm, 134-pad, castellated LGA form factor is comprised of models in private cellular technologies.

Overview

Product Features

  • Support for LTE Bands 42, 43 and 48 (CBRS)
  • Data-only module
  • LTE TDD Cat 4, 3GPP Rel 9 compliant (LE915A4-P)
  • LTE TDD Cat 6, 3GPP Rel 9 compliant (LE915A6-P)
  • Rx diversity and MIMO DL 2 x 2
  • SMS over NAS
  • IPv4/IPv6 stack
  • Control via AT commands according to 3GPP TS 27.005, 27.007

Certifications

  • FCC (North America)
  • CBRS OnGo
  • REACH and RoHS compliant

Environmental

  • Dimensions 32 x 29 x 1.6 mm
  • 134-pad, castellated LGA form factor
  • Temperature Range: -30 °C to +60 °C

Output Power

  • Class 3 (0.2 W, 23 dBm) LTE Supply voltage range
  • Nominal: 3.8 V dc – Range: 3.135 – 5.5 V dc

Telit custom AT commands FOTA update
