ELS62

Single Antenna Module (LTE Cat.1bis) Global w/o NORAM

LTE single antenna with 2G fallback offers complete design flexibility, quick time-to-market, and future-proof technology that is ideal for security solutions, e-metering, smart cities, and many other applications.

Multiple regional LTE coverage with 2G fallback:
– LTE cat.1 bis single antenna with latest network bands grouping
– VoLTE with CSFB

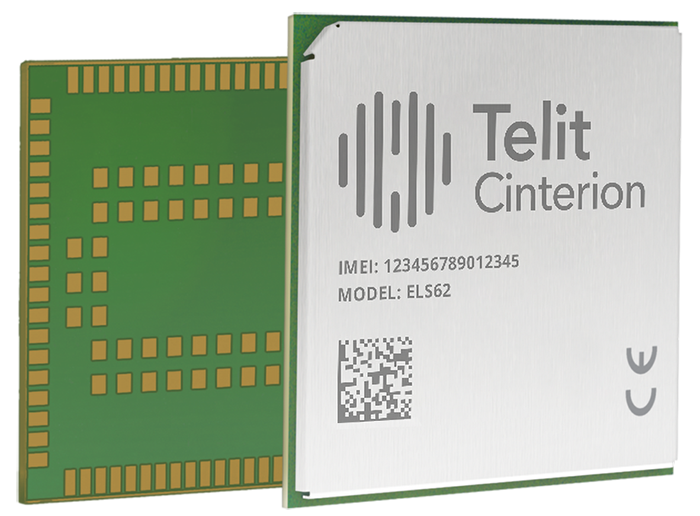

Telit-Cinterion_ELS62_dynamic

Product Description

The Cinterion ELS62 enables device makers to take advantage of all LTE Cat.1 bis advantages while fully benefiting from Cinterion’ industry-leading quality, security and support expertise.

State of the Art Secure Services:
– Secure boot, secure mode, secure key store & secure communication
– Secure Credential preloading, handling & management
– Firmware encryption
– Disabled debug interface

Easy migration from Cinterion 2G/3G/LTE cat.1 modules:
– HW compatibility with Cinterion E Footprint Industrial class modules
– Cinterion AT commands for SW compatibility

Easy Connectivity and Lifecycle Management:
– eSIM & Connectivity Activation for fast, flexible installation + reliable connection
– Remote incremental update and device management

Form Factor Family

LGA pad soldering mount

Overview

Product Features

  • 3GPP Rel.13 Compliant Protocol
  • Volte with CSFB
  • LTE Cat.1bis
    DL: max. 10.2 Mbps, UL: max. 5.2 Mbps

Certifications

  • GCF, RED, UKCA, ROHS, RCM, Anatel, CCC, SRRC, NAL

Dimensions:

  • 27.6 x 25.4 x 2.2 mm

Form factor:

  • LGA pad soldering mount

Interfaces

  • 2 high-speed serial interfaces
  • USB
  • Digital Audio interface (PCM and I2S)
  • Dual UICC/U/SIM card interface 3V/1.8V(embedded SIM option)
  • SPI, I2C, GPIO´s

Special Features:

  • Cinterion® IoT Suite Solutions:
    Firmware Update Over the Air (OTA) with full or incremental packages
    Connectivity Activation (eSIM)
  • Embedded Processing with Cinterion IoT SDK
  • Embedded IPv4 and IPv6 TCP/IP stack access via Cinterion
    AT command: TCP & UDP Server/Client, Ping, HTTP Client, FTP(s)/FTPES Client, MQTT Client
  • Secure Connection with TLS 1.3 / DTLS 1.2
  • Secure boot

Product Comparison

ELS62-WELS62-EELS62-BRELS62-CELS62-I
RegionEMEA/LATAM/IndiaEMEABrazilChinaIndia
FDD-LTE Rel. 131, 2, 3, 4, 5, 7, 8, 20, 28, 661, 3, 7, 8, 20, 281, 3, 5, 7, 8, 281, 3, 5, 81, 3, 5, 8
TDD-LTE Rel. 1338, 40, 41
34, 38, 39, 40, 4140, 41
EGPRS Rel. 13850, 900, 1800, 1900 MHz 900, 1800 MHz850, 900, 1800, 1900 MHz900, 1800 MHz900, 1800 MHz
