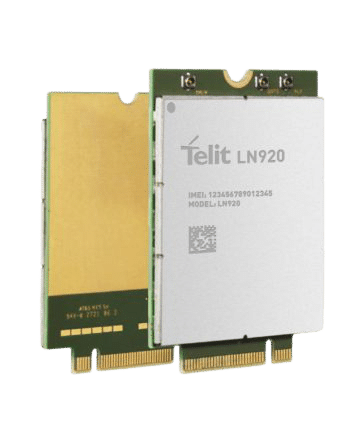

LN920

M.2 High-Speed LTE Data Card

The LN920 is an M.2 (NGFF) compact data card with versions available in Category (Cat) 12 and 6 worldwide. They are pre-certified by Tier 1 operators and ideal for mobile computing and IIoT gateways and routers.

  • Powered by the Qualcomm® Snapdragon® X12+ LTE modem
  • Supports LTE bands between 600 MHz and 3.7 GHz, including CBRS (Band 48) and FirstNet (Band 14)
  • LTE Cat 12 (3xCA and 600 Mbps DL/150 Mbps UL) and Cat 6 (2xCA and 300 Mbps DL/50 Mbps UL)
  • WCDMA fallback technology
  • Embedded GNSS positioning and navigation
Contact Us

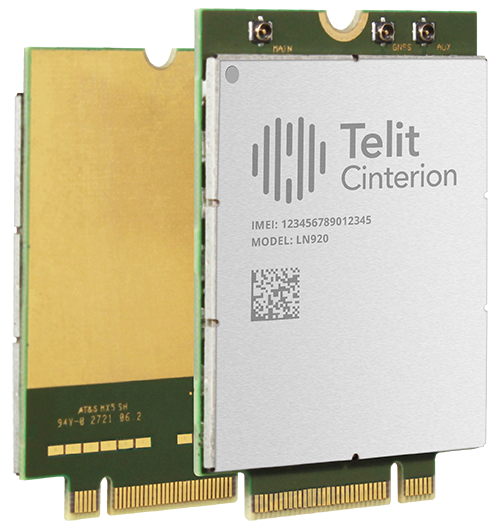

TC_LN920
Overview
Tech Specs
Downloads
Related Products
Product Comparison
Product Brief

Product Description

The LN920 is available as LTE Cat 12 (600 Mbps peak data rate DL, 150 Mbps UL) and Cat 6 (300 Mbps peak data rate DL, 50 Mbps UL). This data card supports a broad set of LTE frequency bands and carrier combinations and includes 3G/HSPA+ legacy technology and a GNSS receiver, making it ideal for worldwide deployments. It is certified for global deployments across EMEA, the Americas and APAC, including specific MNO certifications in regions requiring them like APAC and NA.

Form Factor Family

These M.2 mini cards were formerly known as the Next Generation Form Factor (NGFF). Telit Cinterion M.2 data cards comply with the B key standard and can be 42 or 50 mm long. Depending on the model, they can be single- and double-sided form factors.

Overview

  • M.2 form factor
  • Chipset: Qualcomm® SDX12
  • Available as Cat 12 (LN920A12-WW), Cat 13 (LN920A13-WW) or Cat 6 (LN920A6-WW)
  • 3GPP Rel 12 compliant
  • Control via AT commands according to 3GPP
  • TS27.005, 27.007 and custom AT commands
  • SIM application toolkit 3GPP TS51.014
  • SMS over SG and IMS
  • Firmware over-the-air (FOTA) update
  • Embedded GNSS (GPS, GLONASS, Beidou, Galileo) receiver with dedicated RF connector
  • Dual-SIM interface (dual-SIM, single standby with dedicated or shared RF connector)
  • Secure boot to prevent unauthorized code from being executed on the modem
  • SELinux (Security-Enhanced Linux) architecture to guarantee maximum data protection
  • Regulatory: Anatel*, CCC, CE/RED, FCC, IC, JATE/TELEC, NCC
  • Industry standard: GCF, KC, PTCRB, Spark NZ*
  • MNOs: AT&T, Docomo, FirstNet, KDDI, NTT, RCM, T-Mobile US, Verizon

*LN920A12 only

  • Dimensions: 30 x 42 x 2.4 mm
  • M2M form factor
  • Full industrial operating temperature range: -40° C to +85° C (operating and storage)

Electrical

  • 3.3 V nominal
  • Range: 3.1-3.6 V
  • Host drivers for Windows and Linux
User Guides, Documentation, Application Notes and Firmware
Register for Downloads Access Downloads

Related Products

Product Comparison

LN920A12-WWLN920A13-WWLN920A6-WW
LTE Bands1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 42, 43, 48 (CBRS), 66, 711, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 42, 43, 48 (CBRS), 66, 711, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 42, 43, 48 (CBRS), 66, 71
WCDMA Bands1, 2, 4, 5, 8, 9, 191, 2, 4, 5, 8, 9, 191, 2, 4, 5, 8, 9, 19
Category12136
Maximum DL Throughput [Mbps]600400300
Maximum UL Throughput [Mbps]15015050
DL CAUp to 3xCAUp to 2xCAUp to 2xCA
