LTE Cat 1 bis
The LE910Q1 series leverages a North American variant and a global SKU for worldwide deployments. The LE910Q1 LTE Cat 1 bis modules have indoor and outdoor location capabilities based on Wi-Fi, cellular and GNSS for flexible tracking.
Product Description

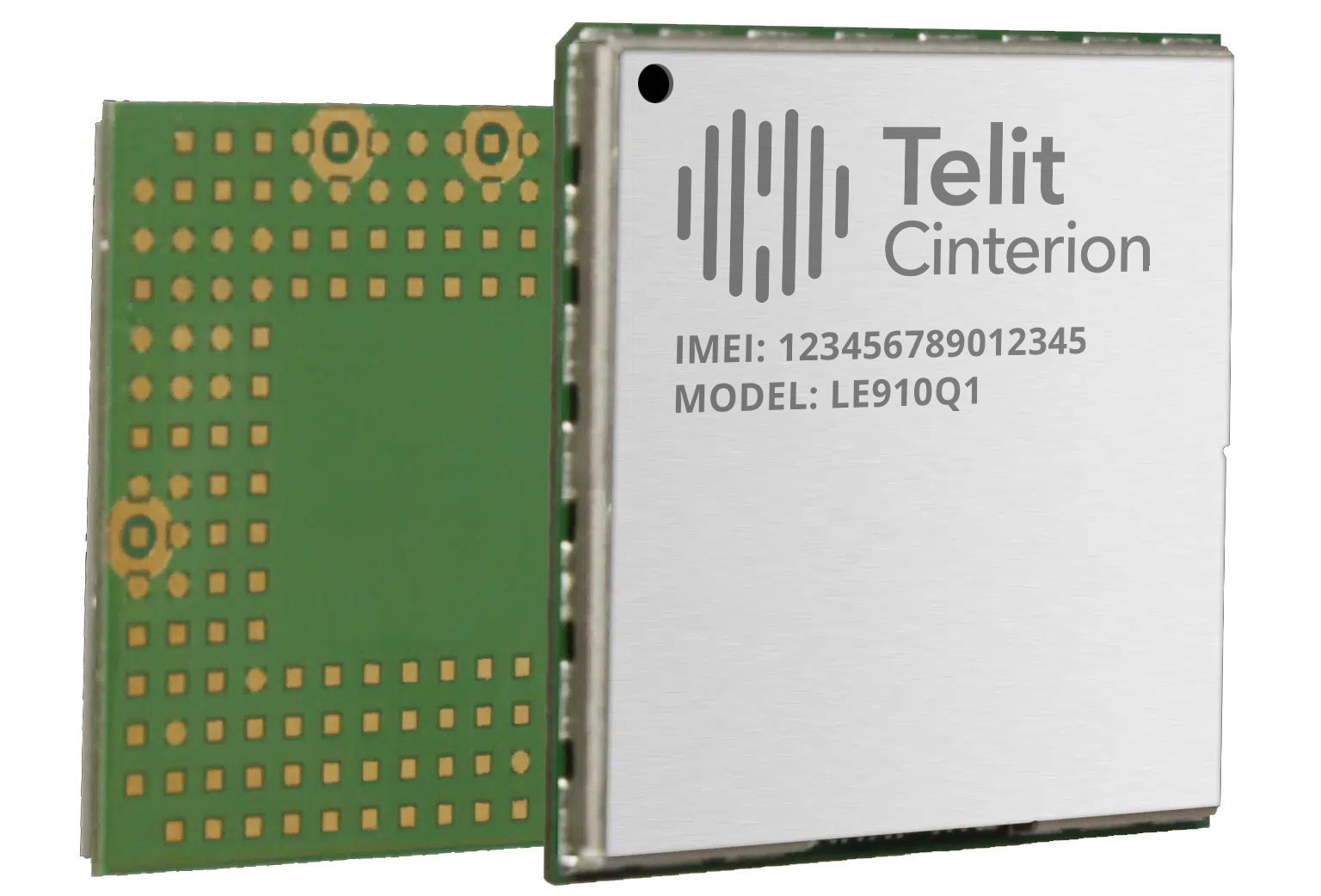

The LE910Q1 is an industrial-grade, cost-optimized 3GPP Release (Rel) 13 LTE Cat 1 bis module. It is ideal for multiple IoT applications that need data transmission, including:
It is also suitable for devices that require global deployment and mobility across all continents, including North America.
LTE Cat 1 bis is a proven, affordable technology. It is ideal for IoT applications that require higher performance compared to Cat M1 and NB-IoT in terms of:
Form Factor Family
The xE910 28.2 x 28.2 x 2.2 mm LGA form factor is Telit Cinterion’s broadest. It comprises modules in cellular technologies spanning 2G, 3G, 4G, 3GPP and 3GPP2. In addition, certain modules support optional positioning capabilities.
All form factor family members share:
These shared features allow developers to implement a “design once, use anywhere” strategy.
Product Features
Certifications
• Dimensions: 28.2 x 28.2 x 2.2 mm
• 181-pin LGA interface
• Industrial temperature range -40 °C to +85 °C
Supply voltage range:
| LE910Q1-WW | LE910Q1-SN | |
|---|---|---|
| Market | Global | North America |
| Frequencies | ||
| 4G bands (MHz) | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B34, B38, B39, B40, B41 | B2, B4, B5, B12, B13, B66 |
| GNSS | Optional | Optional |
