LE910Cx Linux Series

LTE Cat1/4

The LE910C1 and LE910C4 4G LTE modules are compliant with the 3GPP Release 10 and are available with optional quad-constellation GNSS capability.

  • Best-in class 3GPP rel10 platform
  • MTC features ready according to 3GPP Rel.12
  • Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user definable GPIOs
  • Internet friendly with integrated TCP/IP and UDP/IP stacks
  • Simple drop-in migration and technology design reuse path to 2G and 3G with any xE910 module

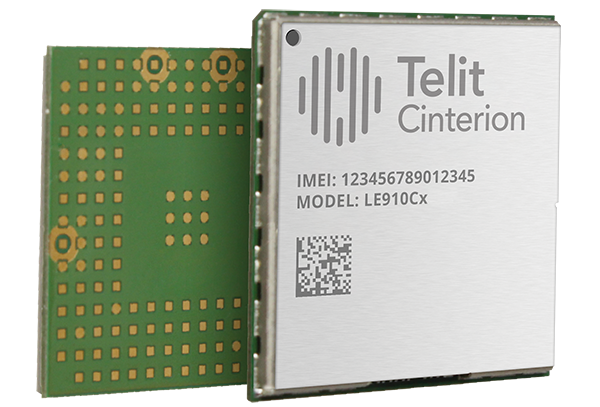

Telit LE910Cx cellular 4G LTE module series, a member of the xE910 module form factor family.

Product Description

The LE910Cx series of 4G LTE modules are compliant with the 3GPP Release 10 and are available with optional quad-constellation GNSS capability. This compact LGA form factor family is available in a variety of configurations, supporting both single-mode and fallback as needed for specific regions, carriers, and use cases.

Form Factor Family

The LE910Cx is a member of Telit’s flagship xE910 module family delivering 4G radio access technology in the 28.2 x 28.2 x 2.2 mm family form factor. The Telit xE910 Unified Form Factor Family is comprised of 2G, 3G, and 4G, 3GPP and 3GPP2 products sharing a common form factor as well as electrical and programing interfaces which allows developers to implement a “design once, use anywhere” strategy.

Overview

Product Features

  • Band 14 support
  • LTE FDD Cat.4, 3GPP release 10 compliant
  • LTE FDD Cat.1. 3GPP release 9 compliant
  • Rx Diversity and MIMO DL 2×2
  • Single Rx option
  • VoLTE support
  • SMS over IMS
  • Built in UDP/TCP/FTP/SMTP stack
  • IPv4/IPv6 stack
  • Control via AT commands according to 3GPP
  • Simultaneous support of GPS, Glonass, Beidou, Galileo, QZSS

Certifications

  • FCC /IC, PTCRB (North America)
  • RCM (Australia)
  • JRL/JTBL (Japan)
  • RED/GCF (Europe)
  • Dimensions: 28.2 x 28.2 x 2.2mm
  • LGA form factor
  • Extended temperature range: -40 °C to +85 °C

Supply voltage range:

  • Nominal: 3.8 VDC
  • Range: 3.4 – 4.2 VDC

Telit application development environment: AppZone C

User Guides, Documentation, Application Notes, and Firmware

Product Comparison

 LE910C1-NALE910C1/C4-APLE910C1-NSLE910C1/C4-EULE910C1/C4-NFLE910C1-SALE910C1-SVLE910C1/C4-LALE910C4-CN
MarketNorth America (AT&T)APAC (Telstra/NTT-Docomo, SoftBank, KDDI)North America (Sprint)EMEANorth America (Public safety, FirstNet, AT&T,T-Mobile, Verizon) CanadaNorth America (Public safety, FirstNet, AT&T)North America (Verizon)LATAMChina, India
Frequencies
4G bands (MHz)B2, B4, B12B1, B3, B5, B8 B9, B18, B19, B26, B28B2, B4, B5, B12, B25, B26,B1, B3, B7, B8, B20, B28AB2, B4, B5, B12, B143, B14, B66, B71B2, B4, B12, B14, B66B4, B13B1, B2, B3, B4, B5, B7, B28B1, B3, B5, B8 TDD: B38, B39, B40, B41
TD-SCDMA:
B34, B39
3G bands (MHz)B1, B2, B4, B5, B8B1, B5, B6, B19, B8B1, B3, B8B2, B4, B5B1, B2, B4, B5B1, B8
2G bands (MHz)B2, B3, B5, B8,B3, B8B2, B3, B5, B8B3, B8
