LE910T1 Series

LTE Cat 1 bis 10/5 Mbps

The LE910T1 is a robust, industrial‑grade LTE Cat 1 bis module compliant with 3GPP Release 14 and part of our xE910 family. Optimized for cost‑efficient performance, it supports a wide range of IoT solutions that require reliable data connectivity.

LTE Cat 1 bis offers a mature and economical connectivity option for IoT devices. It delivers stronger performance than Cat M1 and NB‑IoT when applications require improved:

  • Data throughput
  • Lower latency
  • Support for mobility
Connect with Sales Get Your Free SIM Starter Kit

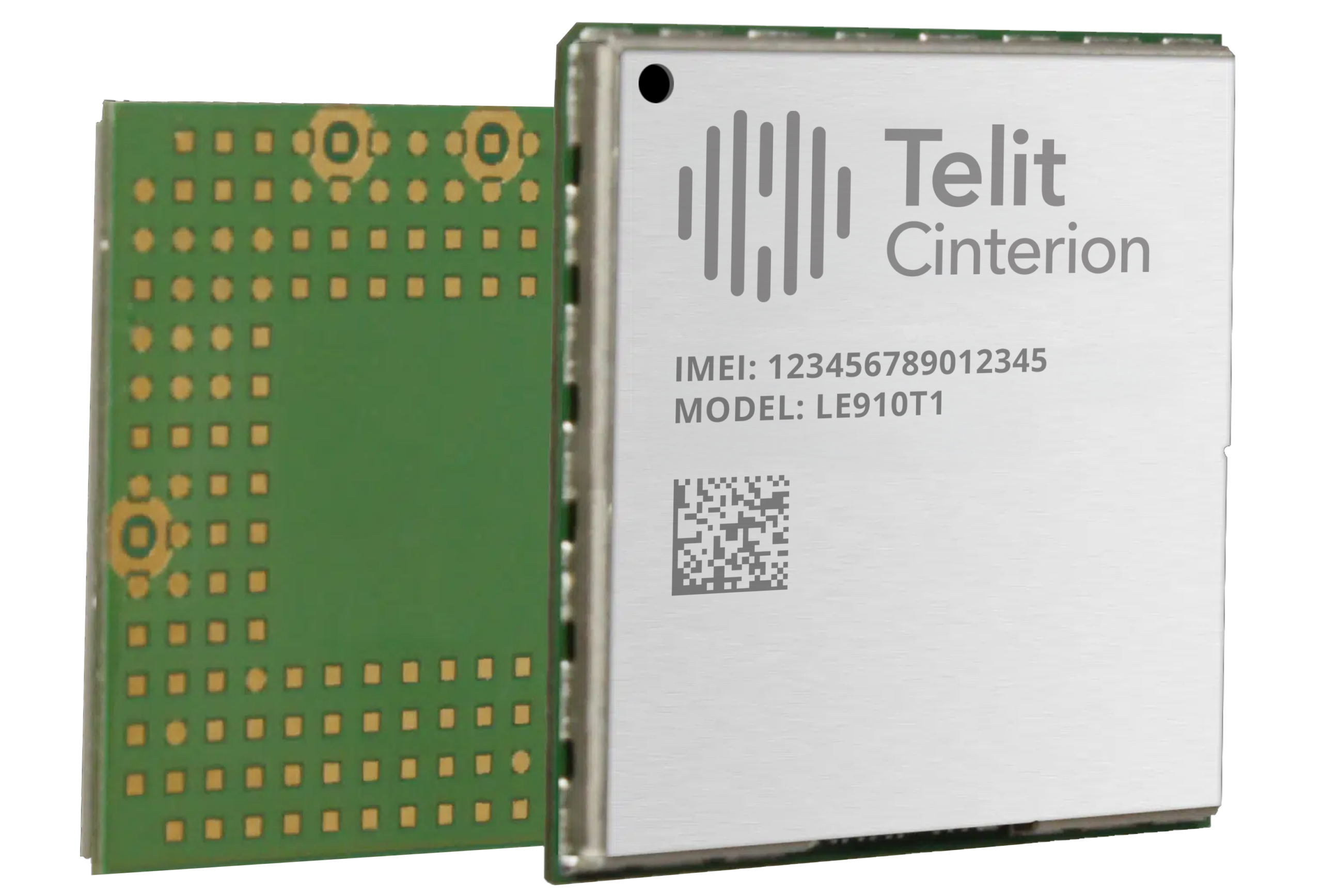

Rectangular Telit Cinterion LE910T1 electronic module, showing a metal label with model details and QR code on one side, and a green circuit board with gold contacts on the other.
Overview
Tech Specs
Downloads
Related Products
Product Comparison
Product Brief

Product Description

The industrial-grade LE910T1 module provides reliable, cost‑efficient IoT connectivity. LTE Cat 1 bis provides lower latency and improved mobility performance compared to Cat M1 and NB‑IoT. It’s ideal for IoT solutions that require higher responsiveness.

With its strong data transfer rates, this Cat 1 bis module is well‑suited for data‑driven applications such as:

  • Asset tracking
  • Vehicle telematics
  • Remote monitoring

LTE Cat 1 bis uses one antenna, unlike LTE Cat 1, which requires two. This affordable approach allows for a smaller form factor and meets IoT device requirements for strict size constraints

Related Evaluation Kit: EVB 2.0 Module Evaluation and IoT Device Development Kit

Form Factor Family

The LE910T1 belongs to Telit Cinterion’s xE910 family. It provides 4G connectivity in a compact 28.2 x 28.2 x 2.4 mm form factor. All xE910 modules share the same interfaces, enabling a “design once, use anywhere” approach across the form factor family variants.

Overview



  • LTE FDD Cat 1 bis 3GPP Rel 14 compliant
  • Single LTE antenna
  • Built-in UDP, TCP, PPP, HTTP, HTTPS, FTP stack
  • IPv4/IPv6 stack
  • Control via AT commands according to 3GPP
  • TS 27.005, 27.007 and Telit Cinterion custom AT
    commands





FCC*, PTCRB*

*Planned





  • Dimensions 28.2 x 28.2 x 2.4 mm
  • 181-pin LGA interface
  • 10 I/O ports (@ 1.8 V), including multifunctional I/Os
  • USB 2.0 HS
  • UART
  • I2C
  • 1.8 V SIM interface
  • Industrial temperature range: – 40° C to +85° C
  • REACH and RoHS compliant
  • Output power:
    – Class 3 (0.2 W, 23 dBm) @ LTE
  • Supply voltage range:
    – Nominal: 3.8 V dc
    – Range: 3.2 to 4.5 V dc
