mPLS63

Performance LTE Cat.1 IoT Modem Card

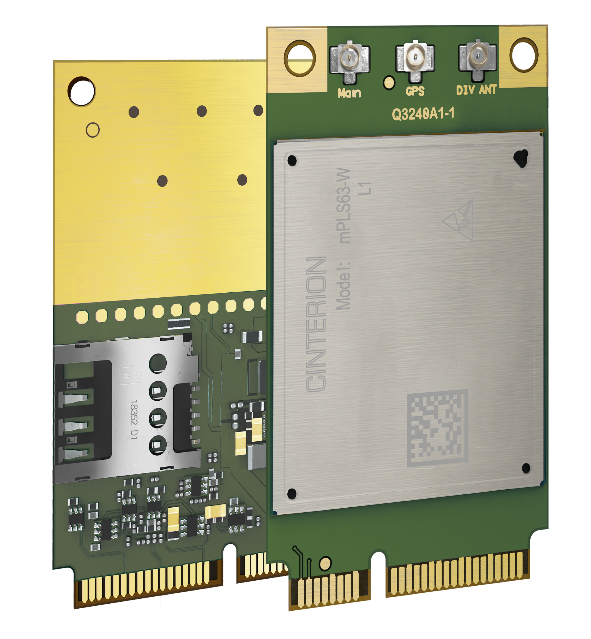

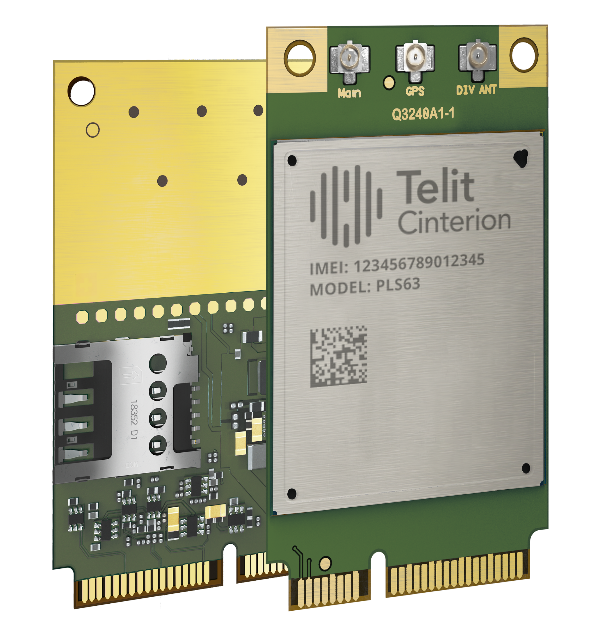

The Cinterion® mPLS63-W IoT Modem Card simplifies global cellular connectivity by providing instant access to LTE Cat. 1 networks optimized for IoT with 3G/2G fallback. It’s offered in a convenient Mini PCIe™ modem card format that simply plugs into an existing Mini PCIe™ modem card slot to provide seamless global IoT connectivity via 18 Band LTE Cat.1, Eight Band 3G HSPA/UMTS, and Quad Band GSM.

Global coverage with fallback options:

  • Global LTE Cat.1 from a single SKU
  • 3G and 2G fallback
  • Data and voice
Telit-Cinterion_mPLS63_dynamic_605h

Product Description

Delivering IoT-optimized speeds of 10 Mbit/s download and 5 Mbit/s uplink, the mPLS63 IoT Modem Card is perfect for applications that need efficient, long-life connectivity and easy integration. This includes vending machines, point of sale terminals, transportation solutions, and industrial automation solutions.

Compact, plug and play Mini PCIe™ modem card:
– Integrated IP connectivity
– VolTE and CSFB voice, embedded GNSS
– Extended set of AT commands
– Embedded Processing

Flexible network usage:
– Dual SIM interface and optional eSIM
– Flexible SIM support
– Global MNO approval

State of the art security:
– Secure boot
– Secure key store
– Key lifecycle management

Easy connectivity and lifecycle management:
– Secure enrollment toward main cloud platforms
– Remote update and device management

Form Factor Family

Mini PCIe™ modem card

Overview

Product Features

  •  3GPP Rel.9 Compliant Protocol Stack
  • FDD-LTE: bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20,26, 28, 66
  •  TD-LTE: bands 38, 40, 41
  • UMTS (WCDMA/FDD): bands 1, 2, 3, 4, 5, 6, 8, 19
  • Quad Band GSM: 850, 900, 1800, 1900 MHz
  • Integrated GNSS support (GPS/BeiDou/GLONASS/Galileo)
  • SIM Application Toolkit, letter classes b, c, e with BIP and RunAT support
  • Control via standardized and extended ATcommands (Hayes, TS 27.007 and 27.005)
  • Embedded IP stack with IPv4 and IPv6 support
  • TCP/IP stack access via AT command and transparent
  • TCP/UDP services
  • Secure Connection with TLS/DTLS
  • Internet Services TCP/UDP server/client, DNS, Ping, HTTP, SMTP, FTP client
  • Data and voice

Specifications:

  • FDD-LTE LTE Cat.1
    DL: max 10.2 Mbps, UL: max. 5.2 Mbps
  • HSPA+ Cat.8 data rates
    DL: max. 7.2 Mbps, UL: max. 5.76 Mbps
  • E/GPRS Class 12
    DL: max. 237 kbps, UL: max. 237kbps
  • SMS text and PDU mode support
  • Multiple Operator VoLTE support, CSFB (circuit-switched fallback)
  • High quality narrow and wideband voice support for handset, headset and hands-free operation (HR, FR, EFR and AMR-WB)

Certifications

  • RED, GCF, FCC, PTCRB, IC, UL, CCC, IFETEL, UKCA, Anatel, JATE, TELEC
  • AT&T (Firstnet), Verizon, Telstra, NTT Docomo, KDDI

Dimensions:

  • 50.95 x 30.00 x 4.70 mm

Supply voltage range:

  • -3.0 – 4.5 V

Operating temperature:

  • -40°C to +95°C

Interfaces:

  • USB 2.0, UART
  • 4 GPIO lines
  • 3FF UICC card holder (USIM IF#1)
  • 2 Hirose 3mm U.FL onboard connectors for Main and
  • RX-Diversity antennas
  • GNSS
  • Digital audio interface (PCM and I2S modes

Special Features:

  • USB Interface features a composite mode, compliant to Windows, Linux and Mac
  • Firmware update via USB and ASC
  • RLS Monitoring (Jamming detection)
  • Informal Network Scan
  • Cell ID based Location Support
  • Module Services
  • eSIM (optional)
  • Embedded Processing (optional)

Drivers:

  • USB, MUX driver for Microsoft® Windows 7™, Microsoft® Windows 8™ and Microsoft® Windows 10™
  • Ofono for Linux
  • RIL Driver for Android
