SE250B4 Series

LTE Cat 4 | Wi-Fi 802.11 a/b/g/n/ac | BLE 5.0

The SE250B4 series is Telit’s second generation of smart modules with Android that supports LTE Cat 4, Wi-Fi and Bluetooth connectivity, and an embedded GNSS receiver in one package.

  • Pre-certified processing power, rich multimedia experience and reliable wireless connectivity in one package for fast time to market
  • Android for easy application development
  • Exceptional application and system performance based on the quad-core A53 @2.0 GHz 64-bit processor
  • Enhanced mobile rendering APIs for image and video applications via Adreno 702 GPU
  • Powered by two Qualcomm Hexagon™ QDSP6 v66K

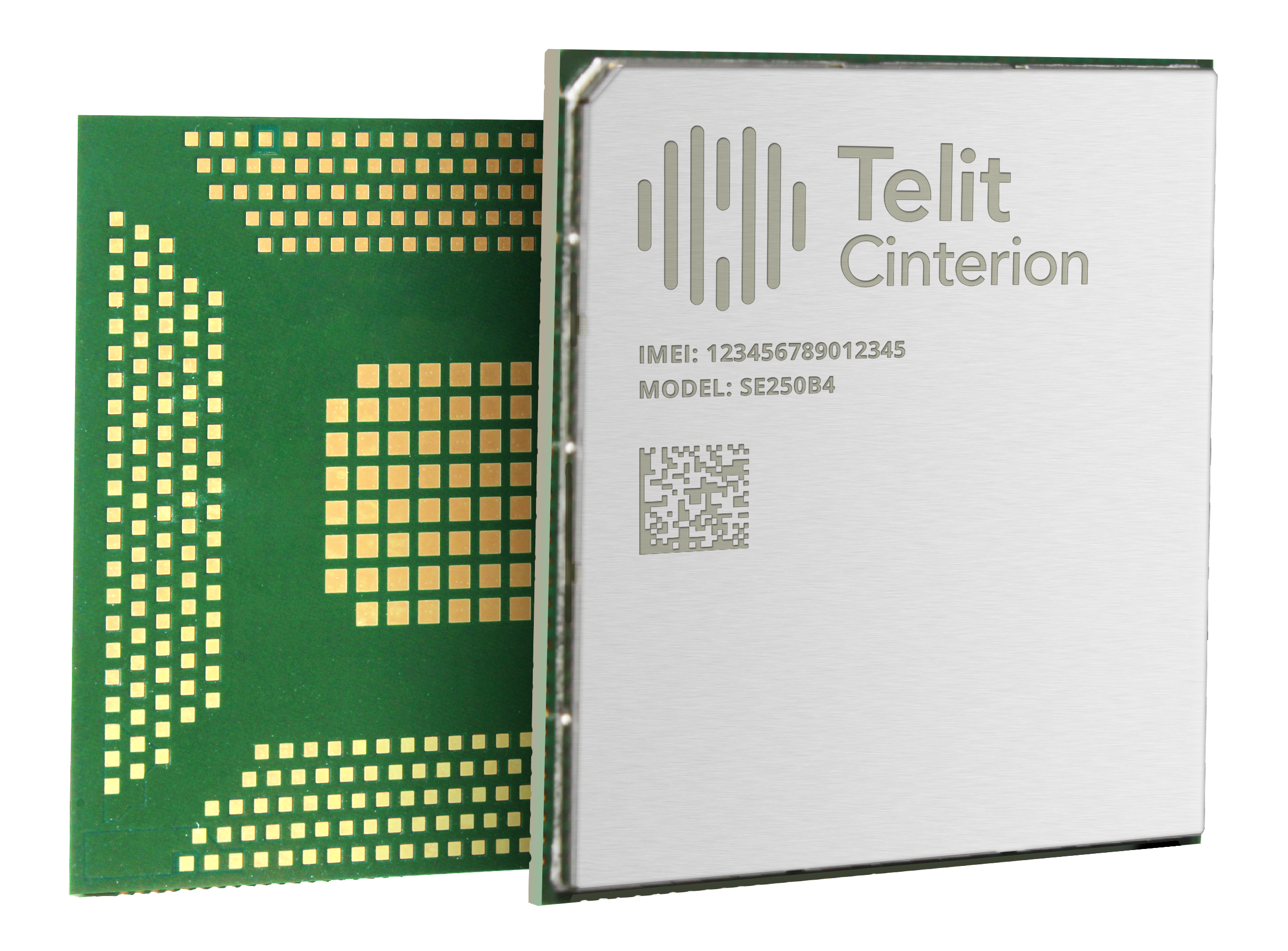

Telit_SE250B4_dynamic

Product Description

The SE250B4 is Telit’s second generation of smart modules with Android that supports LTE Cat 4, Wi-Fi and Bluetooth connectivity, and an embedded GNSS receiver in one package.
Powered by the Qualcomm® quad-core ARM® Cortex®-A53 64-bit processor with built-in Adreno™ 702 GPU, the SE250B4 module is ideal for industrial and consumer applications requiring high data rates, multimedia functions and edge computing capabilities. It provides interfaces to easily connect to displays, cameras and various sensors and come with high-performance application processing and graphical processing power to boost the next generation of smart IoT devices requiring multimedia capabilities. Android allows easy, flexible and streamlined application development and opens access to the biggest software ecosystem for enhanced innovation.

Form Factor Family

LGA grid pad form factor in a convenient 41 x 43 mm square presentation, delivering easy integration for handheld, desktop or commercial IoT devices.

Overview

Product Features

  • LTE-FDD Cat 4
  • Rx diversity and MIMO DL 2 x 2
  • Single Rx option
  • VoLTE support
  • Wi-Fi IEEE 802.11a/b/g/n/ac
  • BLE 5.0
  • Simultaneous support of GPS, GLONASS, Beidou and Galileo
  • Android 11/12/13/14

Certifications

  • FCC, IC, GCF, PTCRB, CP65, BT-SIG, WFA (SE250B4-NA)
  • RED, GCF, RoHS, REACH, BT-SIG, WFA (SE250B4-EU)
  • BT-SIG, WFA (SE250B4-WE)
  • Dimensions: 41 x 43 mm
  • LGA grid pad form factor
  • Temperature range: -30° C to +75° C

Supply Voltage Range:

  • Nominal: 3.8 V dc
  • Range: 3.5-4.4 V dc
User Guides, Documentation, Application Notes and Firmware

Product Comparison

 SE250B4-NASE250B4-EUSE250B4-WE*
MarketNorth America
(AT&T, Verizon, T-Mobile U.S.*)
EU and other regionsWorld-wide, Wi-Fi only (non-cellular)
LTE-FDDBands 2, 4, 5, 7, 12, 13, 14*, 17, 25, 26, 66, 71Bands 1, 3, 5, 7, 8, 20, 28
LTE-TDDBand 41Bands 38, 39*, 40, 41
WCDMABands 1, 5, 8
GSM/GPRS/EdgeBands
3, 8
*planning
