LE910R1 Series

LTE Cat 1 bis

The LE910R1 is an industrial-grade, cost-optimized LTE Cat 1 bis module. It is ideal for IoT applications that need data and voice transmission, including devices requiring full mobility throughout the extended European and Brazil regions.

  • LTE FDD Cat 1 bis 3GPP Release 13 compliant
  • Single LTE antenna
  • VoLTE support
  • SMS over IMS
  • Built-in UDP, TCP, PPP, HTTP, HTTPS, NTP, FTP stack
  • IPv4/IPv6 stack

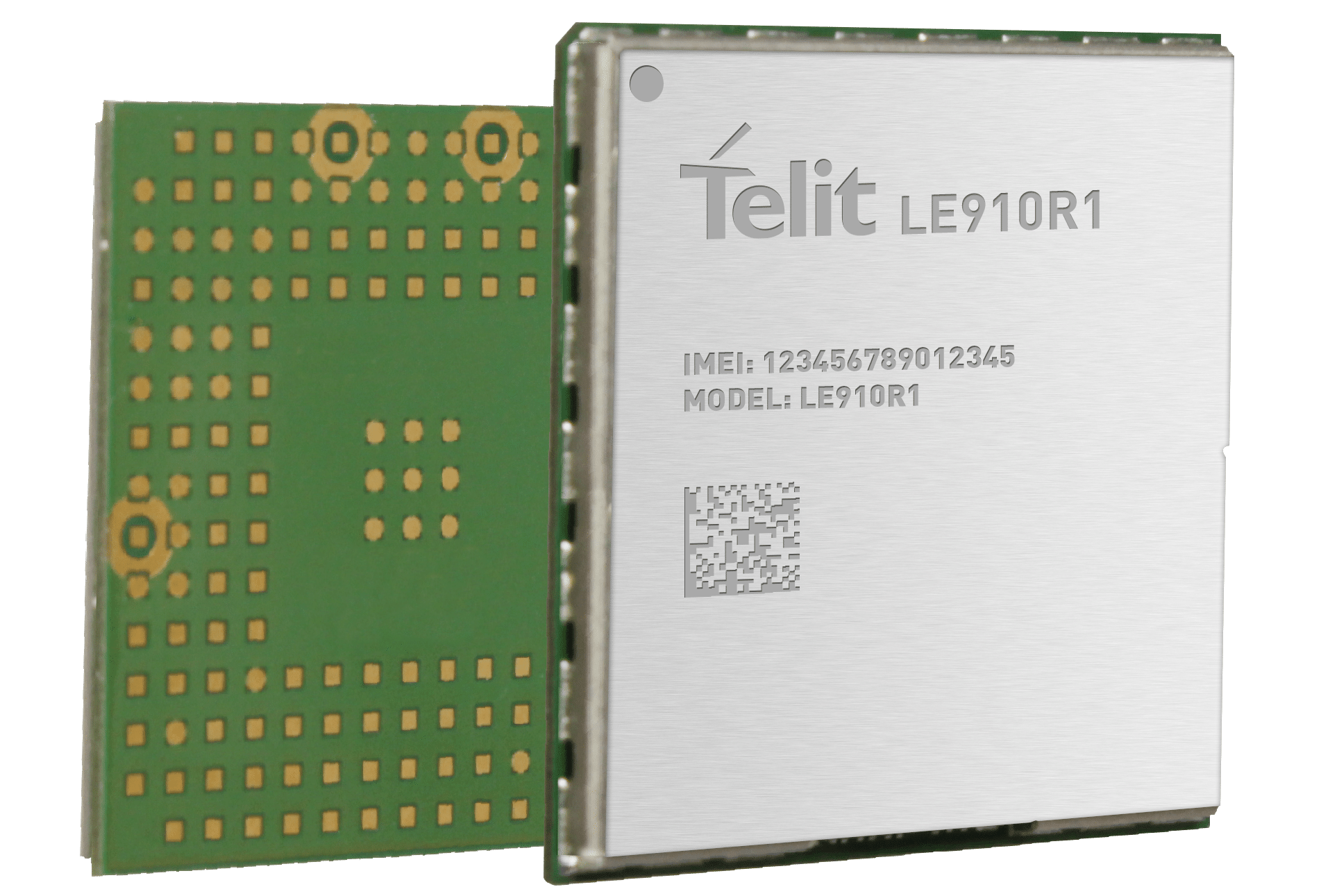

Telit_LE910R1

Product Description

The LE910R1 is an industrial-grade, cost-optimized LTE Cat 1 bis module. It is ideal for IoT applications that need data and voice transmission, including devices requiring full mobility throughout the extended European and Brazil regions.
LE910R1 supports 2G fallback and connecting devices in remote areas where LTE networks have not yet rolled out and voice use cases in the absence of Voice over LTE (VoLTE).
LTE Cat 1 bis is a proven and affordable solution. It is suitable for IoT applications that need a smooth migration from sunsetting 2G and 3G networks. This standard is also ideal for use cases that require higher performance compared to Cat M1 and NB-IoT in terms of:

  • Data rate
  • Latency
  • Mobility
  • Voice support

Form Factor Family

The xE910 28.2 x 28.2 x 2.2 mm LGA form factor is Telit’s broadest, comprised of models in cellular technologies spanning 2G, 3G, and 4G, 3GPP and 3GPP2, supporting optional positioning capabilities in certain models. All form factor family members share basic pinouts, electrical (supply power may vary, check mode specification), and programing interfaces allowing developers to implement a “design once, use anywhere” strategy.

Overview

Product Features

  • LTE FDD Cat 1 bis 3GPP Release 13 compliant
  • Single LTE antenna
  • VoLTE support
  • SMS over IMS
  • Built-in UDP, TCP, PPP, HTTP, HTTPS, NTP, FTP stack
  • IPv4/IPv6 stack
  • Control via AT commands according to 3GPP
  • TS 27.005, 27.007 and Telit custom AT commands
  • SIM application toolkit 3GPP TS 51.01

Certifications

  • RED/GCF (Europe)
  • Anatel (Brazil)
  • Dimensions: 28.2 x 28.2 x 2.2 mm
  • LGA form factor
  • Extended temperature range -40 °C to +85 °C

Supply voltage range:

  • Nominal: 3.8 VDC
  • Range: 3.4 – 4.2 VDC
User Guides, Documentation, Application Notes, and Firmware

Product Comparison

 LE910R1-EULE910R1-BR
MarketEMEABrazil
Frequencies
4G bands (MHz)B1, B3, B7, B8, B20, B28B1, B3, B7, B8, B20, B28,
3G bands (MHz)
2G bands (MHz)B3, B8B2, B3, B5, B8
VoiceVoLTE/2GVoLTE/2G
