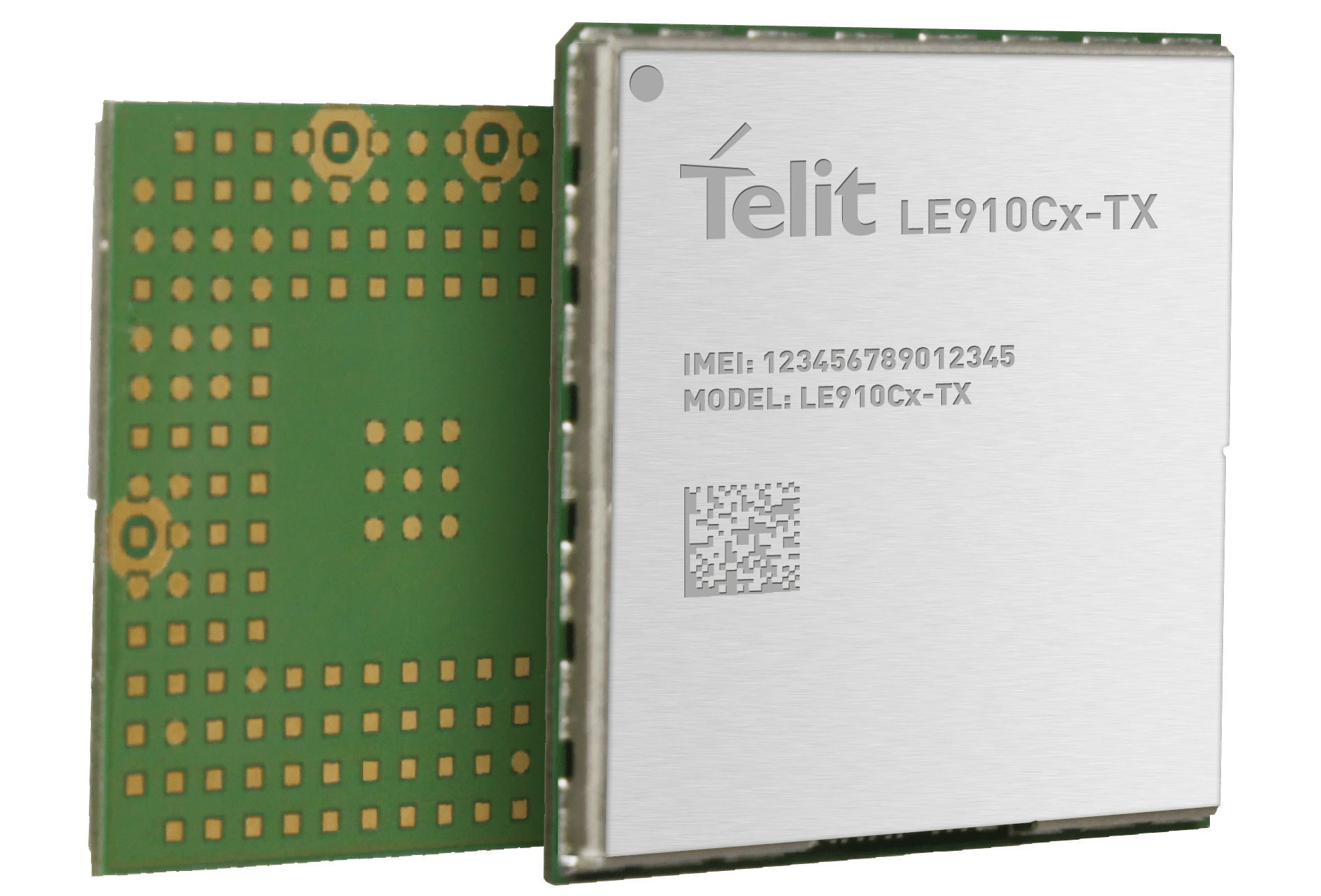

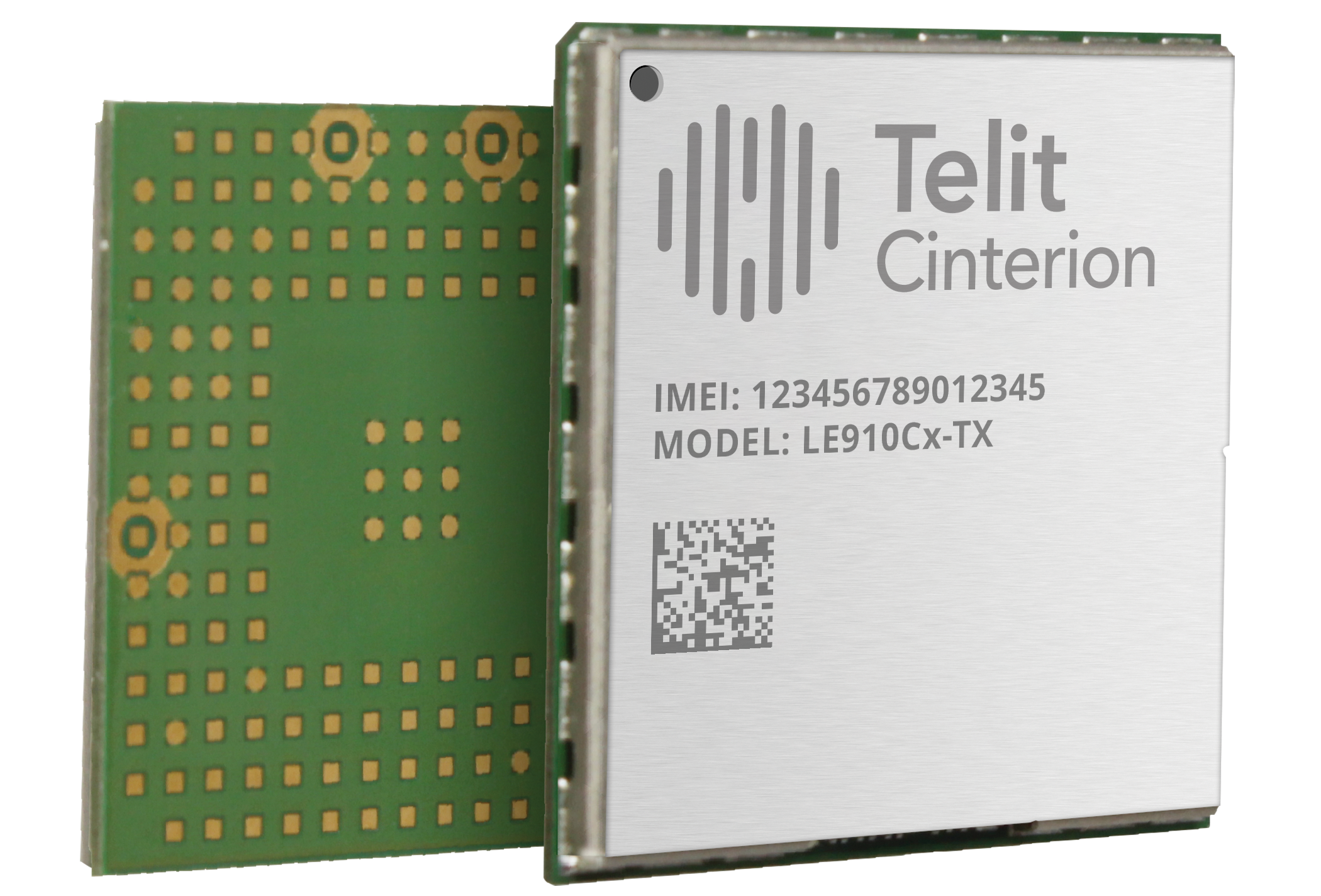

LE910Cx ThreadX Series

LTE Cat 1/4

The LE910C1 and LE910C4 4G LTE modules are compliant with the 3GPP Release 10 and are available with optional quad-constellation GNSS capability.

  • Best-in class 3GPP rel10 platform
  • MTC features ready according to 3GPP Rel.12
  • Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user definable GPIOs
  • Internet friendly with integrated TCP/IP and UDP/IP stacks
  • Simple drop-in migration and technology design reuse path to 2G and 3G with any xE910 module
Contact Us
LE910Cx-TX_dynamic_v1.3
Overview
Tech Specs
Downloads
Related Products
Product Comparison
Product Brief

Product Description

The LE910Cx ThreadX series of 4G LTE modules are compliant with the 3GPP Release 10 and are available with optional quad-constellation GNSS capability. This compact LGA form factor family is available in a variety of configurations, supporting both single-mode and fallback as needed for specific regions, carriers, and use cases.

Form Factor Family

The LE910Cx ThreadX is a member of Telit’s flagship xE910 module family delivering 4G radio access technology in the same, pin-to-pin compatible form factor. The Telit xE910 Unified Form Factor Family is comprised of 2G, 3G, and 4G products sharing a common form factor as well as electrical and programing interfaces which allows developers to implement a “design once, use anywhere” strategy.

Overview

  • LTE FDD Cat.4, 3GPP release 10 compliant
  • LTE FDD Cat.1, 3GPP release 10 compliant
  • Rx Diversity and MIMO DL 2×2
  • Single Rx option
  • VoLTE support
  • SMS over IMS
  • Built in UDP/TCP/FTP/SMTP stack
  • IPv4/IPv6 stack
  • Control via AT commands according to 3GPP
  • TS 27.005, 27.007 and Telit Custom AT commands
  • SIM application Tool Kit 3GPP TS 51.014
  • OMA-DM Telit Software Management
  • Simultaneous support of GPS, Glonass, Beidou, Galileo, QZS
  • FCC /ISED, PTCRB, AT&T, Verizon (North America)
  • RED/GCF (Europe)
  • Dimensions: 28.2 x 28.2 x 2.2mm
  • Dimensions LE910C1-WWX and LE910C4-WWX: 29.4 x 29.4 x 2.2 mm
  • Extended temperature range: -40 °C to +85 °C
  • LGA form factor

Supply voltage range:

  • Nominal: 3.8 VDC
  • Range: 3.4 – 4.2 VDC

Telit application development environment: AppZone C

User Guides, Documentation, Application Notes, and Firmware
Register for Downloads Access Downloads

Related Products

Product Comparison

LE910C1-EUXLE910C1-SAXLE910C1-SAXDLE910C1-SVXLE910C1-WWXLE910C4-WWXLE910C1-WWXDLE910C4-WWXDLE910C1-APXLE910C1-SNX/SNXD
MarketEMEANorth America (AT&T)North America (AT&T)North America (Verizon)EMEA, North America (AT&T, Verizon)
APAC, LATAM		EMEA, North America (AT&T, Verizon)
APAC, LATAM		EMEA, North America (AT&T, Verizon)
APAC, LATAM		EMEA, North America (AT&T, Verizon)
APAC, LATAM		 APAC (NTT/KDD/Telstra)North America (AT&T, Verizon)
Frequencies
4G bandsB1, B3, B7, B8, B20, B28AB2, B4, B12, B66B2, B4, B12, B66B4, B13, B1, B2, B3, B4, B5, B7, B8, B8_US, B9, B12, B13, B14, B18, B19, B20, B25, B26, B28B1, B2, B3, B4, B5, B7, B8, B8_US, B9, B12, B13, B14, B18, B19, B20, B25, B26, B28B1, B2, B3, B4, B5, B7, B8, B8_US, B9, B12, B13, B14, B18, B19, B20, B25, B26, B28B1, B2, B3, B4, B5, B7, B8, B8_US, B9, B12, B13, B14, B18, B19, B20, B25, B26, B28B1, B3, B5, B8, B18(B26) B19, B28B2, B4, B5, B12, B13, B66
3G bandsB1, B3, B8B1, B2, B4, B5, B6, B8, B19B1, B2, B4, B5, B6, B8, B19B1, B2, B4, B5, B6, B8, B19B1, B2, B4, B5, B6, B8, B19
2G bandsB3, B8B2, B3, B5, B8B2, B3, B5, B8B2, B3, B5, B8B2, B3, B5, B8
VoiceVoLTE/3G/2GVoLTEVoLTEVoLTE/3G/2GVoLTE/3G/2GVoLTEVoLTE
