Mid-Speed (Cat 1-4) LTE Module Families

Mid-Speed LTE Modules Portfolio

LE910C1, LE910C4 and LE910S1

Learn about Our Mid-Range LTE IoT Modules

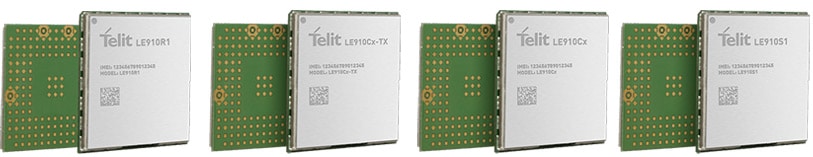

Our flagship xE910 family delivers 4G radio access technology in the 28.2 x 28.2 x 2.2 mm family form factor, based on the “design once, use anywhere” philosophy. This strategy builds in longevity and cost-efficiency into every design created using a form factor family module.

LE910R1

The LE910R1 is an industrial-grade, cost-optimized LTE Cat 1 bis module. It is ideal for IoT applications requiring data and voice transmission and devices that need full mobility throughout Europe and Brazil.

LE910R1 supports 2G fallback and allows device connection in remote areas where LTE networks have not yet rolled out. It also supports voice use cases in the absence of Voice over LTE (VoLTE).

  • LTE FDD Cat 1 bis 3GPP Release 13 compliant
  • Single LTE antenna
  • VoLTE support
  • SMS over IMS
  • Built-in UDP, TCP, PPP, HTTP, NTP, FTP stack
  • IPv4/IPv6 stack

LE910S1-EA

The LE910S1-EA LTE Cat 1 module is 3GPP Rel 9 compliant and offers superior single-antenna radio performance for low-cost, compact devices. This module supports 2G fallback for coverage in remote areas where LTE is not rolled out and circuit-switched voice in the absence of VoLTE. LE910S1 provides seamless roaming and is ideal for devices requiring data and voice transmission and full mobility throughout the extended European region.

  • LTE FDD Cat 1 3GPP Rel 9 compliant
  • Single LTE antenna
  • Optional embedded GNSS receiver
  • Uplink up to 5 Mbps and downlink up to 10 Mbps

LE910C1 and LE910C4

The LE910C1 LTE Cat 1 and LE910C4 LTE Cat 4 3GPP Rel 10 compliant module series are ideal for mid-range IoT and machine-to-machine (M2M) applications. With Band 14 communication making it perfect for first responder applications and an optional GNSS receiver, they deliver concurrent satellite navigation and positioning.

Series Features

  • LTE with 3G/2G fallback variants as needed for specific regions, carriers and use cases
  • VoLTE and circuit-switched voice support
  • MIMO 2 × 2 on the downlink
  • FOTA update
  • Onboard GNSS receiver
  • Support for IoT AppZone application development environment
  • Series range supporting ThreadX in single-mode Cat 1 and 2G/3G fallback in Cat 1, Cat 4
  • Series range supporting Linux in single-mode and 2G/3G fallback in Cat 1, Cat 4

Variants Available

  • Wi-Fi bundled with WE866C3 and WE866C6
  • Wi-Fi/BLE companion modules
  • Embedded value-added services like connectivity and OneEdge™ device management
  • IoT-as-a-Service subscription bundles with connectivity plans and IoT data platform
  • mPCIe data card form factor

Better with IoT Connectivity Plans

We offer a variety of affordable and cost-effective connectivity services and subscriptions to support the unique needs of large, dense, mid-speed LTE IoT deployments.

Our comprehensive connectivity management tools support affordable provisioning, bulk retirement, automatic pausing and reactivation, alerts for devices running in exception, and other services that give you the control and visibility you need over every deployment.

Learn more about our LE910 Cat 1 and Cat 4 modules. Complete the form to qualify for an evaluation.
