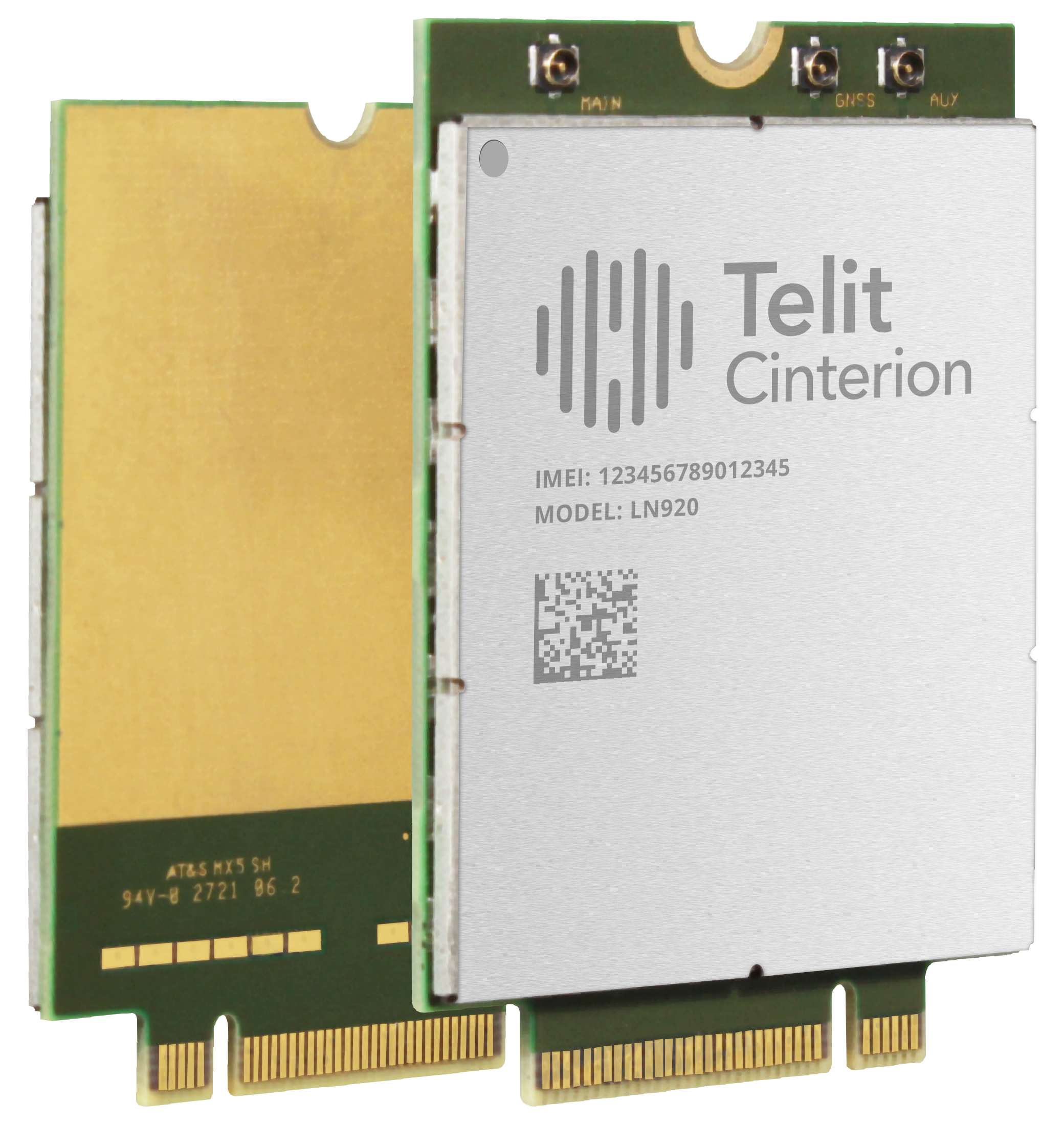

LN920A6-NA

M.2 High-Speed LTE Data Card

The LN920A6-NA is part of Telit Cinterion’s family of high-speed data cards. Designed in the M.2 form factor, it’s an evolution toward 5G technology.

Supports LTE Category (Cat) 6 (300 Mbps peak data rate DL, 50 Mbps UL)

LTE Cat 12, 13 and 6

Embedded GNSS positioning and navigation

Overview

Tech Specs

Downloads

Related Products

Product Comparison

Product Brief

Product Description

The LN920A6-NA is available as LTE Cat 6. This data card supports LTE frequency bands and carrier combinations. Compatible with 3GPP Release (Rel) 12 and certified with major MNOs in the U.S. and Canada

Form Factor Family

These M.2 mini cards were formerly known as the Next Generation Form Factor (NGFF). Telit Cinterion M.2 data cards comply with the B key standard and can be 42 or 50 mm long. Depending on the model, they can be single- and double-sided form factors.

Overview

M.2 form factor
Qualcomm® SDX12 chipset
3GPP Rel 12 compliant
Control via AT commands according to 3GPP
TS27.005, 27.007 and custom AT commands
SIM application toolkit 3GPP TS51.014

SMS over SG and IMS
Firmware over-the-air (FOTA) update
Dual-SIM interface (dual-SIM, single standby)
Secure boot to prevent unauthorized code from being executed on the modem
Security-Enhanced Linux (SELinux) architecture to guarantee maximum data protection

Regulatory: FCC, IC
Industry standard: PTCRB
MNOs: Rogers, Verizon
