LE910S1 Series

LTE Cat 1

LE910S1-EA supports 2G fallback and connecting devices in remote areas where LTE networks have not rolled out yet and voice use cases in the absence of Voice over LTE (VoLTE).

  • LTE FDD Cat.1. 3GPP release 9 compliant
  • Single LTE antenna
  • VoLTE and GNSS support
  • SMS over IMS
  • Control via AT commands according to 3GPP

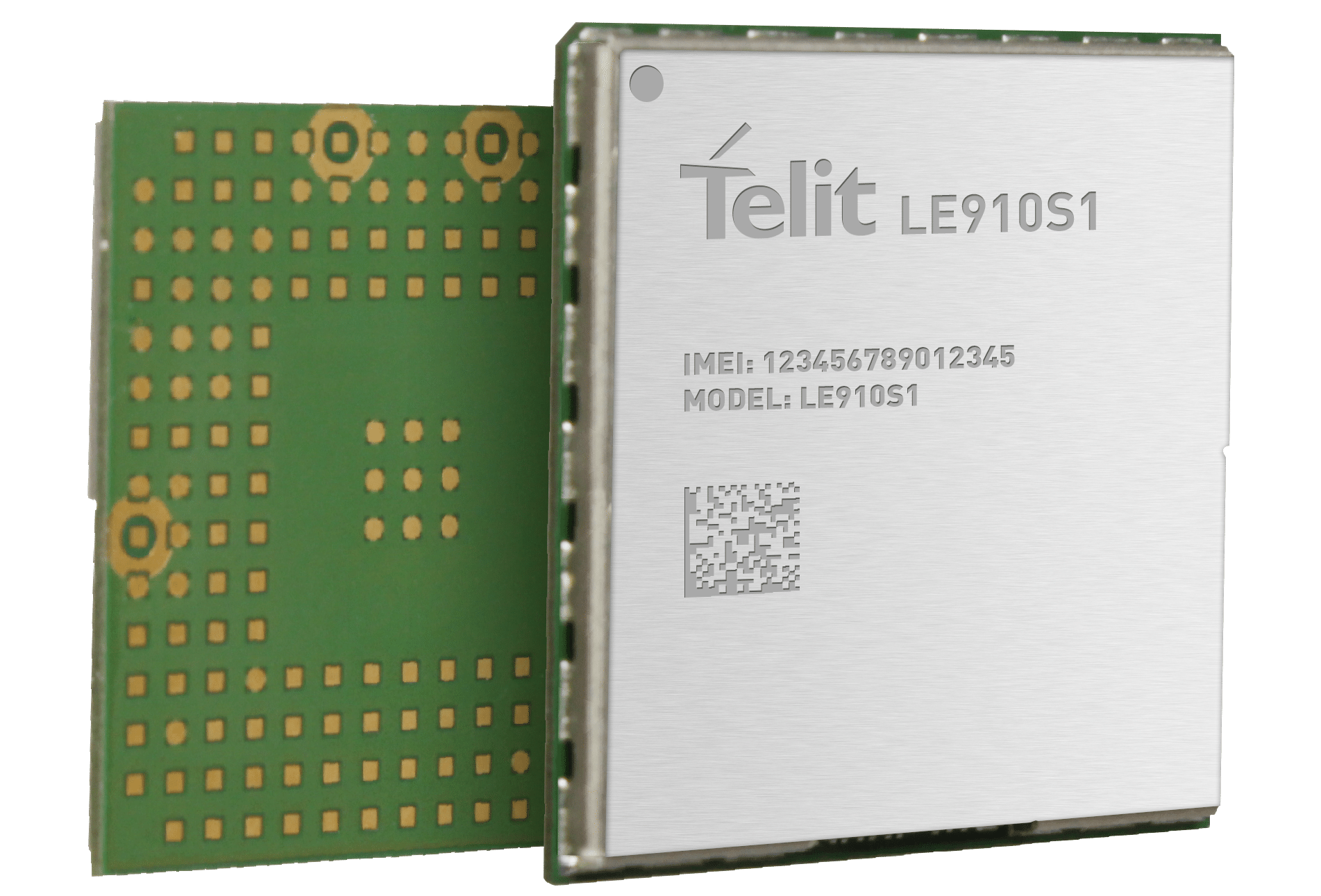

LE910S1_dynamic_v1.3

Product Description

The LE910S1-EA is an industrial-grade, cost-optimized LTE Cat 1 module ideal for IoT applications that need data and voice transmission, including devices requiring full mobility throughout the extended European region.
LE910S1-EA supports 2G fallback and connecting devices in remote areas where LTE networks have not
rolled out yet and voice use cases in the absence of Voice over LTE (VoLTE).

Form Factor Family

The xE910 28.2 x 28.2 x 2.2 mm LGA form factor is Telit’s broadest, comprised of models in cellular technologies spanning 2G, 3G, and 4G, 3GPP and 3GPP2, supporting optional positioning capabilities in certain models. All form factor family members share basic pinouts, electrical (supply power may vary, check mode specification), and programing interfaces allowing developers to implement a “design once, use anywhere” strategy.

Overview

Product Features

  • LTE FDD Cat.1. 3GPP release 9 compliant
  • Single LTE antenna
  • VoLTE support
  • SMS over IMS
  • Built in UDP/TCP/PPP/HTTP/HTTPS/NTP/ FTP stack
  • IPv4/IPv6 stack
  • Control via AT commands according to 3GPP
  • TS 27.005, 27.007 and Telit Custom AT commands
  • SIM application Tool Kit 3GPP TS 51.014
  • GNSS support

Certifications

  • RED/GCF (Europe)
  • Dimensions: 28.2 x 28.2 x 2.2 mm
  • LGA form factor
  • Extended temperature range -40 °C to +85 °C

Supply voltage range:

  • Nominal: 3.8 VDC
  • Range: 3.4 – 4.2 VDC
User Guides, Documentation, Application Notes, and Firmware

Product Comparison

 LE910S1-EALE910S1-EAGLE910S1-ELG
MarketEMEA, APACEMEA, APACEMEA, APAC, LATAM
Frequencies
4G bands (MHz)B1, B3, B5, B7, B8, B20, B28, B38, B40, B41B1, B3, B5, B7, B8, B20, B28, B38, B40, B41B1, B2, B3, B4, B5, B7, B8, B20, B28, B38, B40, B41
3G bands (MHz)
2G bands (MHz)B3, B8B3, B8B2, B3, B4, B8
GNSSYesYes
