Cinterion® LGA DevKit Family

Development Adapter for Cellular LGA IoT Modules

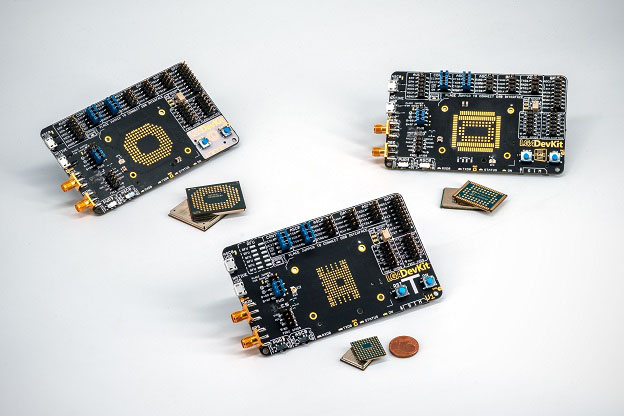

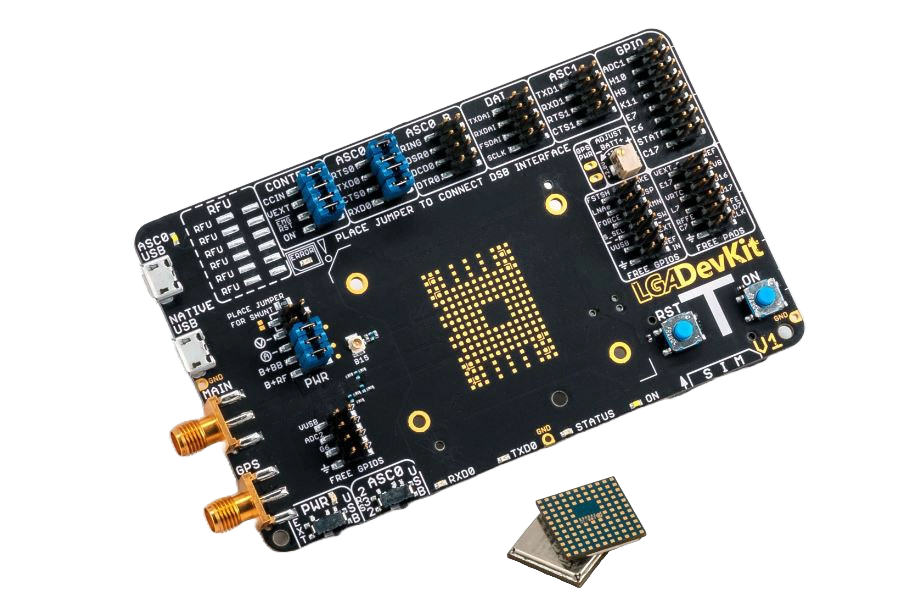

A small board with a chip from the Cinterion® LGA DevKit Family and a coin next to it.

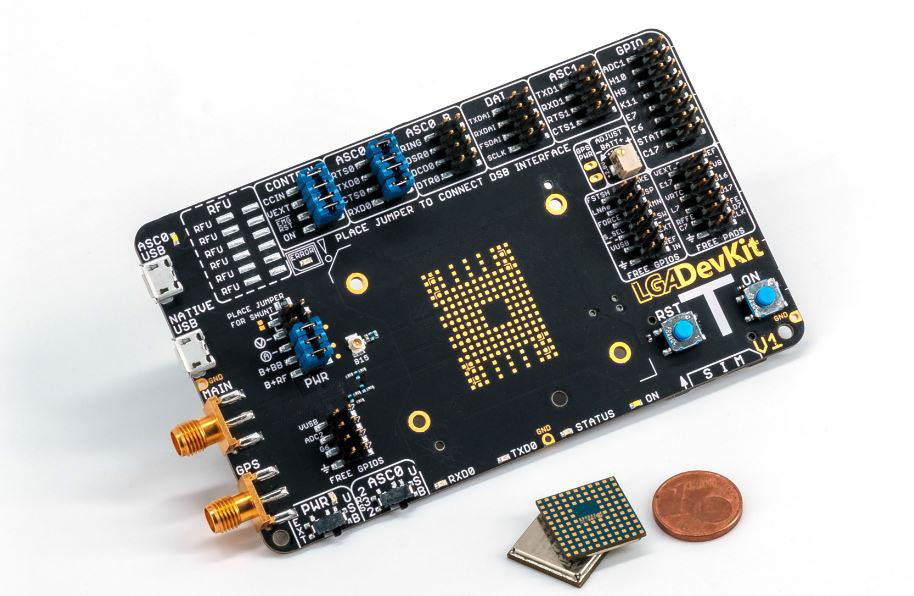

Three Cinterion® LGA DevKit components on a white surface.

The Cinterion LGA DevKit is designed as a generic development adapter for Cinterion LGA modules. With the LGA DevKit, it is no longer necessary to connect the Cinterion evaluation modules to an adapter for test and development purposes.

The LGA DevKit may operate without needing any additional tools or devices, or it can be operated with a port extender— like the DSB75 or DSB-Mini — as an adapter between the module and further external applications.

For our IoT module footprints, we provide three dedicated PCBs. The package contains everything to start immediately. You only need to supply a SIM card and a module.

LGA DevKit variants:

  • SM supports the complete range of industrial platform modules
  • L supports most of the industrial plus platform modules
  • T supports all modules of the latest Things family

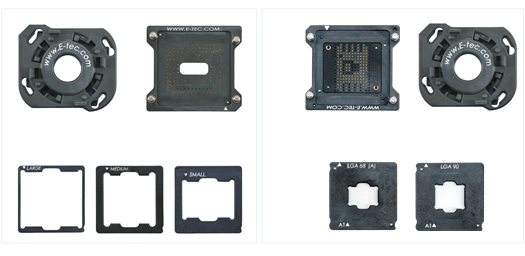

LGA DevKit SM, L and T sockets for the evaluation kits.

With Cinterion LGA Socket SML, we can now support most of our IoT modules.

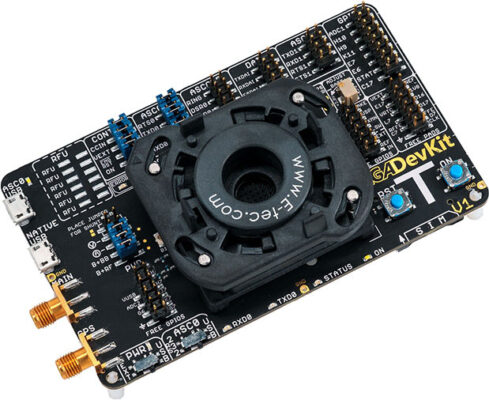

With the Cinterion LGA Socket T, you will have one socket for the complete Cinterion Things family.

All the necessary fixing frames are included.

LGA DevKit Main Features

Future-Proof

Supports current and future IoT LGAs, making evaluation modules and complex development boards unnecessary.

A Simplified Concept with Sophisticated Options

Minimized hardware impacts, great module inter-compatibility, in-depth hardware-level analysis.

Fully Featured Packages

Includes everything you need to start working with LGA modules straightaway.

Manufacturing or in the Factory

Allows ad-hoc incoming module inspection for your manufacturing partners.







Additional Info

Features and Benefits

  • LGA DevKit socket T supports different module footprints with different LGA pad counts for the IoT (Things) platform modules: A (LGA 68), B (LGA 112), C (LGA 140)
  • Future-proof, ready for new, upcoming modules
  • Stand-alone: Get the LGA module up and running without additional tooling
  • Supports DSB75/DSB-Mini as port extender
  • UART via USB VCP or native USB communication
  • Direct module signal access with complete interruption for deep level investigation
  • Real module current consumption measurement, no additional leakage current
  • Powered via USB or external devices (e.g., DSB75/DSB-Mini)
  • Adjustable module supply level: 2.8-4.5 V
  • VEXT self-adjustment for level shifter reference level
  • Further supported interfaces: SPS, SIM2, ASC1, GPIO, GNSS
  • Error detection: Wrong or wrongly oriented modules, as well as shorts on module, preventing damages
  • Clear and easy concept for usage and signaling
  • QR code scanning leads users to all the information necessary for usage



Documentation and Drivers

LGA DevKit SM/L User Guide: Download

LGA DevKit T User Guide: Download

BGS5 Windows Driver for USB: Download

EHSx Windows Driver for USB: Download

ELS31 Windows Driver for USB: Download

ELSx Windows Driver for USB: Download

PLS62-W Windows Driver for USB: Download

PLS83 and PLS63 Windows Driver for USB: Download

ELS62 Windows Driver for USB: Download

EXS82-W and EXS62-W Windows Driver for USB: Download

LGA DevKit SM
Socket SML
(S)mall		LGA DevKit SM
Socket SML
(M)edium		LGA DevKit L
Socket SML
(L)arge		LGA DevKit T
Socket T
(T)hings
BGS12EHS6PDS5TX62
BGS2EHS8PDS6TX82
BGS5ELS61PLS8TN23
EHS5ELS62PLS62
ELS31ELS81PLS63
ENS22PLS83
EMS31
EXS62
EXS82

Order Numbers



LGA Socket SML: L30960-N0110-A100

LGA DevKit SM: L30960-N0111-A100

LGA DevKit L: L30960-N0112-A100

LGA DevKit T: L30960-N0113-A100

LGA DevKit Socket T: L30960-N0114-A100

Cinterion® Module DevKit

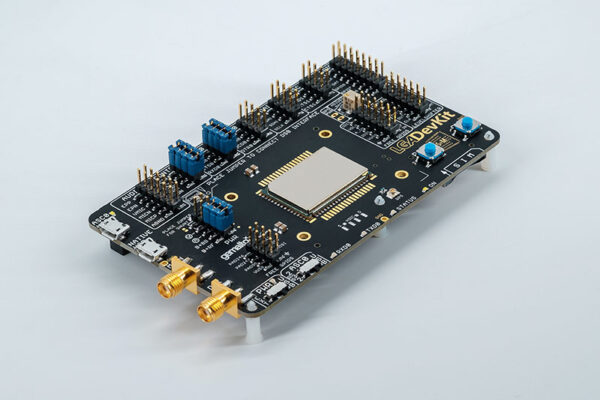

Module DevKit evaluation kit.

The Cinterion DevKit is designed as a generic development board for our cellular LGA IoT modules.

You don’t need the flexibility of our sockets, but still require all the features of the LGA DevKit? For this, we offer various Cinterion Module DevKits with pre-soldered IoT modules from our portfolio.
