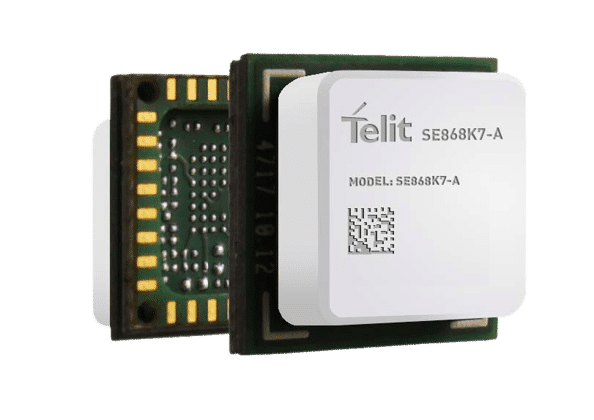

SE868K7-A

Smart Antenna GPS

The tiny and mighty SE868K7-A is the industry’s smallest GPS patch antenna module. Designed with an additional low-noise amplifier (LNA) and surface acoustic wave (SAW) filter, these modules deliver best-in-class performance. The combination of advanced features and an embedded antenna significantly simplifies integration for space constrained applications by eliminating the need for external components.

  • Ultracompact 11 x 11 mm “cavity” PCB package
  • Standard variant with integrated 9 x 9x 4 mm SMT antenna
  • GPS core
  • ROM memory
Contact Us
SE868K7-A_No_IMEI
Overview
Tech Specs
Downloads
Related Products
Product Comparison
Product Brief

Product Description

The SE868K7-A is an enhanced variant of the Telit SE868-AS GPS antenna module. This module is designed as a companion GPS variant of the multi constellation SE868K3-A series and include 9 x 9 mm patch antenna, SAW filter, ROM memory, GPS core, RTC and TCXO. The SE868K7-A uses the same compact 11 x 11 mm “cavity like” PCB package as the SE868-AS and retains its popular footprint while adding a second LNA to increase the RF sensitivity.

Form Factor Family

The SE868 compact form factor is a well established industry standard in a 11 x 11 mm, 32-pad QFN package. Models in the family vary in depth dimension from 2.6 to 6.1 mm depending on presence and type of integrated antenna.

Overview

Features

  • 32-pad QFN package with embedded SMT antenna
  • Embedded 9 x 9 mm SMT antenna
  • Frequency Bands: GPS L1, QZSS L1
  • Standards: NMEA
  • Jamming rejection
  • Additional LNA + SAW filter
  • A-GPS: ephemeris file injection
  • EGNOS, WAAS, GAGAN and MSAS capability embedded with correction of positional errors due to ionospheric and orbital disturbance

Certifications

  • RoHS compliant
  • R&TTE

Environmental

  • Dimensions: 11 x 11 x 6.1 mm (SE868K7-A)
  • Weight: <2 g
  • Temperature range:
    • Operating temperature: -40 to +85°C
    • Storage temperature: -40 to +85°C

Current consumption

  • Backup : ‹ 30 uW
  • Full power tracking: ‹ 70 mW (G+G)
  • Full power acquisition: ‹ 80 mW (G+G)

Sensitivity

  • SE868K7-A
    • Acquisition: -148 dBm
    • Navigation: -161 dBm
    • Tracking: -164 dBm
  • SE868K7-AL
    • Acquisition: -146 dBm
    • Navigation: -159 dBm
    • Tracking: -160 dBm
User Guides, Documentation, Application Notes and Firmware
Register for Downloads Access Downloads

Related Products

SE868K3-A-AL_combined

SE868K3-A & SE868K3-AL

SE878K3-A_No_IMEI

SE878K3-A

SE868K7-A_No_IMEI

SE868K7-A

Product Comparision

GPS / QZSSGLONASSGalileoBDSUARTI2CAdd.
LNA		SAWTrack. SensitivityAcq. SensitivityFlashSize
SE868-A
SE868K3-A
SE868K3-AL		•••••-159
-164
-160		-145
-148
-145		•11 x 11 x 6.1
11 x 11 x 6.1
11 x 11 x 4.1
SE868-AS
SE868K7-A
SE868K7-AL
••-160
-164
-160		-146
-148
-146		11 x 11 x 6.1
11 x 11 x 6.1
11 x 11 x 4.1
