SL869L-V2

Multi-Constellation Positioning GNSS

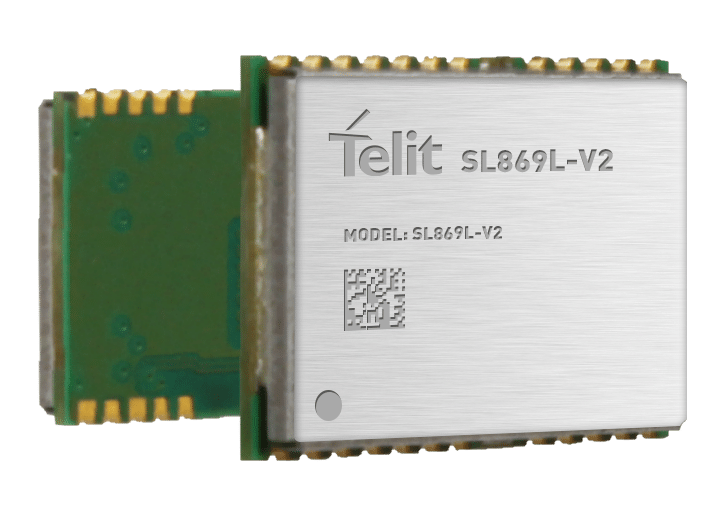

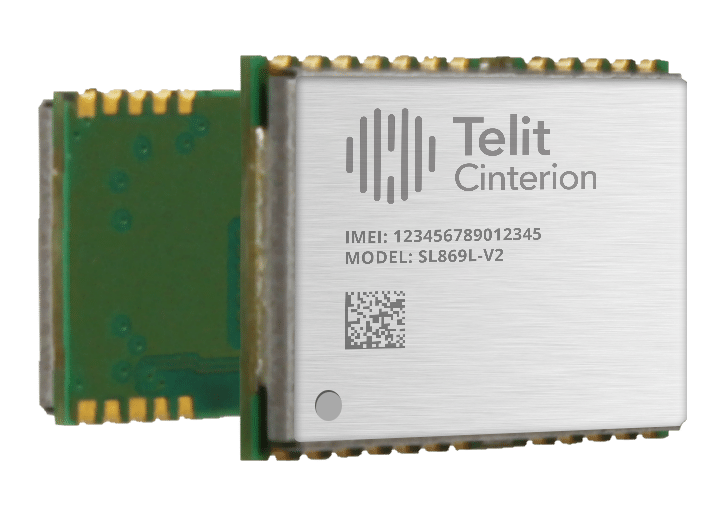

The SL869L-V2 is the evolved variant of the SL869-V2 family of modules based on the low-power Mediatek MT3333. The  SL869L-V2 shares the same pinout and command interface of the standard SL869-V2 but it features an additional LNA, a DC block in the RF front end, and a second communication port selectable between I2C and UART.

  • Based on the Mediatek MT3333 core
  • 16 x 12.2 x 2.4 mm LLC package
  • GPS L1, GLONASS L1, Galileo E1, BeiDou B1, QZSS, SBAS
  • Assisted GPS (both autonomous and server-based)
  • Default 1 Hz up to 10 Hz Navigation
  • Additional LNA and DC-Block
Telit_SL869L-V2_dynamic

Product Description

The SL869L-V2 is the evolved variant of the SL869-V2 family of modules based on the low-power Mediatek MT3333. The new SL869L-V2 shares the same pinout and command interface of the standard SL869-V2 but it features an additional LNA, a DC block in the RF front end, and a second communication port selectable between I2C and UART.

The SL869L-V2 also includes a switching power supply that reduces the total power consumption allowing a superior battery-life span.

Form Factor Family

The SL869 sub-compact form factor is a well established industry standard 16 x 12.2 mm, 24-pad castellated LCC package ideal for manual and automated manufacturing systems.

Overview

Product Features

  • Frequency Band: GPS (L1), GLONASS (L1, FDMA), Galileo (E1), Beidou (B1)
  • Standards NMEA
  • TELIT NMEA commands
  • 99 search and 33 tracking channels
  • SBAS capable (WAAS, EGNOS, MSAS, GAGAN), QZSS
  • Configurable fix reporting. Default: 1Hz, Max: 10 Hz
  • GPS: local ephemeris prediction
  • GPS: server predicted ephemeris
  • Jammer rejection
  • DC-DC block + Additional LNA
  • Supports active or passive antenna
  • GNSS Low Power (GLP) mode
  • Low Power Periodic Mode
  • Antenna Sense
  • Odometer

Certifications

  • RoHS compliant
  • RED

Environmental

  • Dimensions: 16 x 12.2 x 2.4 mm
  • Weight: 1.8 g | 24-pad LCC package
  • Temperature range:
    • Operating temperature: -40° C to +85° C
    • Storage temperature: -40° C to +85°C

Power Supply

  • VCC: 2.8-4.3 V
  • Type: 3.0-3.6 V

Current Consumption: GPS + GLO

  • Acquisition: 86 mW
  • Tracking: 80 mW
  • Standby (Vbatt): 50 uW
  • PTWS commands
  • FW upgradable
  • Locally generated predictions (EASY)
  • Server-generated predictions (EPO)
