SE868K5-SF

Multi-Constellation, Single-Frequency (L1) Positioning GNSS

The SE868K5-SF is a multiconstellation positioning receiver module and last member of the xE868 family. Its compact size, excellent power consumption, strong immunity to interference, and oprimized L1 position engine offer an ideal solution for multiple use cases and applications.
It embeds and internal LNA, SAW, and supports the following:

  • GPS/QZSS in the L1 band
  • Galileo in the E1 band
  • GLONASS in the L1 band
  • BeiDou in the B1 band
  • Satellite-based augmentation systems (SBAS) in the L1 band
Contact Us

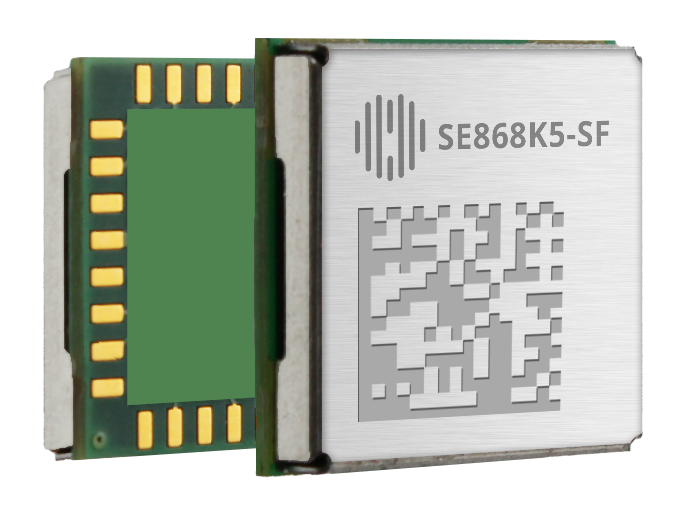

The multi-frequency positioning receiver module is shown on a white background.
Overview
Tech Specs
Downloads
Related Products
Product Brief

Product Description

The SE868K5-D is a multi-constellation positioning receiver module and a member of the xE868 Telit Cinterion form factor family. With is extremely low power consumption, it is ideal for battery powered applications and, thanks to its SAW filter, offers optimal performances even in radio noisy environments or in case of co-location with other technologies. This module can navigate down to -165 dBm and, with its internal LNA, proved optimal performance even in harsh environments.

Form Factor Family

The SE868 sub-compact form factor is a well established industry standard in a 11 x 11mm, 32-pad QFN-like package. Models in the family vary in depth dimension from 2.6 to 6.1 mm depending on presence and type of integrated antenna.

Overview

Product Features

  • 32-pad QFN-like package
  • Frequency bands: GPS L1 C/A, Galileo E1a, GLONASS L1OF, BeiDou B1
  • 75 tracking channels
  • Standards: NMEA/RTCM
  • Jamming rejection
  • Multiple low power modes
  • A-GNSS: Self-generated prediction and ephemeris file injection
  • Up to 10 Hz update rate
  • Telit Cinterion proprietary PTWS commands
  • EGNOS, WAAS, GAGAN and MSAS capabilities embedded with positional error correction for augmented accuracy and integrity
  • Embedded SAW for optimal coexistence and LNA for improved performance
  • Raw measurement output in RTCM format for high-accuracy applications

Certifications

  • RoHS compliant
  • RED and UKCA approvals

Environmental

  • Dimensions: 11 x 11 x 2.8 mm
  • Weight: 1 g
  • Temperature range:
    – Operating temperature: -40° C to +85° C
    – Storage temperature: -40° C to +85° C

Power Supply

  • Main supply: 1.72 V up to 1.89 V
  • RTC supply: 1.62 V up to 1.95 V

Power Consumption**:  full power, 1Hz, at 1.8 V

  • Acquisition: 32 mW (G3BQ); 24 mW (GPS)
  • Tracking: 34 mW (G3BQ); 26 mW (GPS)
  • RTC mode: typical 36 uW (typical)

Sensitivity**: G3BQ

  • Acquisition: -146 dBm
  • Tracking/Navigation: -165 dBm

Horizontal position accuracy:

  • CEP50: <1.5 m

Time To First Fix (90%@ -130dBm)

  • Hot start: 1.5 s
  • Cold start: 30 s

**: preliminary values on early samples

  • PTWS commands
  • Raw measurements (RTCM MSM4, MSM7)
  • Configuration settings saved on NVM
  • Multiple use-modes
  • Multiple low-power modes
  • FW upgradable
  • Locally generated predictions
  • Server-generated predictions
