SE868K5-RTK

Multiconstellation, Real-Time Kinematics (RTK), Multifrequency (L1/E1, L5/E5) Positioning GNSS

The SE868K5-RTK is a multifrequency and multiconstellation positioning receiver module. It is a member of Telit Cinterion’s xE868 form factor family and offers:

A powerful baseband processor
Embedded memory and PSRAM
Integrated LNA for optimal performance

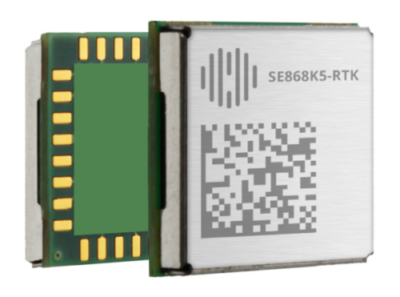

The multifrequency positioning receiver module is shown on a white background.

Overview

Tech Specs

Downloads

Related Products

Product Brief

Product Description

The SE868K5-RTK offers a compact design and optimized positioning engine for high-quality navigation. Its real-time kinematic (RTK) capabilities deliver exceptional performance for applications that require high precision (e.g., precision agriculture and drones).

This module uses two frequencies (i.e., L1/E1 and L5/E5) to enhance location accuracy and reduce multipath effects in urban areas. With the injection of differential corrections, the SE868K5-RTK can achieve centimeter-level accuracy in addition to its standard capabilities.

Form Factor Family

The SE868 sub-compact form factor (11 x 11 mm) is a well-established industry standard in a 32-pad, QFN-like package. Modules in the family vary in depth dimension from 2.6 to 6.1 mm, depending on the presence and type of integrated antenna.

Overview

Product Features

32-pad QFN-like package
Frequency bands: GPS/QZSS L1 + L5, Galileo E1 + E5, GLONASS L1, BeiDou B1 + B2
75 (L1 band)/60 (L5 band) tracking channels
Standards: NMEA/RTCM
Jamming rejection
Support for RTK differential corrections (RTCM input)
A-GNSS: Self-generated prediction and ephemeris file injection
Up to 10 Hz update rate
Telit Cinterion proprietary PTWS commands
EGNOS, WAAS, GAGAN and MSAS capability embedded with positional error correction for augmented accuracy and integrity
Embedded SAW for optimal coexistence and LNA for improved performance
Raw measurements output in RTCM format for high-accuracy applications

Certifications

RoHS compliant
RED

Environmental

Dimensions: 11 x 11 x 2.8 mm
Weight: 1 g
Temperature range:
- Operating temperature: -40° C to +85° C
- Storage temperature: -40° C to +85° C

Electrical and Sensitivity*

Power supply
- From 1.72 V up to 1.89 V
Power consumption (G3BQ): L1 + L5, full power, 1 Hz at 1.8 V
- Acquisition: ~70 mW (with RTK at 1 Hz)
- Tracking/Navigation: ~70 mW (with RTK at 1 Hz)
- RTC mode: 36 µW (typical)
Sensitivity (G3BQ): L1 + L5
- Acquisition: -146 dBm
- Tracking and Navigation: -165 dBm
Horizontal positional accuracy
- CEP50: < 1 m / 1 cm (with RTK)
Time to first fix (90% @ -130 dBm)
- Hot start: 1 s
- Warm start: 18 s
- Cold start: 28 s
