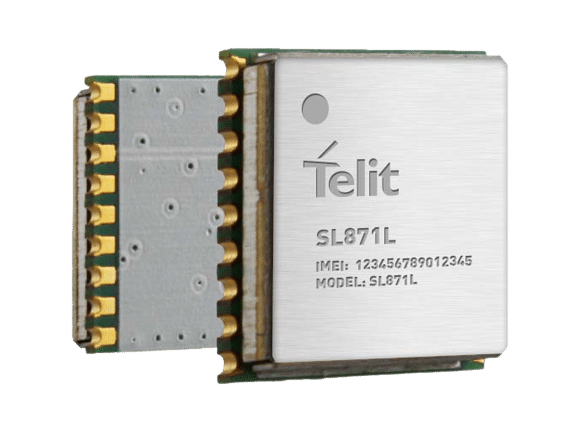

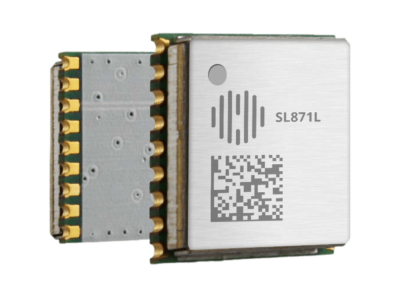

SL871L

Multi-Constellation Positioning GNSS

The SL871L delivers low power consumption and excellent navigation in the industry standard 10.1 x 9.7 mm footprint. An ideal solution for a variety of applications, from weather balloons to dense urban environments, the SL871L includes AGPS, which allows faster time to first fix (TTFF) and low power consumption for longer battery life.

  • Industry standard 10.1 x 9.7 mm footprint
  • AGPS for faster TTFF
  • Ultralow power
  • GPS, GLONASS, BeiDou and Galileo
  • Additional LNA for top-level RF sensitivity
SL871L

Product Description

The SL871L is the latest variant of the SL871 family of modules based on the low-power Mediatek MT3333.

The SL871L shares the same pinout and command interface of the legacy SL871, but it features an additional LNA, a DC block in the RF frontend and a second communication port selectable between I2C and UART. The new SL871L also includes a switching power supply that reduces the total power consumption allowing a superior battery lifespan.

Form Factor Family

The SL871 miniature form factor is a 10.1 x 9.7 mm, 18-pad castellated LCC package ideal for manual and automated manufacturing systems.

Overview

Product Features

  • Frequency band: GPS (L1), GLONASS (L1, FDMA), Galileo (E1), BeiDou (B1)
  • Standards: NMEA
  • Telit NMEA commands
  • 99 search and 33 tracking channels
  • SBAS capable (WAAS, EGNOS, MSAS, GAGAN), QZSS
  • Configurable fix reporting: Default: 1 Hz; Max: 10 Hz
  • A-GPS: locally generated and server-generated ephemeris prediction
  • Jammer rejection
  • DC block + additional LNA
  • Supports active or passive antenna
  • GNSS low-power (GLP) mode
  • Low-power periodic mode
  • Antenna sense

Certifications

  • RoHS compliant
  • RED

Environmental

  • 10.1 x 9.7 x 2.4 mm, 18-pad, industry standard
  • LLC castellated edge package
  • Surface mountable by standard SMT equipment
  • Weight: 1 g
  • Temperature Range:
    • Operating temperature: -40° C to +85° C
    • Storage temperature: -40° C to +85° C

Power Supply

  • VCC: 2.8-4.3 V
  • Type: 3.0-3.6 V

Current Consumption: (GPS + GLO)

  • Acquisition: 93 mW
  • Tracking: 76 mW
  • Standby (Vbatt): 50 uW
  • PTWS commands
  • FW upgradable
  • Locally generated predictions (EASY)
  • Server-generated predictions (EPO)
User Guides, Documentation, Application Notes and Firmware

Product Comparison

 GPS/ QZSSGLONASSGALILEOBDSUARTI2CLNADC blockAnt ONAnt senseFlash
SL871
SL871L
SL871-S
SL871L-S
