LE910Cx Linux mPCIe Series

LTE Cat 1/4 | Data Cards

Full-size, One-sided PCI Express Mini Card

  • Best-in class 3GPP Rel 10 platform
  • Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user definable GPIOs
  • Battery-friendly 1.8V GPIO
  • Ideal platform for IoT applications and mobile data and computing devices with ultra-compact design and extended operating temperature range
  • Internet friendly with integrated TCP/IP and UDP/IP stacks
  • Simple drop-in migration and technology design reuse path to 2G and 3G with any xE910 module
  • Firmware over-the-air update
Contact Us Request SIM & Data Plan

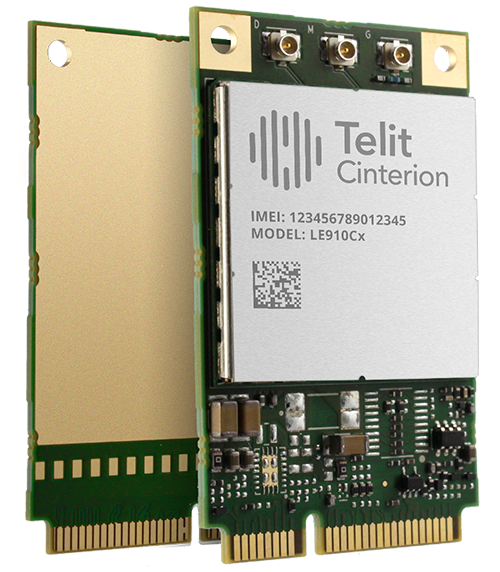

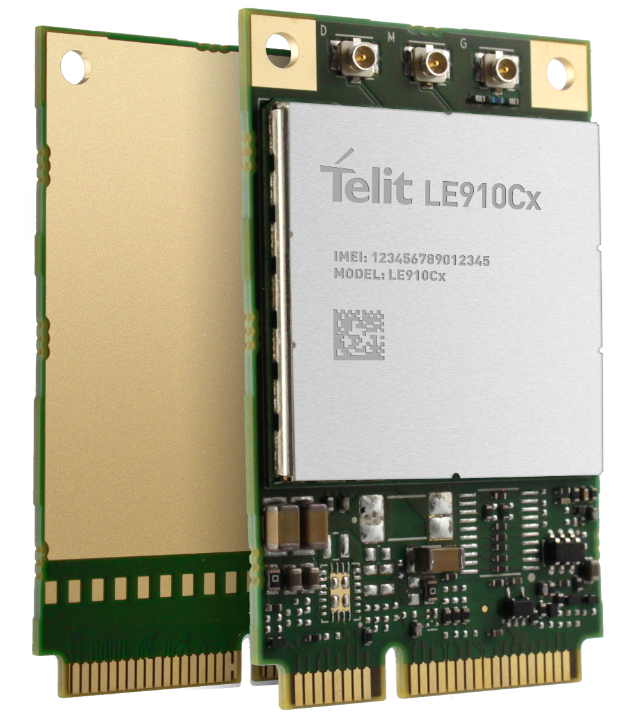

Two Telit Cinterion LE910Cx LTE modules showcase a QR code alongside details like model and IMEI number, complete with connectors and electronic components.
Overview
Tech Specs
Downloads
Related Products
Product Comparison
Product Brief

Product Description

The LE910Cx series mini PCIe (mPCIe) modules are optimized for LTE low category networks and are available in single mode and 3G/2G fallback options. In addition to VoLTE support, the LE910Cx series are swappable with other modules in the xE910 mPCIe family.

– Cat.4 and Cat.1 4G North American market – AT&T, Verizon and T-Mobile
– Cat.4 and Cat.1 4G with 3G fallback for APAC, optimized for the ANZ region and Japan
– Cat.4 and Cat.1 4G with 3G/2G fallback for Europe with full coverage for EU market
– Cat.4 and Cat.1 4G for Latam market with 3G/2G fallback

Form Factor Family

Conforming to specifications from the Peripheral Component Interconnect Special Interest Group (PCI-SIG) electronics industry consortium, Telit Cinterion mini PCIe are 52-pin, single-sided, full-size mini cards on a 51 mm x 30 mm edge-connected board.

Overview

  • LTE FDD Cat 1, 3GPP Release (Rel) 10 compliant
  • LTE FDD Cat 4, 3GPP Rel 10 compliant
  • Rx diversity and MIMO DL 2×2
  • Single Rx option
  • VoLTE support
  • SMS over IMS
  • Built-in UDP/TCP/FTP/SMTP stack
  • IPv4/IPv6 stack
  • Control via AT commands according to 3GPP TS 27.005, 27.007 and Telit Cinterion Custom AT commands
  • SIM application toolkit
  • OMA-DM Telit Cinterion software management
  • Simultaneous support of GPS, GLONASS, BeiDou, Galileo, QZSS
  • FCC/IC, PTCRB, GCF (North America)
  • RCM (Australia)
  • Jade/Telec (Japan)
  • RED/GCF (Europe)
  • REACH and RoHS compliant
  • Dimensions 51 x 30 x 3.2 mm
  • mini PCIe (mPCIe) module
  • Temperature range: -40° C to +85° C
  • Output power: Class 3 (0.2 W, 23 dBm) @ LTE
  • Supply voltage: 3.3 V dc +/- 9%
User Guides, Documentation, Application Notes and Firmware
Register for Downloads Access Downloads

Related Products

FN990A40 and FN990A28 LTE 5G data cards.

FN990A40/A28

TC_LN920

LN920 Series

Two green circuit boards with components and labels, including "Telit Cinterion" and a QR code, are shown standing upright.

ME910G1 mPCIe Series

Three Telit Cinterion PCI express modules are displayed in a staggered formation against a white background.

FN980/FN980m

Product Comparison

LE910C1-NALE910C1-NADLE910C1/C4-APLE910C1/C4-EULE910C1/C4-NFLE910C1/C4-NFDLE910C1-SALE910C1-SADLE910C1-SVLE910C1-STLE910C1/C4-LALE910C4-CN
Market North America (AT&T)North America (AT&T)APAC (Telstra/ NTT-Docomo)EMEANorth America (Public safety, AT&T, FirstNet,
T-Mobile, Verizon + Canada)		North America (Public safety, AT&T, FirstNet,
T-Mobile, Verizon + Canada)		North America (FirstNet, AT&T)North America (FirstNet, AT&T)North America (VZW)North America (TMO US)LATAMChina, India
Frequencies
4G bands (MHz)B2, B4, B12B2, B4, B12B1, B3, B5, B8 B9, B18, B19, B26, B28B1, B3, B7, B8, B20, B28AB2, B4, B5, B12, B143, B14, B66, B71B2, B4, B5, B12, B143, B14, B66, B71B2, B4, B12, B14, B66B2, B4, B12, B14, B66B4, B13B4/66, B2, B12, B71B1, B2, B3, B4, B5 B7, B28B1, B3, B5, B8 TDD: B38, B39, B40, B41B41, TD-SCDMA:
B34, B39
3G bands (MHz)B1, B2, B4, B5, B8B1, B2, B4, B5, B8B1, B5, B6 B19, B8B1, B3, B8B2, B4, B5B2, B4, B5B1, B2, B4, B5B1, B8
2G bands (MHz)B2, B3, B5, B8B2, B3, B5, B8B3, B8B2, B3, B5, B8B3, B8
VoiceVoLTE/3G/2GVoLTE/3GVoLTE/3GVoLTE/3GVoLTEVoLTEVoLTE/3G/2GVoLTE/3G/2G
