FN990A40/A28
FN990A40-HP/A28-HP

LTE/5G Data Card

These data cards lay the foundation for businesses worldwide to future-proof IoT, enterprise applications and video. They leverage 5G and Gigabit LTE benefits immediately.

  • Supports 5G sub-6 FDD and TDD for global deployment
  • Supports SA and NSA operations and 5G core network
  • Standard M.2 (NGFF) data card form factor
  • Each variant is available with or without PC1.5 support on 5G TDD bands n41, n77, n78 and n79
Contact Us

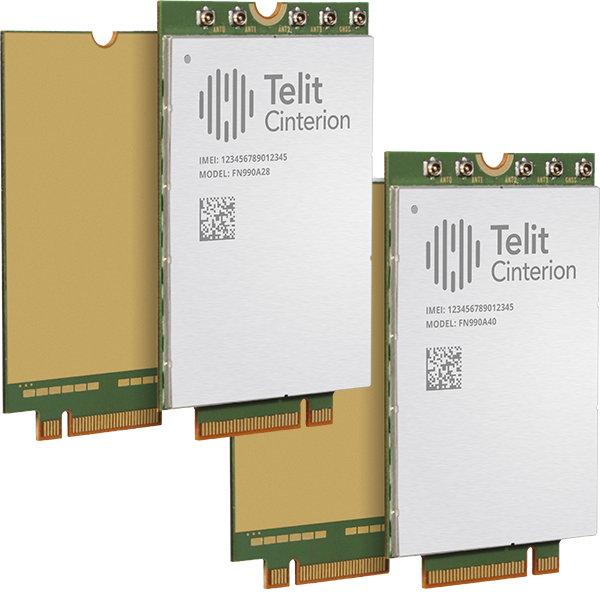

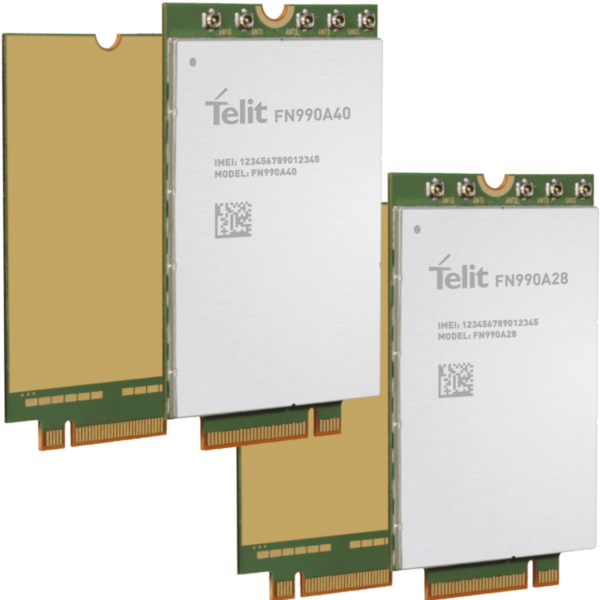

FN990A40 and FN990A28 LTE 5G data cards.
Overview
Tech Specs
Downloads
Related Products
Product Brief

Product Description

The industrial-grade M.2 form factor is suitable for many high-performance and bandwidth-intensive enterprise and industrial applications. Use cases include:

  • Fixed wireless access
  • Enterprise routers and gateways
  • Indoor and outdoor CPE
  • Professional broadcasting and surveillance

Designed for global usage, the FN990A40 and FN990A28 incorporate support for all scenarios prescribed by 3GPP Release (Rel) 16 5G deployments.

  • Opt. 3a/3x and Opt. 2 for full network compatibility
  • Latest generation 4G and 5G Rel 16 4G Cat 20 up to 7xCA for FN990A40 4G Cat 19 up to 5xCA for FN990A28
  • Intraband and interband UL CA supported on 4G networks for improved throughput performance for uplink-centric applications (e.g., surveillance cameras and 4K/8K video streaming)
  • 3G HSPA+ Rel 8 for fallback to legacy networks
  • Support for PCIe Gen 3 and USB 3.1 Gen 2 for maximum application design flexibility
  • Dedicated/shared (switchable) RF path/connector for GNSS L1 to allow total flexibility in the design phase and low losses whenever high sensitivity is required
  • Internal GNSS L1 LNA allows the use of less expensive passive antennas, lowering the total cost of ownership

Form Factor Family

Industry-standard edge-connected M.2 mini cards formerly known as the Next Generation Form Factor (NGFF). Telit M.2 cards comply to the key B standard and can be 42, 50 or 52 mm long, single- and double-sided form factors depending on model.

Cellular Features:

  • 5G sub-6 FDD and TDD, SA and NSA operations
  • 5G core network Opt. 3a/3x and Opt. 2
  • 4G (FN990A40): 7xCA up to 20 layers DL/ 2xCA UL, 256-QAM DL/UL
  • 4G (FN990A28): 5xCA up to 19 layers DL/2xCA UL, 256-QAM DL/UL
  • 3G: HSPA+ Rel 8 (42 DL/11 UL Mbps)

5G FR1 bands

  • n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n75, n77, n78, n79
  • NSA default off – n12, n13, n14, n18, n26, n29, n76
  • SA default off – n12, n13, n14, n18, n26, n29, n76

 5G FR1 bands

  • FN990A28: 120 MHz, 2CC CA DL
  • FN990A40: 200 MHz, 3CC CA DL

Supported LTE bands

  • B1, B2(B25), B3, B4(B66), B26(B5, B18, B19), B7, B8, B12(B17), B13, B14, B20, B28, B29(DL), B30, B32(DL), B34, B38, B39, B40, B41, B42, B43, B46(LAA), B48(CBRS), B66, B71

GNSS: GPSOne™ Gen 9 Band L1 on dedicated RF connector

4 x 4 MIMO DL support on bands:

  • 5G FR1: n1/n2/n3/n7/n25/n30/n38/n40/n41/n48/n66/n75/n77/n78/n79
  • 4G: B1/B2/B3/B4/B7/B25/B30/B38/B39/B40/B41/B42/B43/B48/B66

2×2 MIMO UL support on bands:

  • 5G FR1:n38, n41, n48, n77, n78, n79

Antenna Types: four LTE/sub-6 + one GNSS

FOTA support

Certifications:

FCC, IC, RED, NCC, JATE/TELEC, KC, NCC*, RCM, GCF, PTCRB, AT&T, FirstNet, KDDI, KT*, Telstra, T-Mobile US**, VzW Various MNOs

* FN990A28 only

** Ongoing

Dimensions:

  • 30 x 52 x 2.25 mm

Operating Temperature Range:

  • -40° C to +85° C

LTE/5G Sub-6 Output Power:

  • 23 dBm (Power Class 3)
  • 26 dBm (Power Class 2) in B41/n41
  • 29 dBm (Power class 1.5) on n41, n77, n78 and n79: FN990A28-HP and FN990A40-HP only

Supply Voltage:

  • Nominal: 3.3 V dc

FOTA support

Drivers Support:

  • Windows 10
  • Linux
