LE910Cx ThreadX mPCIe Series

LTE Cat 1/4 | Data Cards

Full-size, One-sided PCI Express Mini Card

  • Best-in class 3GPP Rel 10 platform
  • Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user definable GPIOs
  • Battery-friendly 1.8V GPIO
  • Ideal platform for IoT applications and mobile data and computing devices with ultra-compact design and extended operating temperature range
  • Internet friendly with integrated TCP/IP and UDP/IP stacks
  • Simple drop-in migration and technology design reuse path to 2G and 3G with any xE910 module
  • Firmware over-the-air update
Connect with Sales Get Your Free SIM Starter Kit

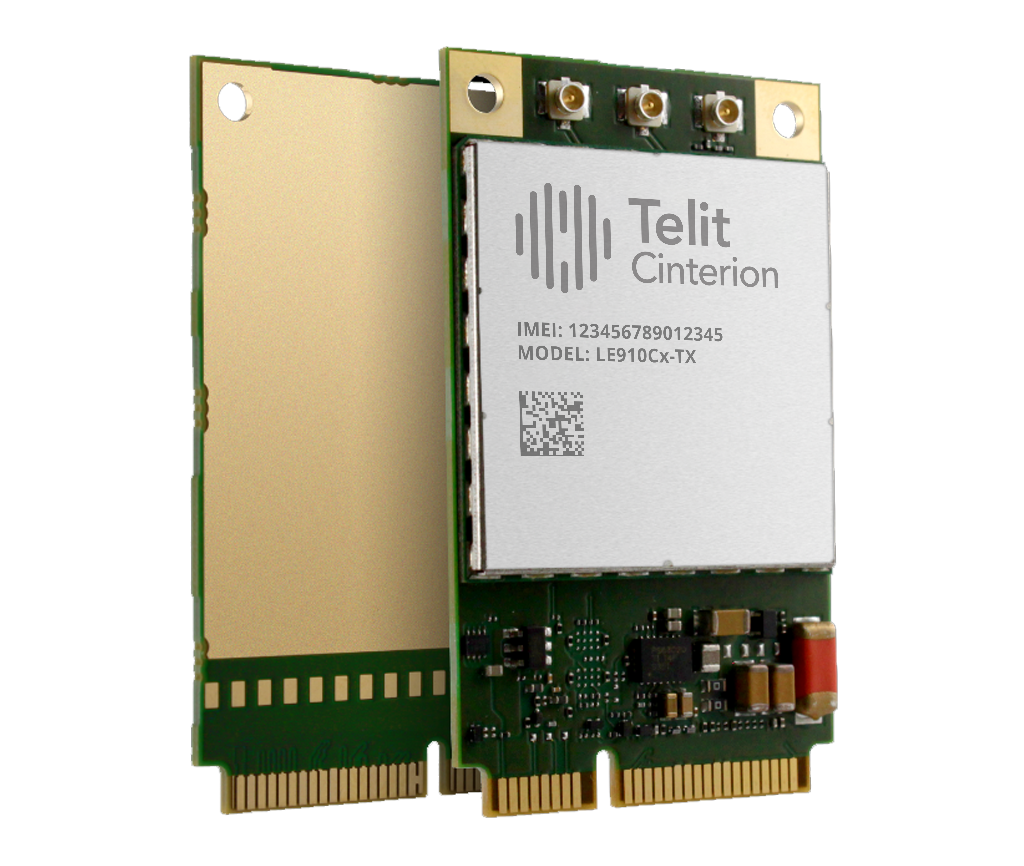

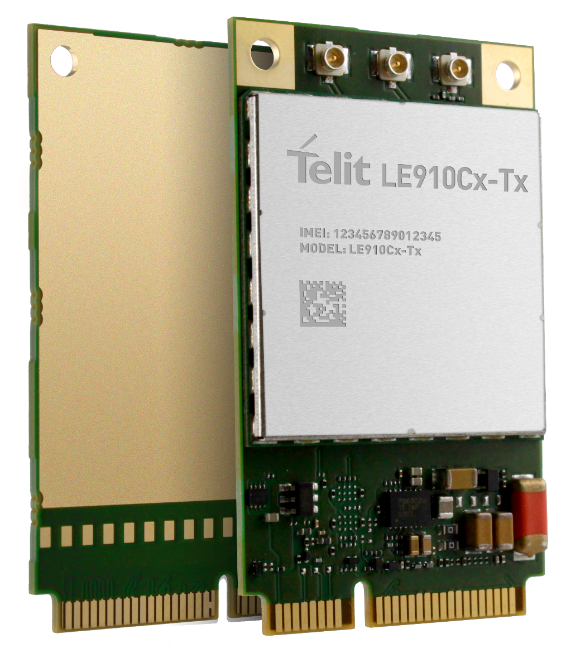

Two Telit Cinterion electronic components are shown, one facing forward displaying IMEI 123456789012345 and model number LE910Cx-TX, while the other is facing backward showing the circuit board.
Overview
Tech Specs
Downloads
Related Products
Product Comparison
Product Brief

Check Distributor Stock

Product Description

The LE910Cx series mini PCIe (mPCIe) modules are optimized for LTE low category networks and are available in single mode and 3G/2G fallback options. In addition to VoLTE support, the LE910Cx series are swappable with other modules in the xE910 mPCIe family.

– Cat.4 and Cat.1 4G North American market – AT&T, Verizon
– Cat.4 and Cat.1 4G with 3G/2G fallback for Europe with full coverage for EU market
– Cat.4 and Cat.1 4G with 3G/2G fallback Global variant
– Cat.1 4G with 3G fallback for APAC, optimized for the ANZ region and Japan

Related Evaluation Kit: EVB 2.0 Module Evaluation and IoT Device Development Kit

Form Factor Family

Conforming to specifications from the Peripheral Component Interconnect Special Interest Group (PCI-SIG) electronics industry consortium, Telit Cinterion mini PCIe are 52-pin, single-sided, full-size mini cards on a 51 mm x 30 mm edge-connected board.

Overview

  • LTE FDD Cat 1, 3GPP Release (Rel) 10 compliant
  • LTE FDD Cat 4, 3GPP Rel 10 compliant
  • Rx diversity and MIMO DL 2×2
  • Single Rx option
  • VoLTE support
  • SMS over IMS
  • Built-in UDP/TCP/FTP/SMTP stack
  • IPv4/IPv6 stack
  • Control via AT commands according to 3GPP TS 27.005, 27.007 and Telit Cinterion Custom AT commands
  • SIM application toolkit
  • OMA-DM Telit Cinterion software management
  • Simultaneous support of GPS, GLONASS, BeiDou, Galileo, QZSS
  • Compliant with GSMA SGP.22 Remote SIM Provisioning (RSP) standard
  • Validated against Telit Cinterion NExT SGP.22 eSIMs
  • FCC/IC, PTCRB, GCF (North America)
  • RCM (Australia)
  • Jade/Telec (Japan)
  • RED/GCF (Europe)
  • REACH and RoHS compliant
  • Dimensions 51 x 30 x 3.2 mm
  • mini PCIe (mPCIe) module
  • Temperature range: -40° C to +85° C
  • Output power: Class 3 (0.2 W, 23 dBm) @ LTE
  • Supply voltage: 3.3 V dc +/- 9%
User Guides, Documentation, Application Notes and Firmware
Register for Downloads Access Downloads

Related Products

A Telit Cinterion module with a green circuit board and metallic casing, featuring a QR code, model number, and gold connectors at the bottom.

FN990A40/A28

Two Telit Cinterion LN920 modules are shown standing upright, displaying the front and back sides of the electronic hardware.

LN920 Series

Two green circuit boards, one showing electronic components and the other displaying a label that reads "Telit Cinterion" with model and serial information.

ME910G1 mPCIe Series

Product Comparison

LE910C1/C4-EUXLE910C1-WWX/C4-WWXLE910C1-WWXD/C4-WWXDLE910C1-APX
MarketEMEAEMEA, North America (AT&T, Verizon)
APAC, LATAM		EMEA, North America (AT&T, Verizon)
APAC, LATAM		APAC (NTT/KDD/Telstra)
Frequencies
4G bandsB1, B3, B7,
B8, B20, B28A		B1, B2, B3, B4, B5, B7, B8, B8_US, B9, B12, B13, B14, B18, B19, B20, B25, B26, B28B1, B2, B3, B4, B5, B7, B8, B8_US, B9, B12, B13, B14, B18, B19, B20, B25, B26, B28B1, B3, B5, B8, B18, B26, B19, B28
3G bandsB1, B3, B8B1, B2, B4, B5, B6, B8, B19B1, B2, B4, B5, B6, B8, B19
2G bandsB3, B8B2, B3, B5, B8B2, B3, B5, B8
VoiceVoLTE/3G/2GVoLTE/3G/2GVoLTE
