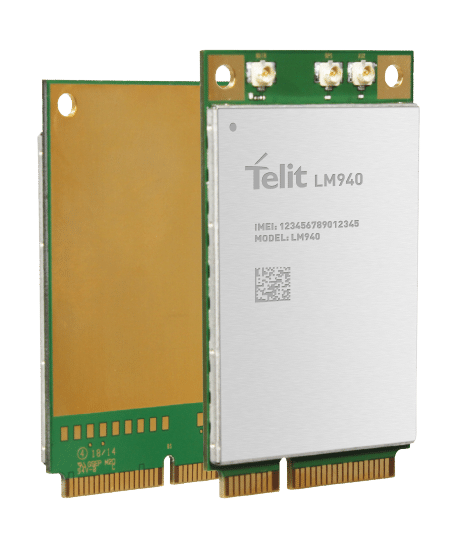

LM940

Advanced LTE | PCI Express

First in its class embedded with Qualcomm® Snapdragon® X12 LTE modem supporting download speeds of up to 600 Mbps. Wide LTE frequency band support and WCDMA fallback technology.

  • LTE Category (Cat) 11 DL/Cat 5 UL Rel 10
    • 3xCA leverages extended capabilities of the network for increased coverage and bandwidth
    • Up to 600 Mbps DL with 3xCA and 256-QAM
    • Up to 75 Mbps UL with 64-QAM
  • HSPA+ Release (Rel) 8
  • Quad-constellation integrated GNSS
  • Full-size, single-sided mPCIe form factor (50.95 x 30 x 2.8 mm)
LM940

Product Description

The LM940 mini PCIe (mPCIe) data card delivers high speed data rates via LTE-Advanced (LTE-A) and offers a cellular connection for products in network appliance environments. This data card is well-suited for products that demand high throughput such as routers, mobile gateways and access points, to provide the most advanced 4G LTE connectivity, ensuring a rich and seamless user experience. Based on LTE Cat 11, the LM940 mCPIe data card achieves download rates up to 600 Mbps supported by the 3GPP Rel 11 with MIMO and LTE carrier aggregation.

Form Factor Family

Conforming to specifications from the Peripheral Component Interconnect Special Interest Group (PCI-SIG) electronics industry consortium, Telit mini PCIe are 52-pin, single-sided, full-size mini cards on a 50.95 mm x 30 mm edge-connected board.

Overview

  • LTE Cat. 11 3GPP Rel 11
    • Up to 600 Mbps DL w/3x CA DL, 256QAM DL
  • HSPA+ Rel 9
    • Up to 42/11.5 Mbps DL/UL
  • Data-only module
  • Control via AT commands according to 3GPP TS27.005, 27.007 and custom AT commands
  • SIM application toolkit 3GPP TS51.014
  • SMS over SG and IMS
  • Firmware over-the-air (FOTA) update
  • Embedded GNSS (GPS, GLONASS, BeiDou, Galileo) receiver with dedicated RF connector
  • Dual-SIM interface (dual-SIM, single standby)
  • Embedded GNSS (GPS, GLONASS, BeiDou, Galileo) receiver with dedicated RF connector
  • Dual-SIM interface (dual-SIM, single standby)
  • FCC/IC, PTCRB, GCF (North America)
  • RED/GCF (Europe)
  • RCM (Australia)
  • Network carriers: AT&T, Sprint, T-Mobile U.S., Telstra, Verizon
  • Dimenisons: 50.95 x 30 x 2.8mm
  • Form Factor: PCI Express mini card type (mPCIE)
  • Temperature range: Operating: -40° C to +85° C; Storage: -40° C to +85° C
  • Operating voltage: 3.1 V-3.6 V (typical 3.3 V)

Drivers

  • USB drivers for Windows 7, 8x, 10 and Linux (Kernel 4.10)
