FE990D50

5G/LTE-Advanced

The Telit Cinterion FE990D50 delivers next‑generation, high‑performance 5G connectivity. The module features 5G sub-6 technology with Gigabit LTE and WCDMA support, along with innovative multiconstellation GNSS.

Built on the Qualcomm Snapdragon® X82 5G Modem‑RF system and compliant with 3GPP Release 18, it is ideal for demanding industrial and enterprise applications. The module features:

  • Non-stand-alone (NSA) LTE/5G New Radio (NR) dual connectivity (EN‑DC)
  • Full 5G NR SA mode
  • Dynamic spectrum sharing (DSS)
  • Network slicing
Connect with Sales Get Your Free SIM Starter Kit

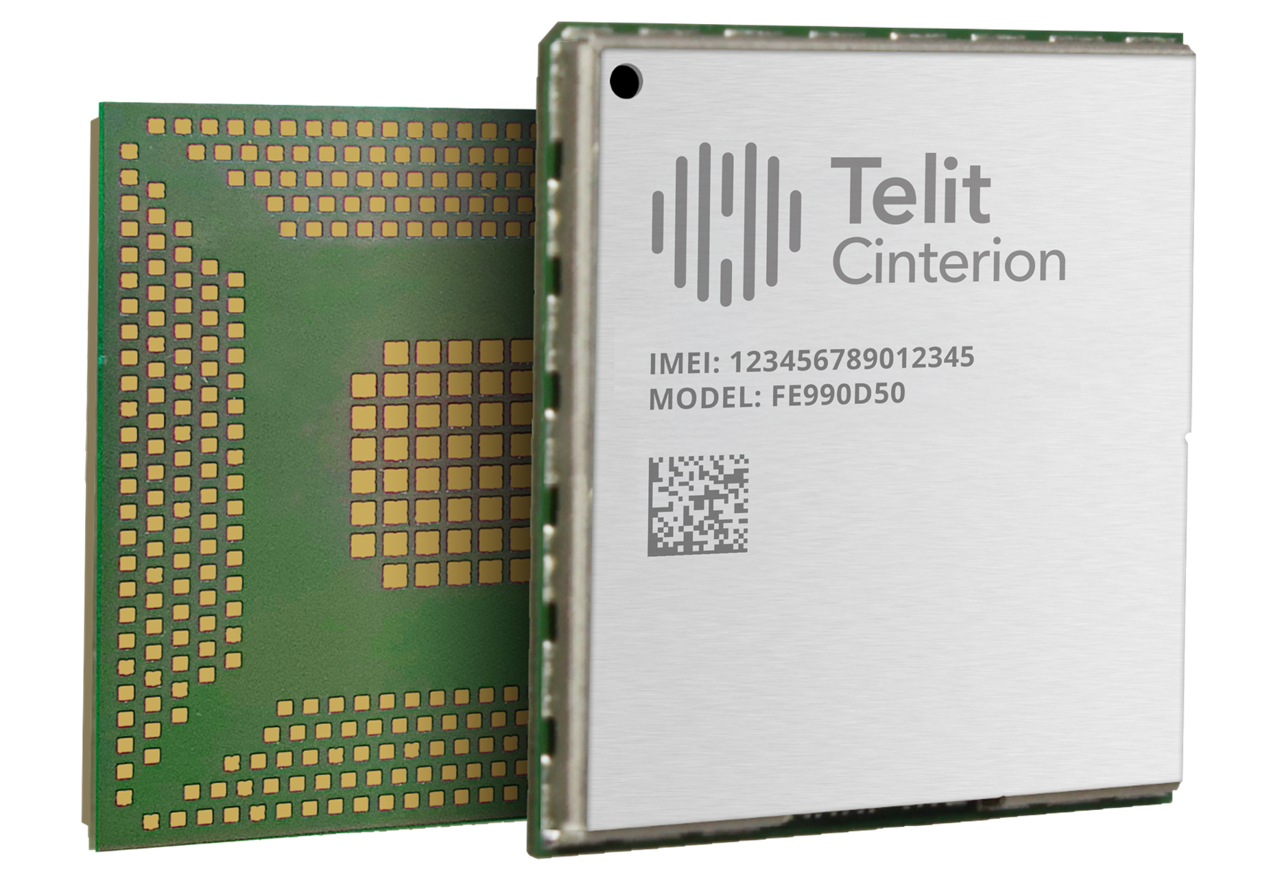

Two Telit Cinterion electronic chips, one showing the front with text and QR code, the other showing the back with a grid of gold contact points.
Overview
Tech Specs
Downloads
Related Products
Product Brief

Product Description

The Telit Cinterion FE990D50 is a next-generation, high-performance 5G LGA module. Its compact and rugged form factor is designed for demanding industrial and enterprise environments.

The module features 5G sub‑6 technology with Gigabit LTE and WCDMA support for robust wireless performance. Its state‑of‑the‑art multiconstellation GNSS receiver ensures reliable positioning.

Engineered for applications requiring rich interfaces and durable hardware, the FE990D50 is ideal for:

  • Indoor and outdoor fixed wireless access (FWA)
  • Video streaming and surveillance systems
  • Mobile and industrial routers and gateways

Related Evaluation Kit: EVB 2.0 Module Evaluation and IoT Device Development Kit

Form Factor Family

The FE990D50 belongs to Telit Cinterion’s FE990 family. It delivers next‑generation 5G performance in a compact 41 × 41 × 2.9 mm LGA form factor. All FE990 modules share the same:

  • Physical interfaces
  • Electrical interfaces
  • Software interfaces

This common architecture enables a true “design once, use anywhere” approach, simplifying integration and ensuring seamless scalability across the FE990 product family.

Product Features:

  • 5G sub-6 FDD and TDD, SA and NSA operations
  • 5G core network Opt. 3a/3x and Opt. 2
  • 4G: 5xCA up to 20 layers DL, 2xCA UL; 256-QAM DL/UL
  • 3G: HSPA+ Rel 8; 42 Mbps DL, 11 Mbps UL (-RW variants only)
  • GNSS: gpsOne Gen 9 with dedicated antenna pad, L1 and L5
  • Antenna ports: four 5G sub-6/LTE and one GNSS
  • Support of up to three Wi-Fi and two Ethernet transceivers
  • Quad core ARM Cortex A55 @ 2.2 GHz
  • Firmware over-the-air (FOTA) support



Certifications:

FE990D60-RWD: Anatel, CE/RED, GCF, Vodafone, Deutsche Telekom, VF*

FE990D60-NAD: FCC, IC, PTCRB, AT&T, T-Mobile U.S., Verizon*





*Planned

Dimensions:

  • 41 x 41 x 2.9 mm

Operating Temperature Range:

  • -40° C to +85° C

Hardware:

  • USB 3.1 Gen 2 and 2.0
  • Up to three PCIe interfaces
  • Two USXGMII interfaces
  • Three UART ports
  • Two 1.8 V SIM card interfaces with DSDS (Dual SIM Dual Standby) support
  • High-performance quad-core CPU and Linux OpenWRT OS, ideal for router development without an external CPU

Drivers Support:

  • Windows 11
  • Linux
