SGL81

Smart LTE Cat 4 Gateway

The next-generation LTE SGL81 IoT Gateway combines field-proven technology with Embedded Processing for a wide range of applications demanding cost-effective LTE Cat-4 speeds. A 20-pin GPIO connector and multiple interfacing options enable applications that require sensor interfacing, actuator control, data processing or protocol translation at the edge.

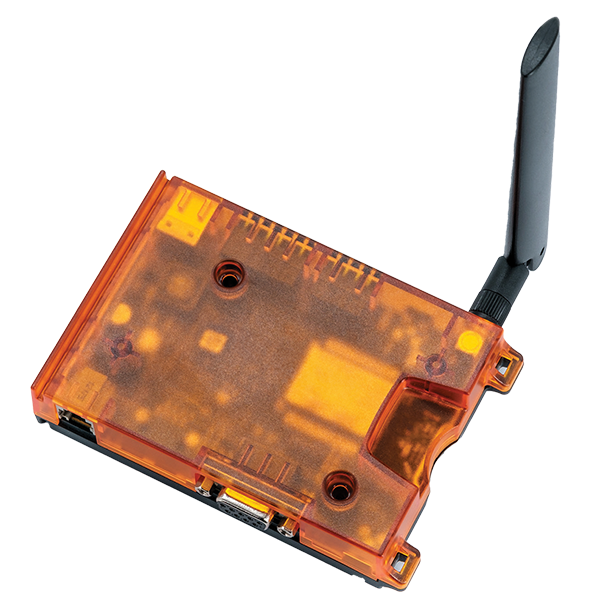

SGL81-600Px

Product Description

An easy-to-use migration option for gateway applications using PLS62T and ELS61T, the future-proof LTE Smart Gateway provides out-of-the-box global LTE Cat-4 connectivity with seamless 3G/2G fallback for a flexible, cost-effective platform to connect industrial assets using field-proven LTE technology.

The 20-pin GPIO connector (GPIOs, SPI, I2C, PWM) and higher bandwidth enables a wider range of applications including video surveillance, robotics, Industry 4.0, remote maintenance & control, smart cities, vending machines, and healthcare applications

Form Factor Family

The next-generation Gateway SGL81 reduces time to market with simplified integration, manufacturing and logistics for a wide range of applications. The SGL81 is available in three variants including USB/RS-232, RS485 and LAN options.

Overview

  • 3GPP Rel.10 Compliant Protocol Stack
    – FDD-LTE: bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66
    – TD-LTE: bands 38, 40, 41
    – UMTS (WCDMA/FDD): bands 1, 3, 2, 4, 5, 6, 8, 19
    – Quad Band GSM: 850, 900, 1800, 1900 MHz
  • Control via standardized commands (Hayes, TS 27.007 and 27.005) and AT commands
  • Embedded IPv4 and IPv6 TCP/IP stack access via AT command and transparent TCP/UDP services
  • Secure Connection with TLS/DTLS
  • Internet Services: TCP server/client, UDP client, DNS, Ping, HTTP client, SMTP, FTP client, MQTT client
  • SIM Application Toolkit with BIP
  • Cinterion® IoT SDK (ThreadX) Embedded processing option with API. Memory space available for embedded applications is 512KB for application code, 1024KB for File System and 12M for RAM.
  • RED, GCF, CE, FCC, PTCRB, IC, UL, UKCA
  • AT&T, ANATEL, RCM and IFETEL
  • Local approvals and major MNO certifications
  • WEEE, EuP, RoHS and REACH compliant
  • Dimension: 113.8 x 75.3 x 25.3 mm (excluding connectors)
  • Weight: 130g (aprox.)
  • Supply voltage range: 8 – 57 V
  • Operating temperature: -30° – +75°C
  • USB, MUX driver for Microsoft® Windows 10™ and Microsoft® Windows 11™
  • RIL Driver for Android
  • Ofono for Linux
