SGX31

Smart LTE-M, NB-IoT Gateway for Edge Computing

The SGX31 Smart Gateway builds on the proven EGX81 IoT gateway solution and adds a GPIO connector for applications requiring sensor interfacing, actuator control, data processing or protocol translation at the edge.
Offering out-of-the-box worldwide Cat-M or NB-IoT connectivity with 2G fallback, the SGX31 Smart IoT Gateway provides a flexible, cost-effective platform for connecting industrial assets using the latest LPWA technology. The smart gateway adds support for USB, a dedicated GNSS antenna and embedded processing via the Telit Cinterion ThreadX SDK.

Contact Us

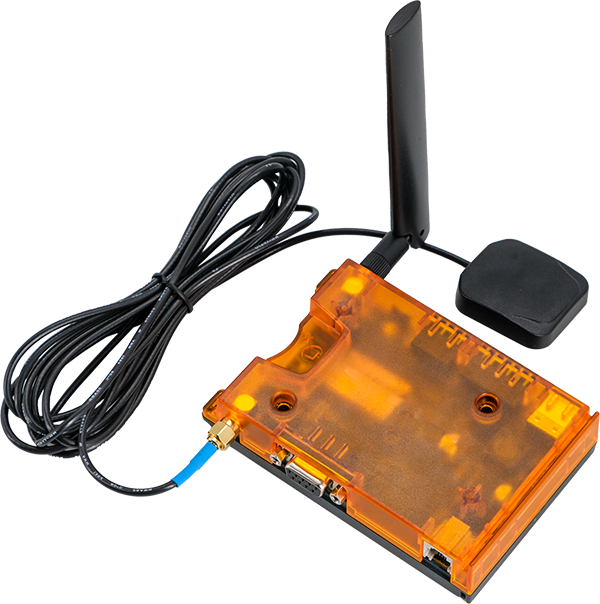

Telit Cinterion SGX31 IoT Gateway
Overview
Tech Specs
Downloads
Related Products
Product Brief

Product Description

The SGX31 offers affordable LTE connectivity with data speeds of up to 300 kbps for applications that require cost-effective, efficient data speeds.

The 20-pin GPIO connector (GPIOs, SPI, I2C, PWM) enables a wider range of applications, making the SGX31 ideal for industrial monitoring, industrial sensors, asset tracking, security and agricultural applications. The gateway connects sensors, IoT modules and smart devices to the cloud, giving devices access to the Internet with edge computing.

Form Factor Family

The Cinterion® SGX31 Smart Gateway reduces time to market with simplified integration, manufacturing and logistics for a wide range of applications.

The next-generation gateway is designed to operate in an extended temperature range of -30°C to +75°C for industrial applications

Overview

  • • LTE Cat. M1/NB1/NB2
    – FDD-LTE Bands for LTE Cat M1: 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 27, 28, 66, 85
    – FDD-LTE Bands for LTE Cat NB1/NB2: 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 28, 66, 71, 85
    – Quad-Band GSM: 850, 900, 1800 and 1900 MHz
    – Data only
  • GNSS support (GPS, GLONASS, BeiDou, Galileo)
  • SIM Application Toolkit with BIP
  • Control via standardized commands (Hayes, TS 27.007 and 27.005) and Gemalto M2M AT commands
  • Embedded IPv4 and IPv6 TCP/IP stack access via AT command and transparent TCP/UDP services
  • Internet Services: TCP server/client, UDP client, DNS, Ping, HTTP client, FTP client, MQTT client
  • Secure Connection with TLS/DTLS
  • RED, CE, FCC, UKCA, IC, UL, CCC
    – GCF, PTCRB
  • Local approvals and major MNO certifications REACH, RoHS and EuP compliant
  • CTIA Cybersecurity
  • Dimension: 191 x 143 x 44 mm (excluding connectors)
  • Weight: 130g (aprox.)
  • Supply voltage range: 5 – 30 V
  • Operating temperature: -30°C to +75°C
  • Windows® 10 and 11
  • Linux®
