EGX81-W

LTE M, NB-IoT and 2G connectivity

The EGX81 Efficient Gateway raises the bar on IoT simplicity by quickly connecting Industrial IoT solutions with virtually zero design-in time and minimal integration effort. It greatly accelerates time to market offering plug and play Low Power Wide Area (LPWA) global connectivity that supports an easy evolution to 5G mMTC technologies.

The compact, feature-rich device allows you to select LTE-M, NB-IoT, and 2G connectivity, out of the box, from a single global SKU. An ultra-rugged housing and range of highly efficient IoT-optimized data speeds make the EGX81 gateway ideal for battery-operated, remote use cases such as track and trace, smart meters, smart city, agriculture, connected sensors and healthcare applications.

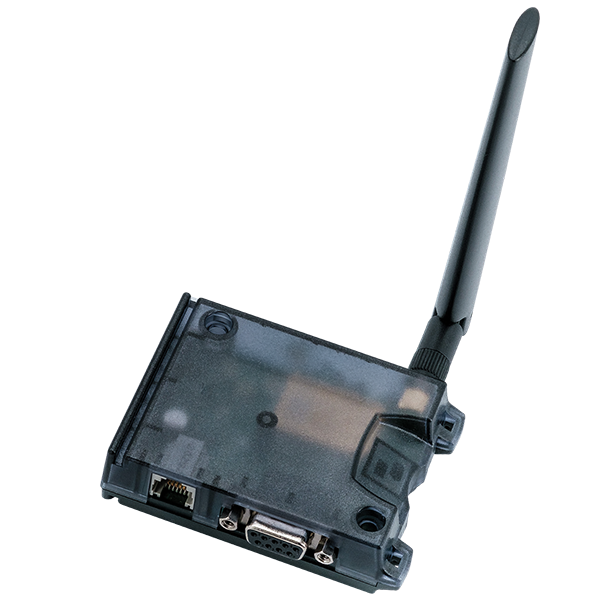

Telit Cinterion EGX82 IoT Gateway

Product Description

The compact, feature-rich device delivers out of the box LTE-M, NB-IoT and 2G connectivity from a single global SKU. An ultra-rugged housing and range of highly efficient IoT-optimized data speeds make the EGX81 gateway ideal for battery-operated, remote use cases such as track and trace, smart meters, smart city, agriculture, connected sensors and healthcare applications.

Form Factor Family

Sharing the same form factor as the EGX82, the EGX81 reduces time to market by simplifying integration, manufacturing and logistics for a wide range of use cases. It is designed to operate in an extended temperature range for industrial applications.

Overview

  • LTE Cat. M1/NB1/NB2
  • FDD-LTE Bands 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 27, 28, 66
  • Quad‐Band GSM: 850, 900, 1800 and 1900MHz Data only
  • SIM Application Toolkit with BIP
  • Control via standardized commands (Hayes, TS 27.007 and 27.005) and  M2M AT command
  • Embedded IPv4 and IPv6 TCP/IP stack access via AT command and transparent TCP/UDP services
  • Internet Services: TCP server/client, UDP endpoint/client, DNS, Ping, FTP client, HTTP client, MQTT client, and CoAP client
  • Secure Connection with up to TLS 1.3/DTLS 1.2
  • Secure Connection with TLS/DTLS
  • Supply voltage range: 5 ‐ 30 V
  • RED, CE, FCC, IC, UL, CCC
  • GCF, PTCRB
  • Local approvals and major MNO certifications
  • REACH, RoHS and EuP compliant
  • CTIA Cybersecuritynt
  • Weight: 65g
  • Supply voltage range: 5 – 30 V Dimension: 80 x 55 x 23 mm (excluding connectors)
  • Operating temperature: -30° – +75°C
  • IoT Suite Services: software updates, trusted identity
  • Driver for Windows® 7 / Windows® 8 /Windows 10 Driver for Linux
  • Firmware update via serial interface
  • Real time clock with alarm functionality
  • Flexible mounting concept (DIN rail mounting, C-rail mounting, Screw fixing, use of cable ties)
  • Programmable hardware watchdog
