BlueMod+S50

Bluetooth® 5.0 Low Energy

The BlueMod+S50 is Telit’s Bluetooth single mode BT 5-qualified module. This module enables device vendors to Bluetooth Low Energy (BLE) 5.0 connectivity quickly and cost-effectively to their products.

  • Stand-alone or Bluetooth-hosted applications
  • Bluetooth 5 qualified module
  • 2 MB/s PHY for LE
  • Broadcasting channel improvements
  • Powerful Cortex M4F MCU

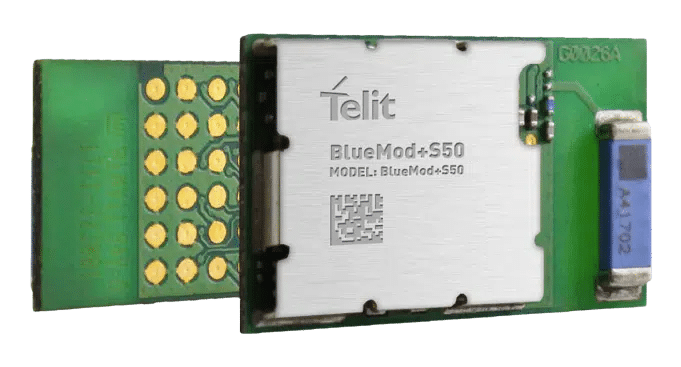

Bluemod+S50_No_IMEI

Product Description

The BlueMod+S50 is Telit’s Bluetooth single mode BT 5-qualified module. This module enables device vendors to Bluetooth Low Energy (BLE) 5.0 connectivity quickly and cost-effectively to their products. Advanced features include NFC handover and support for terminal I/O and most GATT-based profiles.

Form Factor Family

The Telit BlueMod family is a sub-compact 10 x 17 mm 48-pad LGA form factor designed for ease of integration of Bluetooth functionality into consumer and industrial devices.

Overview

Product Features

  • BLE 5.0
  • Host interfaces: UART
  • Other interfaces: I²C, SPI, PWM, ADC
  • GPIOs: Up to 21

Certifications

  • FCC/ISED/RED/ANATEL/SRRC/WPC/TELE-JRL/KCC

Hardware Specifications

  • LGA 48 pads
  • Length x width x height: 17 x 10 x 2.6 mm
  • Temperature range: -40° C to +85° C

Electrical Specifications

  • Power supply: 1.7 V to 3.6 V

Software Features

  • Terminal I/O central and peripheral support for fast and easy data exchange
  • Host access to up to four concurrent connections; host access to generic GATT client/server for data exchange with third-party devices
  • Host access to BT scanning functionality for implementing location based services (RSSI based)
  • NFC handover
  • Support for OTA firmware update
  • Automatic external clock detection (32 kHz)
  • iOS and Android sample application available in source code
