WE866C6-P

802.11 a/b/g/n/ac

The WE866C6-P is a dual-band (2.4 and 5 GHz), one-stream (1 x 1) 802.11 ac Wi-Fi and Bluetooth® (Bluetooth®/Bluetooth® Low Energy 5.0) module with an extremely small footprint that provides an easy and cost-effective way for manufacturers to add short-range, wireless connectivity to their products.

  • Fully integrated, dual-band Wi-Fi Bluetooth® Low Energy 5.0 combination IoT module
  • Companion module for LTE cellular modules
  • High-bandwidth Wi-Fi/Bluetooth® Low Energy transceiver for Linux-based system
  • Advanced security features (including WPA3) with integrated crypto hardware
  • Industrial-grade temperature range (-40° C to +85° C)
  • xE866 Telit Cinterion form factor: design once and deploy globally
  • Certified module
  • Low power consumption
Contact Us

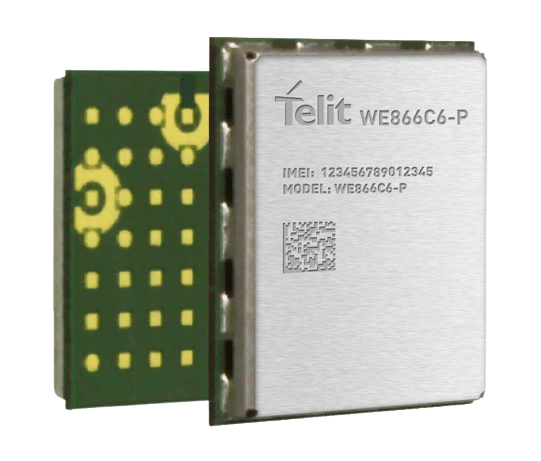

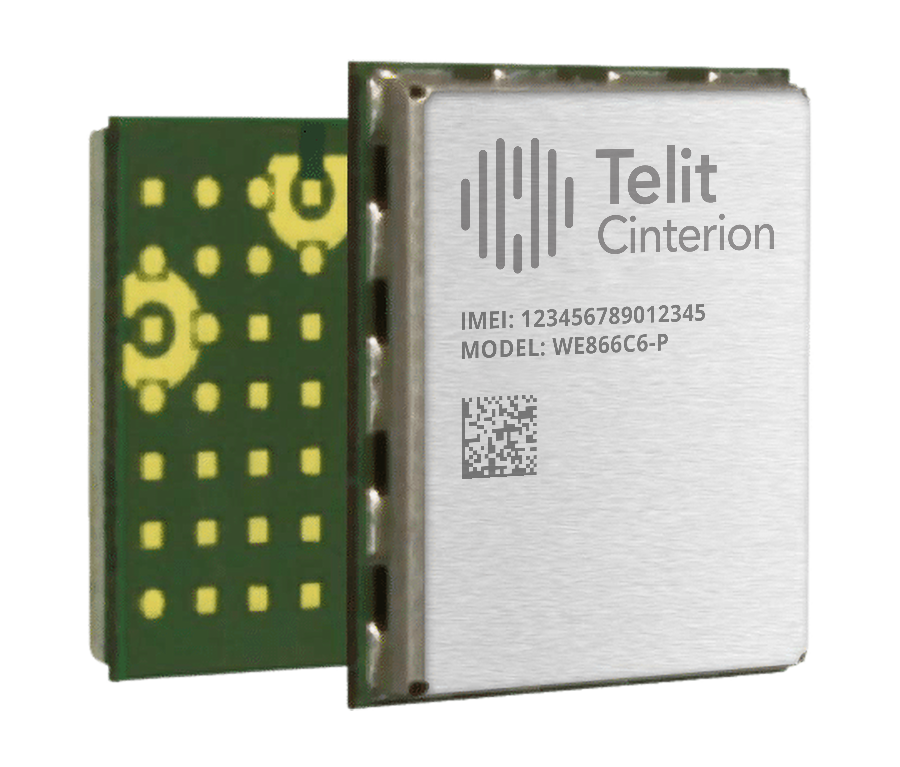

Close-up of a Telit Cinterion electronic component with visible IMEI, model number WE866C6-P, and a QR code on a metallic casing.
Overview
Tech Specs
Downloads
Related Products
Product Brief

Product Description

The WE866C6-P is a dual-band (2.4 and 5 GHz), one-stream (1 x 1) 802.11 ac Wi-Fi and Bluetooth® (Bluetooth®/Bluetooth® Low Energy) module with an extremely small footprint that provides an easy and cost-effective way for manufacturers to add short-range, wireless connectivity to their products. With the integrated LTE-Wi-Fi/Bluetooth® Low Energy coexistence filter, the product offers a powerful cellular backhaul solution with Telit Cinterion’s LE910Cx 4G LTE module family. WE866C6-P also provides a high bandwidth Wi-Fi/Bluetooth® Low Energy transceiver solution for Linux-powered IoT systems.

Form Factor Family

The sub-compact xE866 family is comprised of scaling LGA form factors in 13 x 15 mm and 19 x 15 mm dimensions presented in 7 x 7 or 11 x 7 pad grids respectively.

Overview

Product Features

  • Wi-Fi 802.11 a/b/g/n/ac 2.4 GHz and 5 GHz (20, 40, 80 MHz)
  • Bluetooth®/Bluetooth® Low Energy 5.0
  • Wi-Fi AP/STA/concurrent
  • Bluetooth®Low Energy central/peripheral
  • Integrated LTE-Wi-Fi/Bluetooth® coexistence filter
  • Built-in Wi-Fi/Bluetooth® coexistence
  • Host interfaces: SDIO 3.0 (Wi-Fi), UART (Bluetooth®), PCM/I2S (Bluetooth® Audio)

Certification

  • FCC, ISED, RED, UKCA JATE-JTBL, TELEC-JRL, Anatel, MTC, WPC-ETA
  • Wi-Fi Alliance
  • BT SIG

Hardware Specifications

  • LGA 49 pads
  • Length x width x height: 15 x 13 x 2.2 mm
  • Temperature range: -40° C to +85° C

Electrical Specifications

  • Power supply: 3.3 V

Software Features

  • LTE-Wi-Fi bundling
  • Linux companion

Drivers

  • x86 Linux Drivers
  • ARM32 Linux Drivers
  • ARM64 Linux Drivers
