SE150A4 Series

LTE Cat 4 | Wi-Fi 802.11 a/b/g/n | Bluetooth® Low Energy 4.1

The SE150A4 series is Telit’s first generation of smart modules with Android™ that supports LTE Category (Cat) 4, Wi-Fi and Bluetooth® connectivity, and an embedded GNSS receiver in one package.

  • Pre-certified processing power, rich multimedia experience and reliable wireless connectivity in one package for fast time to market
  • Android for easy application development
  • Exceptional application and system performance based on the quad-core A53 @1.53 GHz 64-bit processor
  • Enhanced mobile rendering APIs for image and video applications via Adreno 308 GPU
  • Powered by two Qualcomm® Hexagon™ QDSP6 v56 @691 MHz
Contact Us

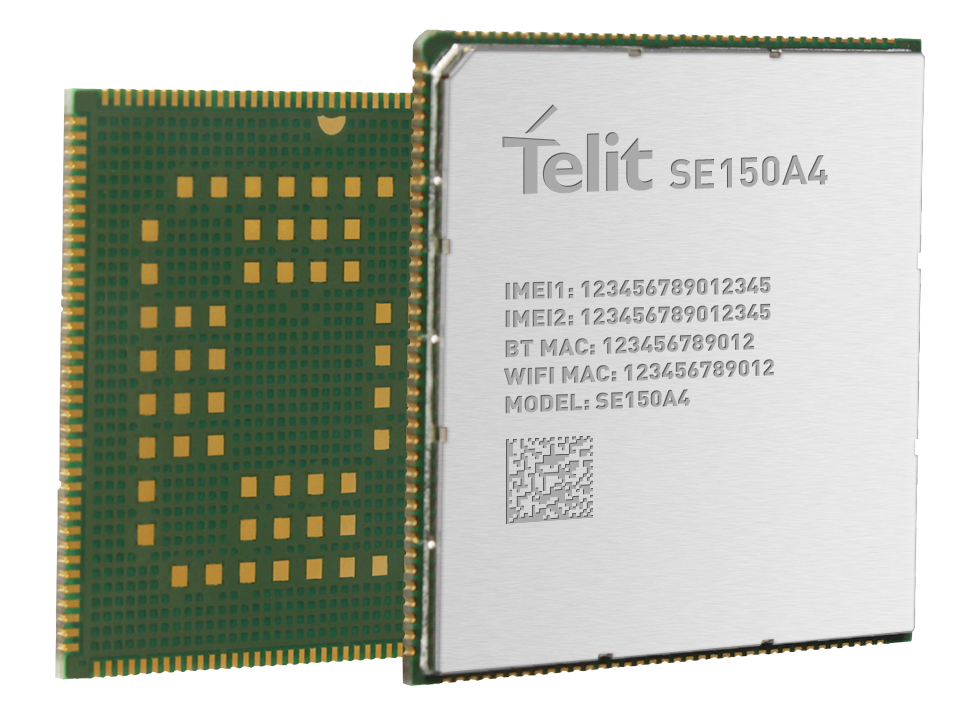

SE150A4_dynamic_977x720
Overview
Specs
Downloads
Related
Product Comparison
Product Brief

Product Description

The SE150A4 series is Telit’s first generation of smart modules with Android that supports LTE Cat 4, Wi-Fi and Bluetooth® connectivity, and an embedded GNSS receiver in one package.

Powered by the Qualcomm quad-core ARM® Cortex®-A53 64-bit processor with built-in Adreno™ 308 GPU, the SE150A4 modules are ideal for industrial and consumer applications requiring high data rates, multimedia functions and edge computing capabilities. They provide interfaces to easily connect to displays, cameras and various sensors and come with high-performance application processing and graphical processing power to boost the next generation of smart IoT devices requiring multimedia capabilities.

Form Factor Family

Hybrid castellated LCC form factor with an LGA grid pad in a convenient 40.5 x 40.5 mm square presentation, delivering easy integration for handheld, desktop or commercial IoT devices.

Overview

Product Features

  • LTE-FDD Cat 4
  • Rx diversity and MIMO DL 2 x 2
  • Single Rx option
  • VoLTE support
  • Wi-Fi IEEE 802.11a/b/g/n
  • Bluetooth® Low Energy 4.1
  • Simultaneous support of GPS, GLONASS, BeiDou and Galileo
  • Android 10 (Q) OS

Certifications

  • FCC/ISED, PTCRB/GCF (SE150A4-NA)
  • RED/GCF (SE150A4-EU)
  • Dimensions: 40.5 x 40.5 mm
  • Hybrid castellated LCC form factor with an LGA grid pad
  • Temperature range: -30° C to +75° C

Supply Voltage Range:

  • Nominal: 3.8 V dc
  • Range: 3.5-4.4 V dc
User Guides, Documentation, Application Notes and Firmware
Register for Downloads Access Downloads

Related Products

SE250B4-2023_dynamic

SE250B4 Series

SE150A4

SE150A4 Series

Product Comparison

SE150A4-NASE150A4-EU
MarketNorth America
(AT&T, Verizon, T-Mobile U.S.)		EU and other regions
LTE-FDDBands 2, 4, 5, 7, 12, 13, 14, 17, 25, 26, 66, 71Bands 1, 3, 5, 7, 8, 20, 28
LTE-TDDBand 41Bands 38, 40, 41
WCDMABands 2, 4, 5Bands 1, 5, 8
GSM/GPRS/EdgeBands
3, 8
