FE990B40

5G/LTE-Advanced

The Telit Cinterion FE990B40 LGA module family enables next-generation, high-performance 5G LGA modules. They feature 5G sub-6 technology with Gigabit LTE and WCDMA support, plus a state-of-the-art multiconstellation GNSS receiver.

This LGA module is ideal for applications that require ruggedized modems that are feature- and interface-rich with a compact footprint. It’s suitable for high-performance enterprise and industrial applications.

  • Available in two regional variants (EMEA and North America) with 5G sub-6 FDD and TDD bands
  • Each regional SKU is available with 2xCA or 3xCA support
  • Supports SA and NSA operations and 5G core network Opt. 3a/3x and Opt. 2 for full network compatibility
  • 4 x 4 MIMO DL support on all bands
  • 4G Category (Cat) 20 up to 5xCA
Connect with Sales Get Your Free SIM Starter Kit

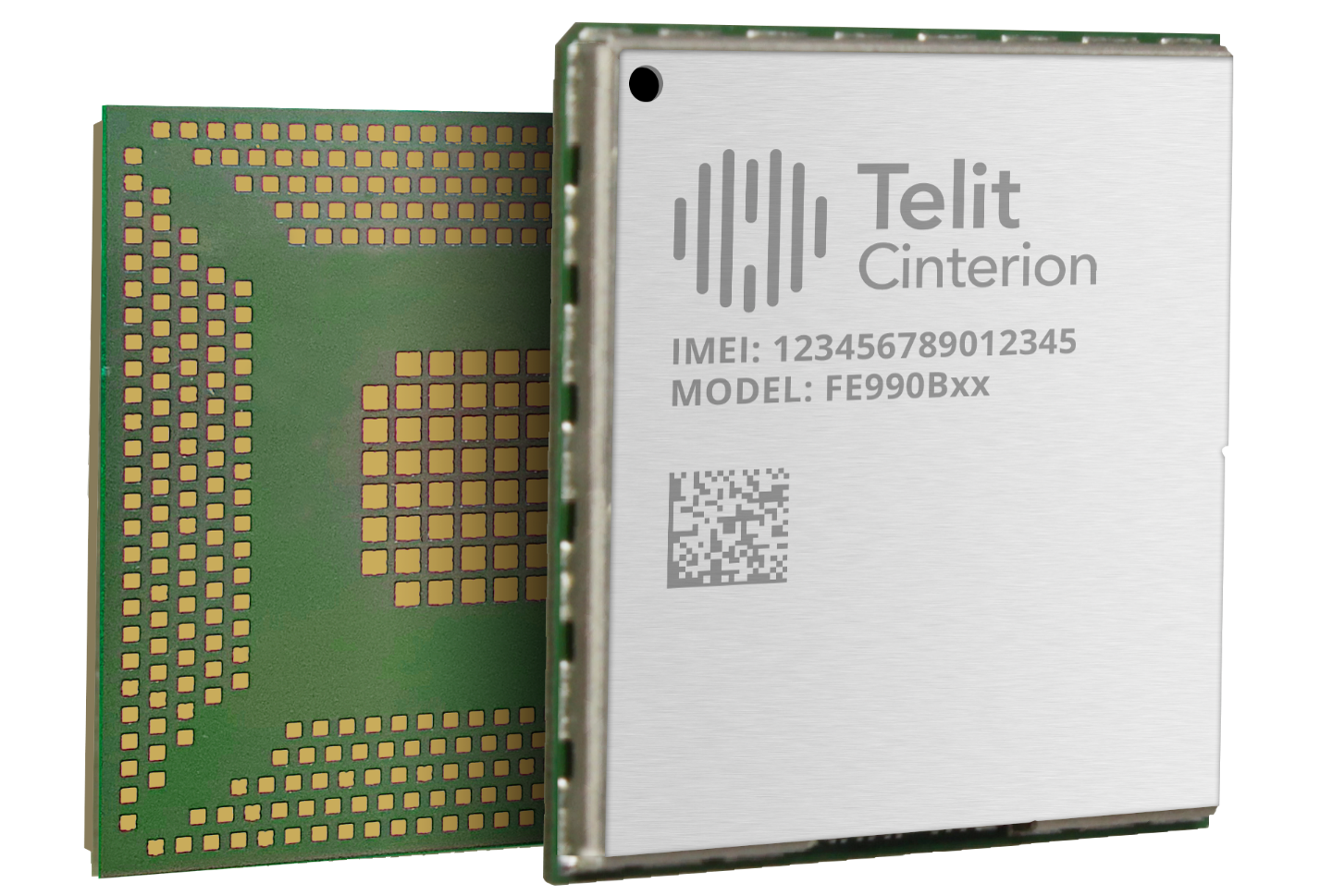

The telit citrion chip on a white background.
Overview
Tech Specs
Downloads
Related Products
Product Brief

Product Description

The Telit Cinterion FE990B40 LGA module enables next-generation, high-performance 5G LGA module. It feature 5G sub-6 technology with Gigabit LTE and WCDMA support, plus a state-of-the-art multiconstellation GNSS receiver.

This LGA module is ideal for applications that require ruggedized modem that are feature- and interface-rich with a compact footprint. It’s suitable for high-performance enterprise and industrial applications.

This module leverages Qualcomm® Snapdragon® X72 5G Modem-RF System and is compliant with 3GPP 5G Release (Rel) 17 5G deployments.

Related Evaluation Kit: EVB 2.0 Module Evaluation and IoT Device Development Kit

Form Factor Family

Compact LGA form factor (41 x 41 x 2.9 mm)

Product Features:

  • 5G sub-6 FDD and TDD, SA and NSA operations
  • 5G core network Opt. 3a/3x and Opt. 2
  • 4G: 5xCA up to 20 layers DL, 2xCA UL; 256-QAM DL/UL
  • 3G: HSPA+ Rel 8; 42 Mbps DL, 11 Mbps UL (-RW variants only)
  • GNSS: gpsOne Gen 9 Band L1 with dedicated antenna pad, L5 support on request
  • Antenna ports: four 5G sub-6/LTE and one GNSS
  • Support of up to three Wi-Fi and two Ethernet transceivers
  • Quad core ARM Cortex A55 @ 2.2 GHz
  • Firmware over-the-air (FOTA) support



Certifications:

FE990B40-RW: Anatel, CE/RED, GCF, Vodafone, Deutsche Telekom, VF*

FE990B40-NA: FCC, IC, PTCRB, AT&T, T-Mobile U.S., Verizon*



*Planned

Dimensions:

  • 41 x 41 x 2.9 mm

Operating Temperature Range:

  • -40° C to +85° C

Data Throughput:

• 5G NSA: up to 4.9 Gbps DL, 0.55 Gbps UL (DL: LTE 8-layer + NR 200 MHz)
• 5G SA: up to 4.1Gbps DL, 0.90Gbps UL (NR 200 MHz)
• 4G: 2 Gbps DL, 210 Mbps UL

  • High-performance quad-core CPU and Linux OpenWRT OS, ideal for router development without an external CPU
  • Telit Cinterion IoT AppZone development environment to allow customers to implement applications that run on the module CPU

Drivers Support:

  • Windows 10
  • Linux
