CMB100X0

LTE Cat. 4, Cat.1 bis and Cat. M1

The CMB100 series marks Telit Cinterion’s inaugural generation of end-device certified LTE modules. With the CMB100, customers can effortlessly integrate dependable LTE connectivity into their products, thereby reducing:

  • Development costs
  • Certification expenses
  • Risks tied to LTE product
  • The need for radio changes and associated recertifications
  • Time to market

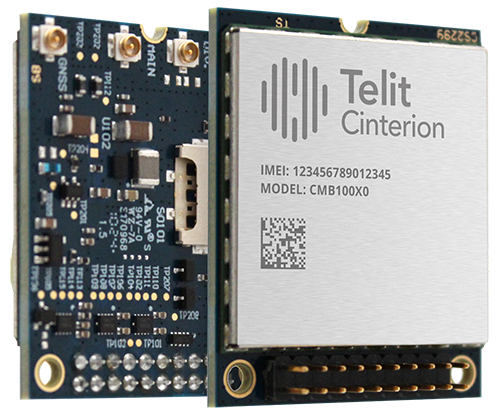

Two Telit Cinterion circuit boards, with one showing various electronic components and the other displaying a metallic shield labeled with an IMEI number, QR code, and model number CMB1000X0.

Product Description

  • Standard Mini berg connector with 20mm
  • Best-in class 3GPP rel10 platform
  • Easy to integrate with peripherals and actuators using USB 0 HS, UART and user-definable GPIOs
  • Wide range of supported power supply 1.8V*-5.5V
  • Battery-friendly 8V GPIO
  • Included GPIO level translation for 3V Systems
  • Ideal platform for IoT applications and mobile data and computing devices with ultra-compact design and extended operating temperature
  • Internet friendly with integrated TCP/IP and UDP/ IP stacks
  • Over-the-air firmware update
  • FCC/IC and RED certified and device certified with major carriers
  • 2G/3G Fallback and GNSS for accurate location services

Form Factor Family

The CMB100 series from Telit Cinterion uses a single mechanical and electrical form factor to support various current and future LTE and 5G technologies. This streamlined, robust design makes it easy for designers to add LTE capabilities to commercial and industrial devices. By eliminating the complexities and challenges of RF design, the CMB100 allows developers to integrate LTE connectivity without needing in-depth knowledge of RF principles and specifications.

Overview

  • CMB100X0 FDD Cat.1/CATM1, 3GPP release 10 compliant
  • CMB100X0 Cat.4, 3GPP release 10 compliant
  • Rx Diversity and MIMO DL 2×2
  • Single Rx option
  • VoLTE support
  • SMS over IMS
  • Built in UDP/TCP/FTP/SMTP stack
  • IPv4/IPv6 stack
  • Control via AT commands according to 3GPP TS 27.005, 27.007 and Telit Custom AT commands
  • SIM application Tool Kit 3GPP TS 51.014
  • OMA-DM Telit Software Management
  • Simultaneous support of GPS, Glonass, Bei-Dou, Galileo, QZSS
  • FCC/IC (North America)
  • RED/GCF (Europe)
  • Dimensions 36 x 30 x 5.5 mm (considering the berg, the height is 8.55 mm)
    20-pin THT interface
  • 10 I/O ports (@1.8V), including multifunctional I/Os
  • USB 2.0 HS / HSIC
  • UART
  • PCM
  • 1.8 V / 3V SIM interface
  • RF pad, RX Div. & MIMO pad
  • Temperature Range Industrial:
    -40°C to +85°C
  • REACH and RoHS compliant
  • Output power
    – Class 3 (0.2 W, 23 dBm) @ LTE
  • Supply voltage range:
    – Nominal: 3.8 VDC
    – Range: 1.8 – 5.5 VDC, 1.8 to 2.5VDC with limitations

The CMB100 family is capable of supporting the extensive suite of Value-Added Services from Telit Cinterion.

  • Centralized Device Management:
  • Zero-touch onboarding
  • Remote provisioning and configuration
  • Monitoring and troubleshooting
  • Module and device FOTA updates Edge Logic
  • Define and build edge device logic
  • Optimize behavior and resource usage



  • Set control logic remotely
  • Simplify edge life cycle management Embedded Security
  • Embedded security at manufacture
  • Encrypted device-to-cloud communications Connectivity and SIM Management
  • Simplified service profile and self-care subscription design and management
  • Real-time diagnostics and controls for SIM and data plan monitoring and management

Enterprise Integration

  • Integrates with third-party business systems
  • Delivers data to enterprise applications
