WE866C6-P Wi-Fi EVKs

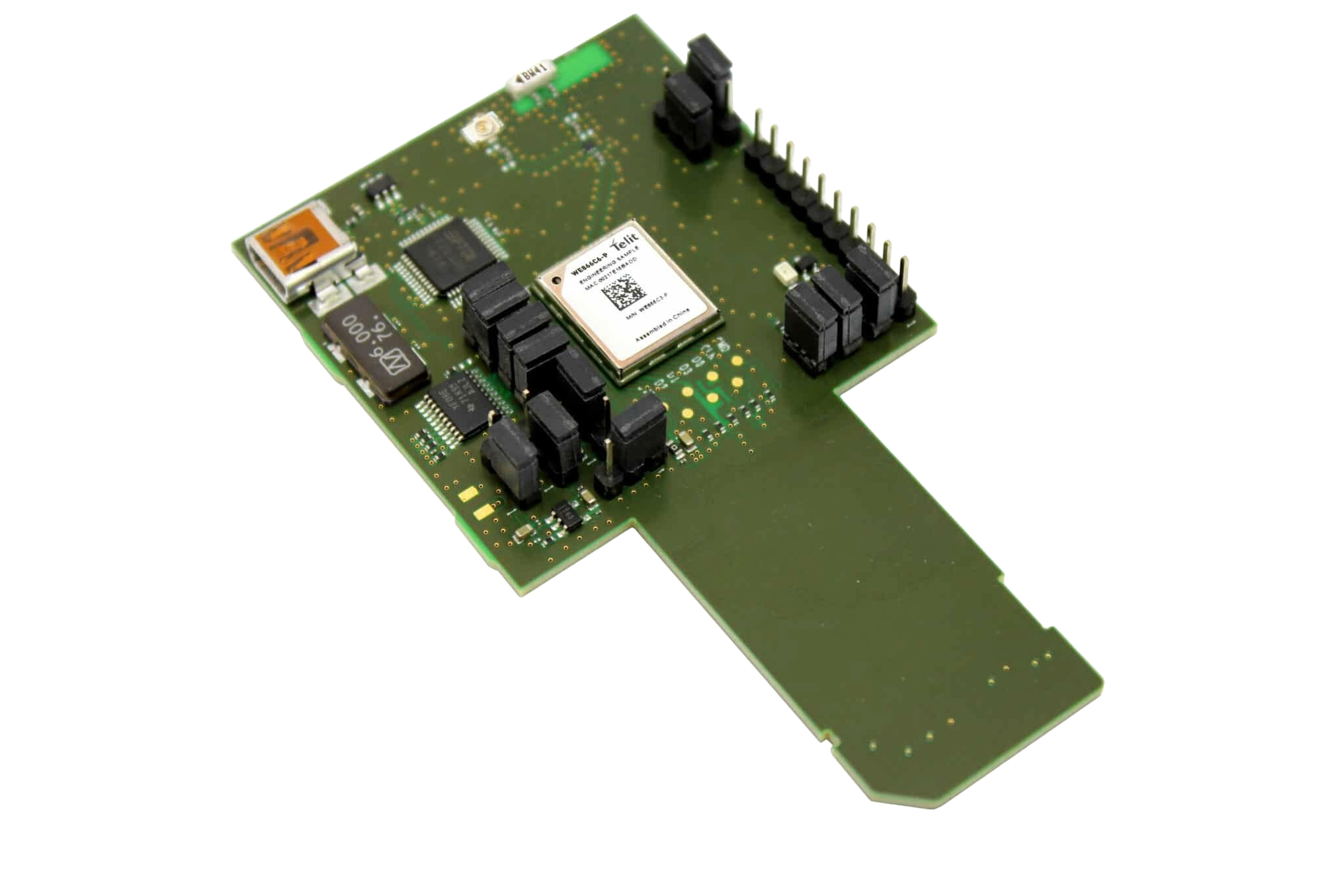

The WE866C6 network interface card (NIC) is designed to facilitate access to all interfaces in the WE866Cx module, to evaluate the Wi-Fi and Bluetooth® wireless technology capabilities of the module with Linux host microcontrollers.

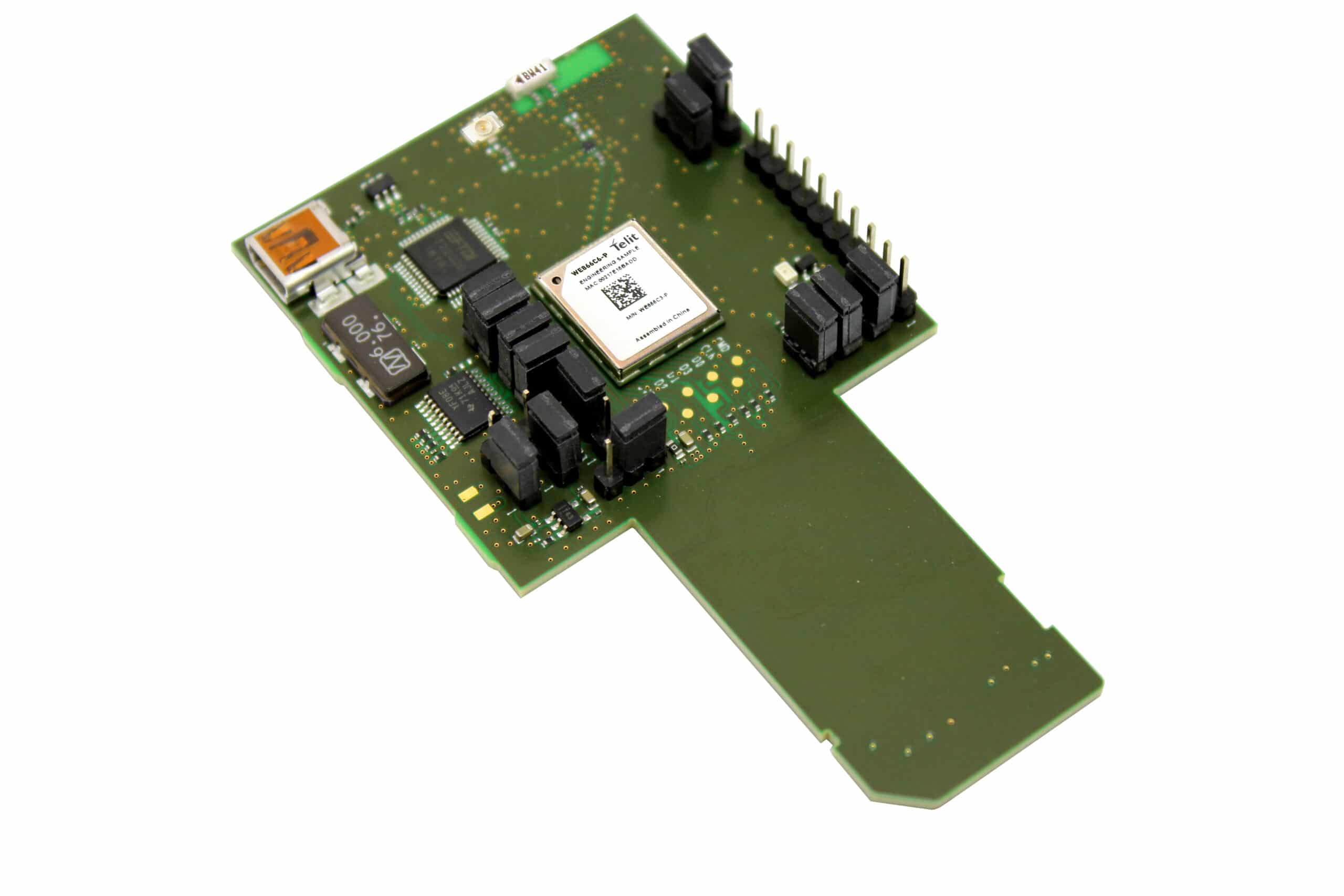

Telit_WE866C6-P_SD_CARD_ADAPTER_3990251905_Dynamic

Key Features

This interface is a tool designed for engineers, programmers, and developers.

  • Mounts the WE866C6-P module with Wi-Fi 802.11 a/b/g/n/ac connectivity and BLE 5.0
  • Export WE866Cx SDIO interface for easy integration with third-party host boards or our EVB 2.0
  • Includes USB-to-UART converter chip to connect the UART interface directly to the host USB port
  • Gives the option to evaluate external antenna via uFL connector
  • Supports two power supply voltage (1.8 V or 3.3 V)

WE866C6-P M.2 Interface Adapter

The M.2 Card provides customers with the means to evaluate the WE866Cx Wi-Fi and Bluetooth technology module capabilities using a standardized form factor.
Furthermore, it is designed to work in combination with the LE910Cx module family (mounted on an interface board) via an evaluation board (i.e., EVB 2.0). This will give developers the possibility to expand the LE910Cx connectivity offering with short-range technologies.

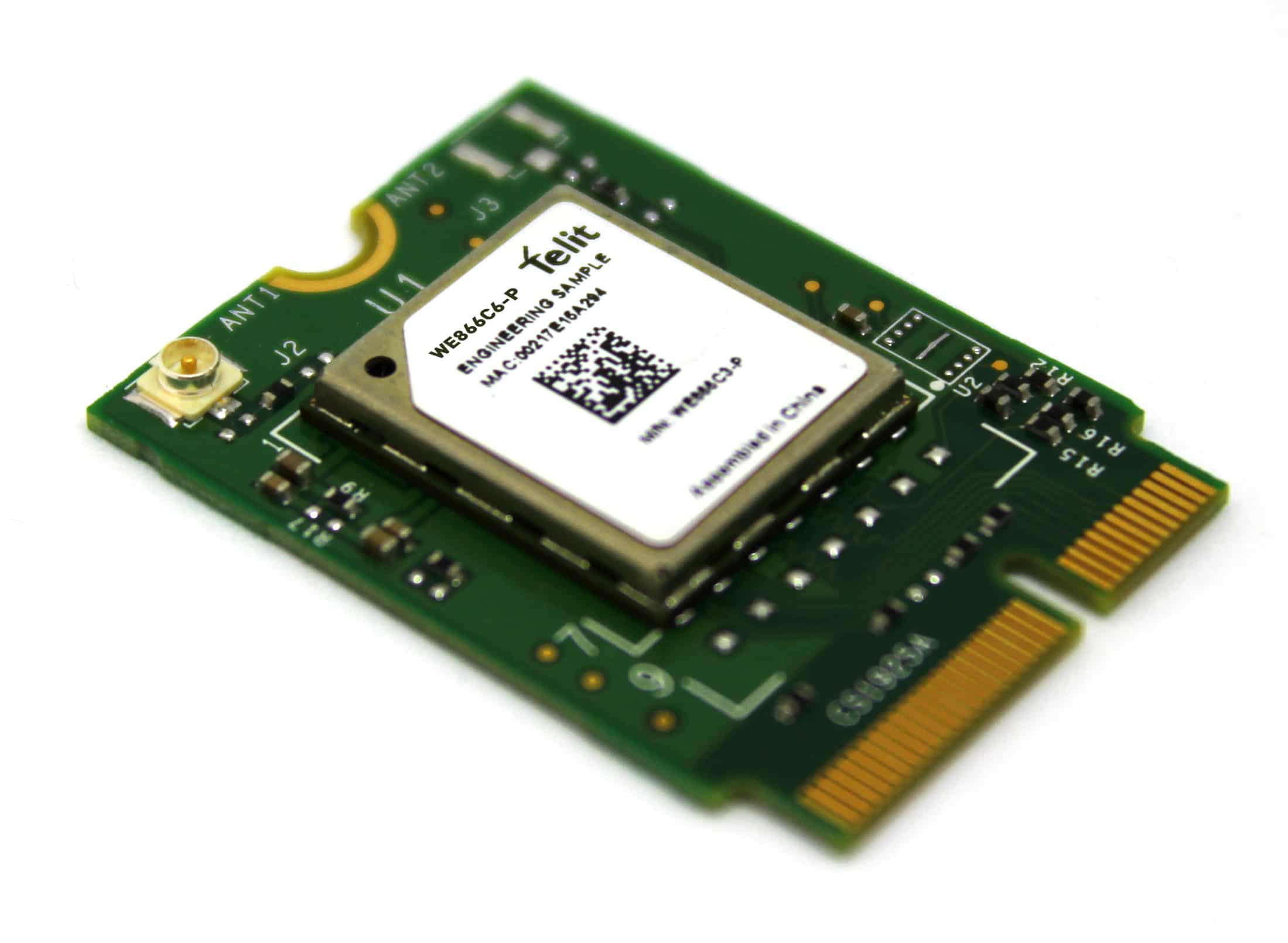

Telit_M2_Adapter_WE866C6-P_3990252034_Dynamic

Key Features

This interface is a tool designed for engineers, programmers and developers.

  • Mounts the WE866C6-P module with Wi-Fi 802.11 a/b/g/n/ac connectivity and Bluetooth Low Energy 5.0 technology
  • SDIO based Socket 1/230 size type/Key Type E
  • Includes a U.FL miniature RF connector to add external antenna
  • Expands LE910Cx connectivity with Wi-Fi and Bluetooth wireless technology
User Guides, Documentation, Application Notes and Firmware
Register for Downloads Access Downloads

Request Your Kit Today

Start evaluating and prototyping your next IoT connected device.
