Mobile Broadband mPCIe and M.2 Data Cards

Cellular Broadband Connection

For Your Gateways, Routers, Network Appliances and Cellular SD-WAN Applications

Find the right mobile broadband products for your routers and gateways.

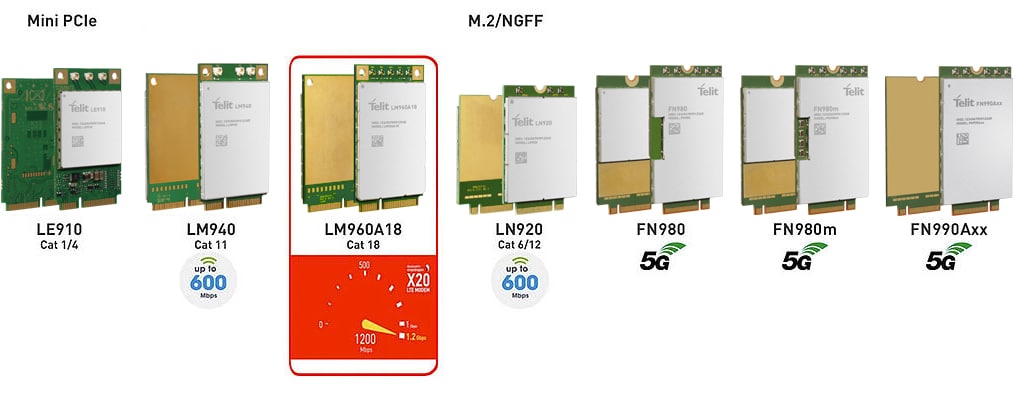

5G Data Cards

Start designing your devices for 5G with our data cards based on Qualcomm® Technologies’ innovations plus antenna modules with integrated RF transceiver, RF front-end (RFFE) and antenna elements.

These data cards are ideal for bandwidth-intensive applications that benefit from speeds in the 7 Gbps range and are compatible with the industry-leading LM960A18 Gigabit LTE data card. Such applications include:

  • Enterprise network appliances
  • Branch and remote office routers
  • Fixed wireless broadband internet access

FN990Axx

The FN990Axx module series is a natural evolution of our FN980 series. These M.2 5G modules are powered by the Snapdragon® X65 and X62 Modem-RF systems and 3GPP Release (Rel) 16 compliant. The FN990Axx series will enable mission-critical and latency-sensitive applications (e.g., smart manufacturing and private 5G networks).

  • 5G sub-6 FDD and TDD for global deployment
  • SA and NSA operations, 5G core network Opt. 3a/3x and Opt. 2 for full network compatibility
  • 4G Cat 20 up to 7 DL CA on the FN990A40
  • 4G Cat 19 up to 5 DL CA on the FN990A28
  • Standard M.2 (NGFF) data card form factor

The modules in this series are available with LTE and WCDMA fallback:

  • FN990A28: Sub-6: 120 MHz, 2CC CA
  • FN990A40: Sub-6: 200 MHz, 3CC CA

FN980 and FN980m

Our FN980 and FN980m data cards enable a new generation of 5G state-of-the-art data cards featuring sub-6 and mmWave (FN980m only) technologies with support for LTE, WCDMA and GNSS.

Industrial-grade M.2 form factor suitable – among others – for the following applications: high-power fixed wireless access, enterprise routers and gateways, indoor/outdoor CPE, video broadcasting and surveillance. Support of Qualcomm QTM525 and QTM527 mmWave antennas and powered by the Snapdragon X55 Modem-RF system.

  • Standard M.2 (NGFF) data card form factor
  • Support of 5G sub-6 FDD and TDD and mmWave
  • Support of SA and NSA operations, 5G core network Opt. 3a/3x and Opt. 2
  • 4G/5G Rel 15
  • 4G Cat 20 up to 7xCA and 3G HSPA+ Rel 18

LM960A18

Gigabit LTE Cat 18 data card. Our LM960A18 is the world’s first global full-size mini PCI Express card (mPCle) available for enterprise cellular routers and appliances. This global, 23-band product, supporting LTE Advanced Category (Cat) 18 has download speeds of up to 1.2 Gbps and five-band fallback to 3G. Powered by Snapdragon X20 LTE modem.

  • LTE Cat 18: Exceptionally high-speed with data rates of up to 1.2 Gbps download and 150 Mbps upload
    • 5xCA for increased data rates
    • Up to 1200 Mbps DL w/5xCA, 4 x 4 MIMO and 256-QAM
    • Up to150 Mbps UL w/ 64-QAM and UL CA
  • LTE FDD Bands: B1, B25 (B2), B3, B66 (B4), B26 (B5), B7, B8, B12 (17), B13, B14, B20, B28, B29 (DL), B30, B32 (DL), B71
  • LTE TDD Bands: B38, B39, B40, B41, B42, B46 (DL), B48
  • 3G Bands: B1, B2, B4, B5, B8
  • Full GNSS support: GPS, GLONASS, Galileo, BeiDou
  • USB 3.0

LM940

First in its class embedded with Qualcomm Snapdragon X12 LTE Modem supporting download speeds of up to 600 Mbps.

  • LTE Cat 11 DL/Cat 5 UL Rel 10
    • 3xCA leverages extended capabilities of the network for increased coverage and bandwidth
    • Up to 600 Mbps DL w/3xCA and 256-QAM
    • Up to 75 Mbps UL w/ 64-QAM
  • HSPA+ Rel 8
  • Quad-constellation integrated GNSS
  • Full-size, single-sided mPCIe form factor (50.95 x 30 x 2.8 mm) LN920

LN920

The LN920 is an M.2 (NGFF) compact data card with versions available in Categories 6, 12 and 13 worldwide. They are pre-certified by Tier 1 operators and ideal for mobile computing and IIoT gateways and routers.

  • Powered by the Qualcomm Snapdragon X12+ LTE modem
  • Supports bands between 600 MHz and 3.7 GHz, including CBRS (Band 48) and FirstNet (Band 14)
  • LTE Cat 12 (3xCA and 600 Mbps DL/150 Mbps UL) and Cat 6 (300 Mbps DL/50 Mbps UL)
  • Embedded GNSS positioning and navigation

xE910 mPCIe

Variants of industrial-grade mPCIe cards.

  • Cat NB1 (250 Kbps DL/20-250 Kbps UL)
  • Cat M1 (300 Kbps DL/375 Kbps UL)
  • Cat 1 (10 Mbps DL/5 Mbps UL)
  • Cat 4 (150 Mbps DL/50 Mbps UL)

Find out if these or other data cards from our portfolio are right for you. Complete the form to request a sample today.
