SE868K5-RTK High-Precision GNSS Evaluation Kit

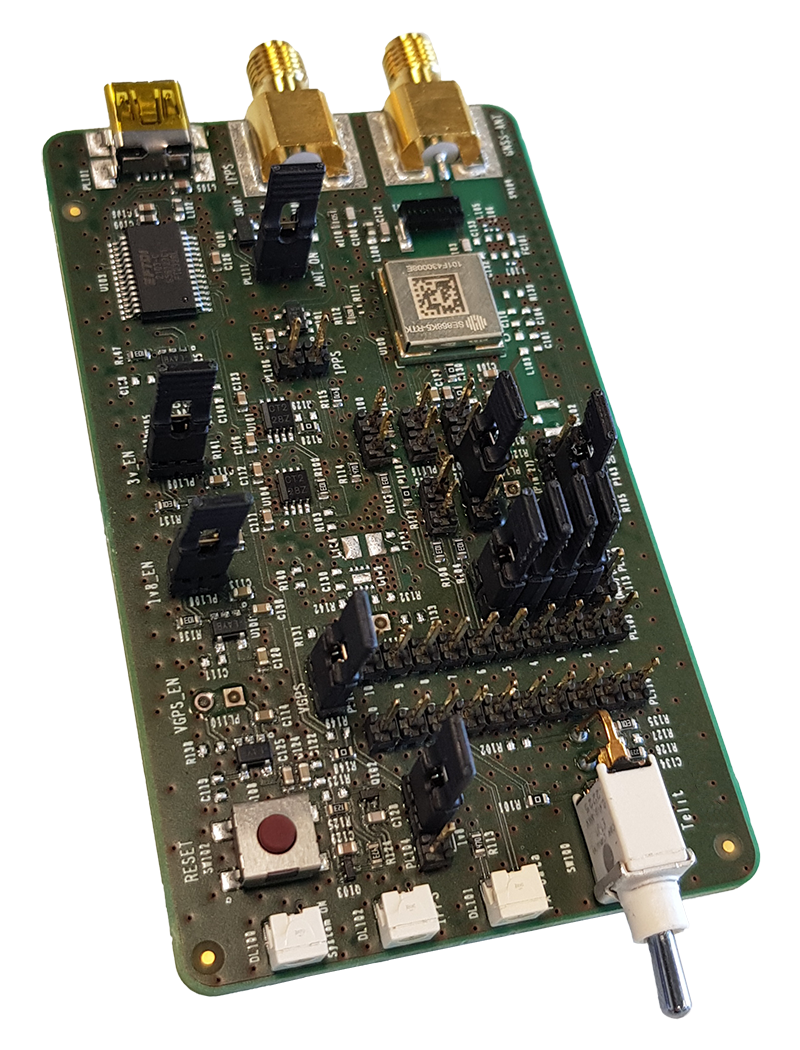

A green printed circuit board featuring various integrated circuits, connectors, and components including a white switch and gold connectors on the top edge.

The SE868K5-RTK multifrequency and multiconstellation module offers real-time kinematic (RTK) support for high precision and includes:

  • GPS/QZSS and Galileo in the L1/E1 and L5/E5 bands
  • GLONASS in the L1 band
  • BeiDou in the B1 and B2 bands

This module provides improved performance for position reporting and navigation solutions. Using two frequencies (L1/E1 and L5/E5), the SE868K5-RTK enhances location accuracy and reduces multipath effects in urban areas.

The SE868K5-RTK high-precision evaluation kit (EVK) enables testing the module’s functionalities and performance. In addition, the module can achieve centimeter-level accuracy by injecting external corrections (RTCM format) through our test tool or bundled with a cellular module.

This GNSS EVK includes:

  • SE868K5-RTK evaluation board
  • A USB-A/mini USB cable
  • A dual-band, L1+L5 active antenna

Complete the kit with the TelitView© Software available in the download section below.

Contact our sales or technical support teams to evaluate RTK performance (Skylark Nx-RTK) through our service partner, Swift-Navigation.

User Guides, Documentation, Application Notes and Firmware

Request Your Kit from Telit Cinterion Today

We’ve pioneered IoT products and solutions for over 20 years. Start evaluating and prototyping your next high precision position-aware device.
