Antenna System Design

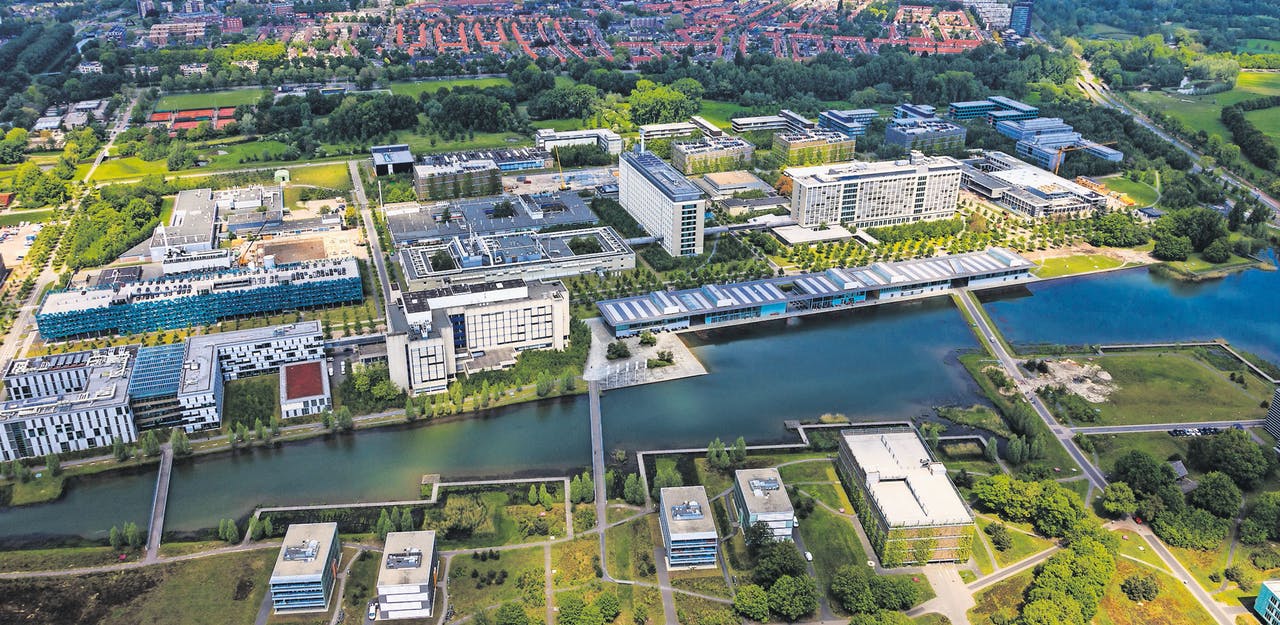

An aerial view of a campus near a river with an antenna.

The Antenna Company is a trusted antenna system design partner for Telit ODM and OEM customers. Its design and deliver high-performance antenna systems that enable our customers to achieve market-leading performance for 5G, enterprise, consumer and IoT applications.

  • Over 50 patents in antenna performance
  • Headquarters and R&D are in Eindhoven, Netherlands
  • Sales offices in the U.S. (San Diego) and Taiwan with the design center support lab
  • ISO 9001 and 14001 certified

Standard and Custom Antenna Solutions

Our partnership aids Telit customers with integrating an optimized antenna solution that satisfies regulatory requirements and ensures a faster time-to-market. The Antenna Company supplies antenna solutions for Telit’s development and evaluation kits. It has multiple custom, semi-custom and commercial off-the-shelf (COTS) antenna options.

Within the IoT market segment, Antenna Company serves the following vertical markets:

The Antenna Company primarily serves customers in North America, European Union and Taiwan. Product capability includes standard and customized solutions for Wi-Fi, Bluetooth® (BLE), GNSS, LTE, NB-IoT and 5G technologies. The Antenna Company supports Telit’s entire module portfolio:

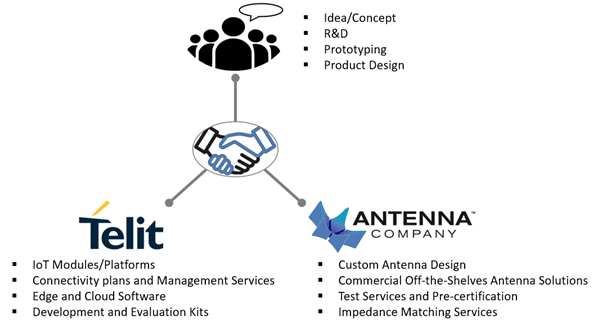

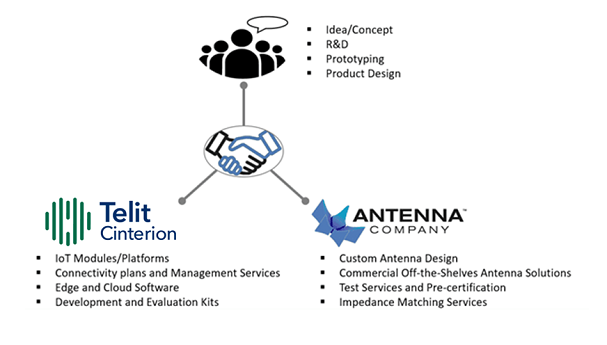

Graphic with three logos and text, illustrating services: telit criterion offers connectivity solutions, a center logo depicting idea to product process, and antenna company provides antenna solutions.

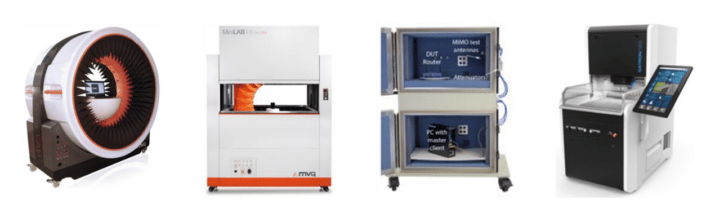

Design and Test Services

The Antenna Company provides design and test services to customers in their Eindhoven office. They offer extensive capabilities for antenna prototyping, verification and system testing. With their support, customers can achieve a competitive advantage in overall system performance, shorter time-to-market, and first-pass operator certification.

Services and capabilities include:

  • Computational workstation cluster for electromagnetic simulations
  • Passive antenna testing in the frequency range of 650 MHz to 18 GHz
  • TRP and TIS evolution of 4G and 5GNR communication systems
  • TPUT measurement of IEEE 802.11ac Wi-Fi communication systems
  • Laser structuring of printed antennas and circuits
  • 3D printing of plastic parts and CNC milling of metal (copper and steel) structures

Partner Showcase

A black box with a blue light, designed by an antenna company.

AC94541

Multiband LTE Antenna for Smart Utility Applications

  • Terminal antenna designed for indoor and outdoor conditions
  • Excellent Multiband coverage: 410-470MHz, 600-960MHz and 1700-3800MHz
  • Optimized performance at 410MHz to 470MHz
  • VSWR ≤ 2.0 :1
  • Efficiency up to 90%
  • Peak Gain ≤ 2dBi
  • Weatherized assembly for outdoor installation  (IP67 and IK10 rated)
  • RoHS and REACH compliant

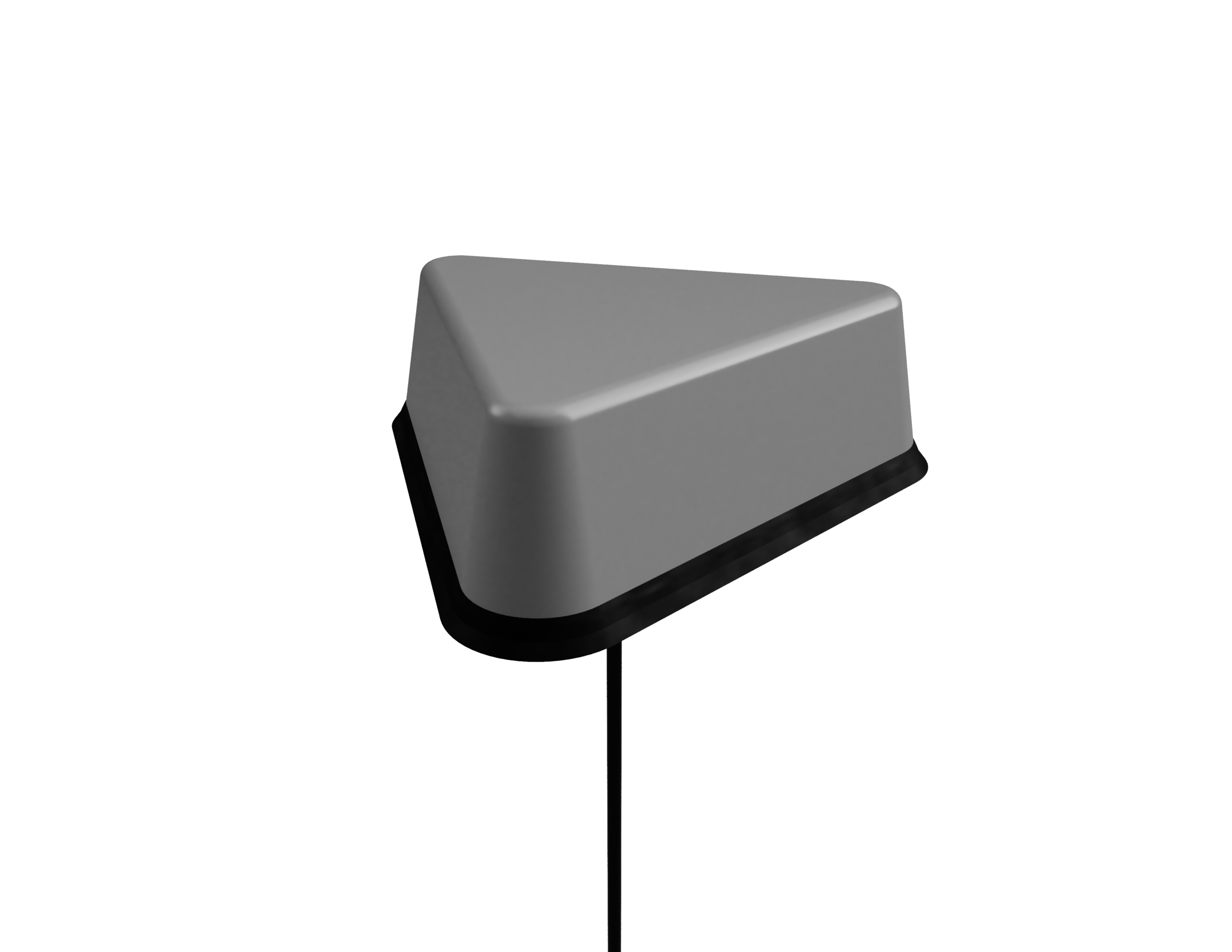

A grey triangle on a black background is displayed by Antenna Company.

AC94500

Low Profile Multi-Band LTE Antenna for Smart Utility Applications

  • Low profile and low visibility antenna with M18 threaded spigot for metallic surface mounting
  • Excellent multi-band coverage including 450-470MHz, 700-960MHz and 1700-4000MHz
  • Optimized performance at 450MHz to 470MHz
  • VSWR ≤ 1.5 :1
  • Efficiency up to 83%
  • Peak Gain ≤ 4dBi
  • Weatherized assembly for outdoor installation  (IP67 and IK10 rated)
  • RoHS and REACH compliant

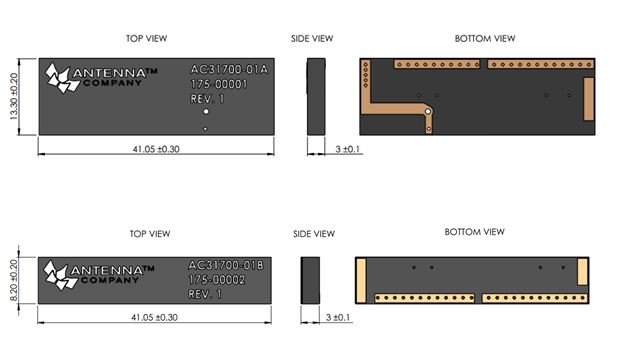

A diagram showing the different parts of a PCB for an antenna company.

AC31700-01A and AC31700-01B

High Efficiency 4G/5G Wide-Band Antennas for IoT Devices with Small Ground Planes

  • High-efficiency, wide-band antenna covering 698 to 6000 MHz
  • Outstanding performance in standalone configuration on host PCBs with ground plane lengths exceeding 80mm
  • Dual configuration delivers excellent efficiency in applications with ground plane lengths ranging from 30mm to 80mm
  • Quasi-omnidirectional radiation pattern offering uniform coverage
  • Low profile component implemented on rigid PCB with 3mm height for ease of integration
  • Surface mount device suitable for automated assembly (SMT process).  Supplied on Tape & Reel.
  • RoHS and REACH compliant
