FE910C04 mPCIe

5G Rel 17 / LTE Cat 4

The FE910C04 mPCIe enable 5G mid-speed connectivity relying on the latest 3GPP Release 17 RedCap technology. It levels up performance and efficiency compared to LTE, promising the highest level of flexibility by offering customers to move to a secure 5G future easily.

The FE910C04 mPCIe is industrial grade, rugged, suitable for global use, with enhanced uplink performance, power saving features, and with LTE Cat 4 fallback for best coverage.

RedCap fills the gap between high-speed mobile broadband devices and extremely low-bandwidth devices
First generation 5G RedCap IoT modules offer worldwide coverage with LTE Cat 4 fallback and flexible form factors
The module integrates perfectly with Telit Cinterion connectivity and services, encompassing NExT™ data plans, connectivity activation, AppZone and OneEdge™

Connect with Sales Get Your Free SIM Starter Kit

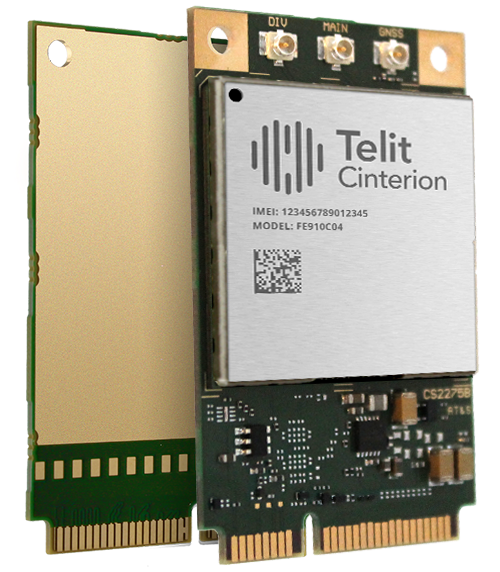

A close-up of a Telit Cinterion electronic module with visible circuit board, connectors, and labeled IMEI and model information.

Overview

Tech Specs

Downloads

Related Products

Product Brief

Product Description

Resilient, low latency, mid-speed 5G for the future intelligent edge, the FE910C04 mPCIe enables performance and efficiency improvements, promising an easy migration from existing LTE to a secure and lasting 5G future.

The FE910C04 mPCIe relies on the latest 3GPP Release 17 Redcap technology, features a compact, industrial grade, rugged design and is suitable for global use with fallback to LTE Cat 4 for best possible coverage.

Optional eSIM onboard for seamless 5G connectivity
Secure by design, strengthened core functions for improved end-to-end security
Added interfaces for maximizing platform leverage
Powered by Telit Cinterion’s value added services, encompassing NExT™ data plans, connectivity activation, AppZone processing and OneEdge™ services

RedCap fills the gap between enhanced mobile broadband (eMBB) devices and extremely low-bandwidth, massive Machine Type Communication (mMTC) devices.

Applications:

Video surveillance and monitoring
Industrial Routers and Gateways
EV Charging infrastructure
Machine Telematics

Related Evaluation Kit: EVB 2.0 Module Evaluation and IoT Device Development Kit

Form Factor Family

Longevity and cost efficiency are built right into the developer’s product architecture with the Telit Cinterion family “design once, use anywhere” philosophy.

Designers looking to add LTE capabilities to commercial and industrial computing devices benefit from the simple yet powerful mPCIe form factor. It provides the option to choose another technology best suited for the application environment from any one of the other models in the xE910 mPCIe series.

Product Features:

5G Sub.6 FDD and TDD operation in 5G NR stand-alone
– DL: 223 Mbps
– UL: 123 Mbps
LTE Cat 4
– DL: 200 Mbps
– UL: 105 Mbps
Rx Diversity and MIMO DL 2×2
VoLTE/VoNR Support
SMS over IMS
Built in UDP/TCP/FTP/SMTP stack
IPv4/IPv6 Stack
Control via AT commands according to 3GPP
TS 27.005, 27.007 and Telit Custom AT Commands
SIM application Tool Kit 3GPP TS 51.014
OMA-DM Telit Software Management
Simultaneous support for GPS, GLONASS, BeiDou, Galileo, QZSS

Certifications:

Regulatory/Industry Certifications:

FCC, CE/RED, ISED, RCM, NCC*, JATE-TELEC*, GCF/PTCRB

Carrier Certifications:

AT&T incl. FirstNet, T-Mobile US, Verizon, Vodafone*, Telstra*, KDDI*, NTT Docomo*, Softbank*

*planned

Dimensions:

51 x 30 x 3.6 mm

Operating Temperature Range:

-40° C to +85°C

Electrical specifications:

USB 2.0 HS / HSIC interface up to 480 Mbps
PCIe Gen2.0, also for external WiFi/BT connectivity
SGMII for external ethernet transceiver
Serial/peripheral interfaces – SPI, I2C, UART
Audio interface – I2S/PCM
GPIOs
2x Dual voltage 1.8/3V USIM interfaces
Optional eSIM
RF pad, RX Div. & MIMO pad
GNSS pad
Supply Voltage Range: 3.4 – 4.2V

Connectivity Plans and Services

NExT™ powered by Telit Cinterion is a cloud native core network. Telit Cinterion is a full tier 1 MVNO, enabling new and enhanced turnkey connectivity plans and device management services. With this IoT network, you can deploy powerful, intelligent Global roaming with multi -IMSI and localization capabilities (eUICC) on more than 600 mobile carriers in 200+ countries in 2G/3G/4G/CAT-M/NB-IoT & 5G. The NExTPro our Connectivity Management Portal
provides full visibility, monitoring & analytics.
In addition, Telit Cinterion offers Connectivity Activation, a remote SIM provisioning service that leverages latest eSIM technology to simplify and optimize connectivity provisioning and M(V)NO selection. Connectivity Activation digitalizes SIM provisioning and makes the IoT journey seamless and efficient for your devices, from the factory to the last day of operation.
